All diagrams for this model

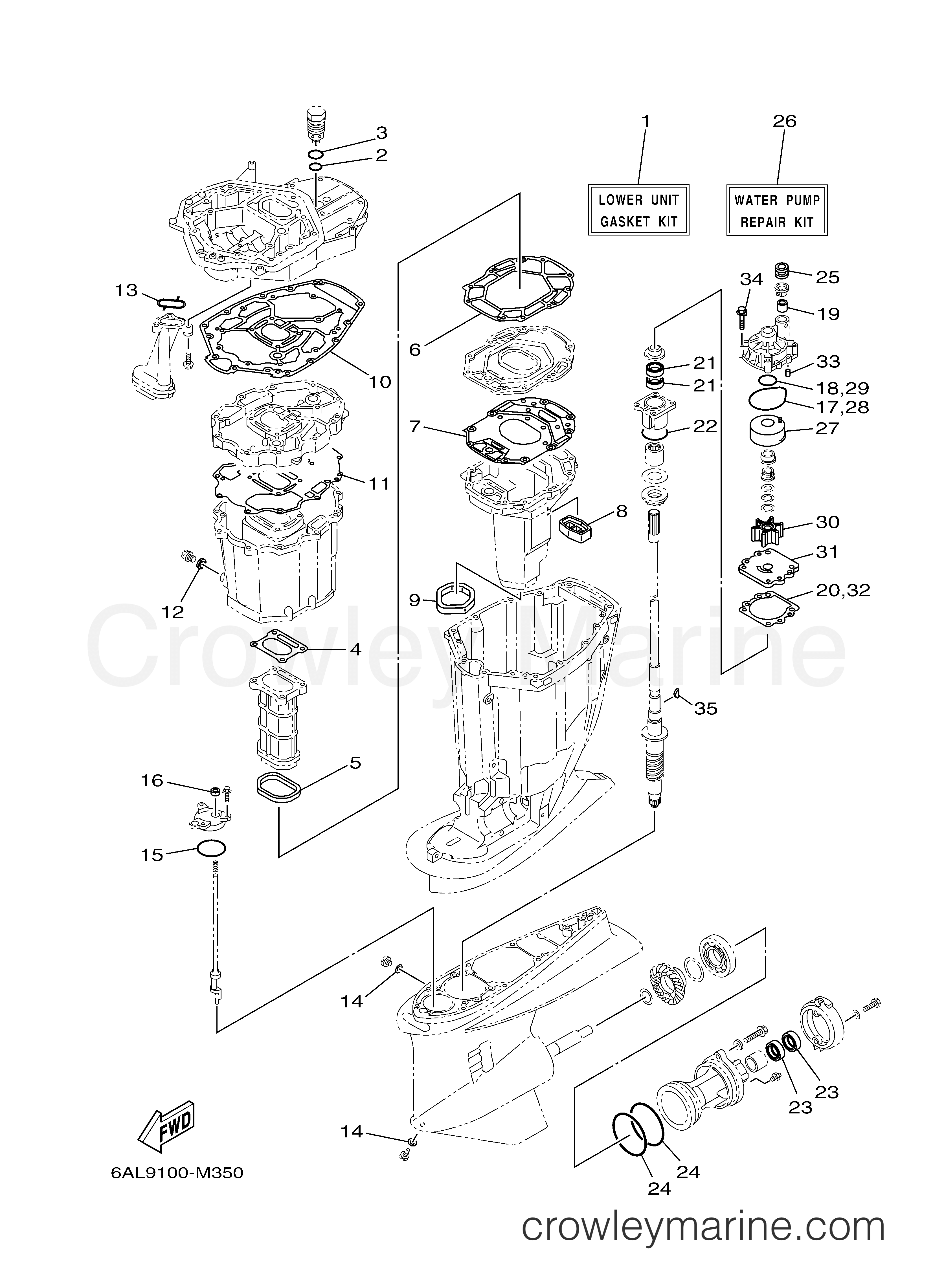

2014 Outboard 200hp - F200XA REPAIR KIT 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors F200XA - REPAIR KIT 2
Change View:
LOWER UNIT GASKET KIT
1
Yamaha Motors
LOWER UNIT GASKET KIT69J-W0001-24-00
Required: 1
LOWER UNIT GASKET KIT
Supersedes: 69J-W0001-22-00
Cross Ship
Leaves in 2-5 days
$264.60
$224.95
You save $39.65
More details
O-Ring
3
Yamaha Motors
O-Ring93210-347A1-00
Required: 1
.O-RING
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Exhaust Manifold Gasket
4
Yamaha Motors
Exhaust Manifold Gasket6P2-41134-00-00
Required: 1
.GASKET, EXHAUST MANIFOLD
Cross Ship
Leaves in 2-5 days
$3.05
$2.59
You save $0.46
More details
Seal Ext
5
Yamaha Motors
Seal Ext69J-41138-00-00
Required: 1
.SEAL, EXT 1
Cross Ship
Leaves in 2-5 days
$10.25
$8.71
You save $1.54
More details
Exhaust Manifold Gasket
6
Yamaha Motors
Exhaust Manifold Gasket69J-41135-A0-00
Required: 1
.GASKET, EXHAUST MANIFOLD
Cross Ship
Leaves in 2-5 days
$9.65
$8.20
You save $1.45
More details
.GASKET, EXHAUST MANIFOLD 4
7
Yamaha Motors
.GASKET, EXHAUST MANIFOLD 469J-41136-A0-00
Required: 1
.GASKET, EXHAUST MANIFOLD 4
Supersedes: 6S1-41136-00-00
Cross Ship
Leaves in 2-5 days
$14.60
$14.18
You save $0.43
More details
Muffler Gasket
9
Yamaha Motors
Muffler Gasket69J-45123-00-00
Required: 1
.GASKET, MUFFLER
Cross Ship
Leaves in 2-5 days
$4.40
$3.74
You save $0.66
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
