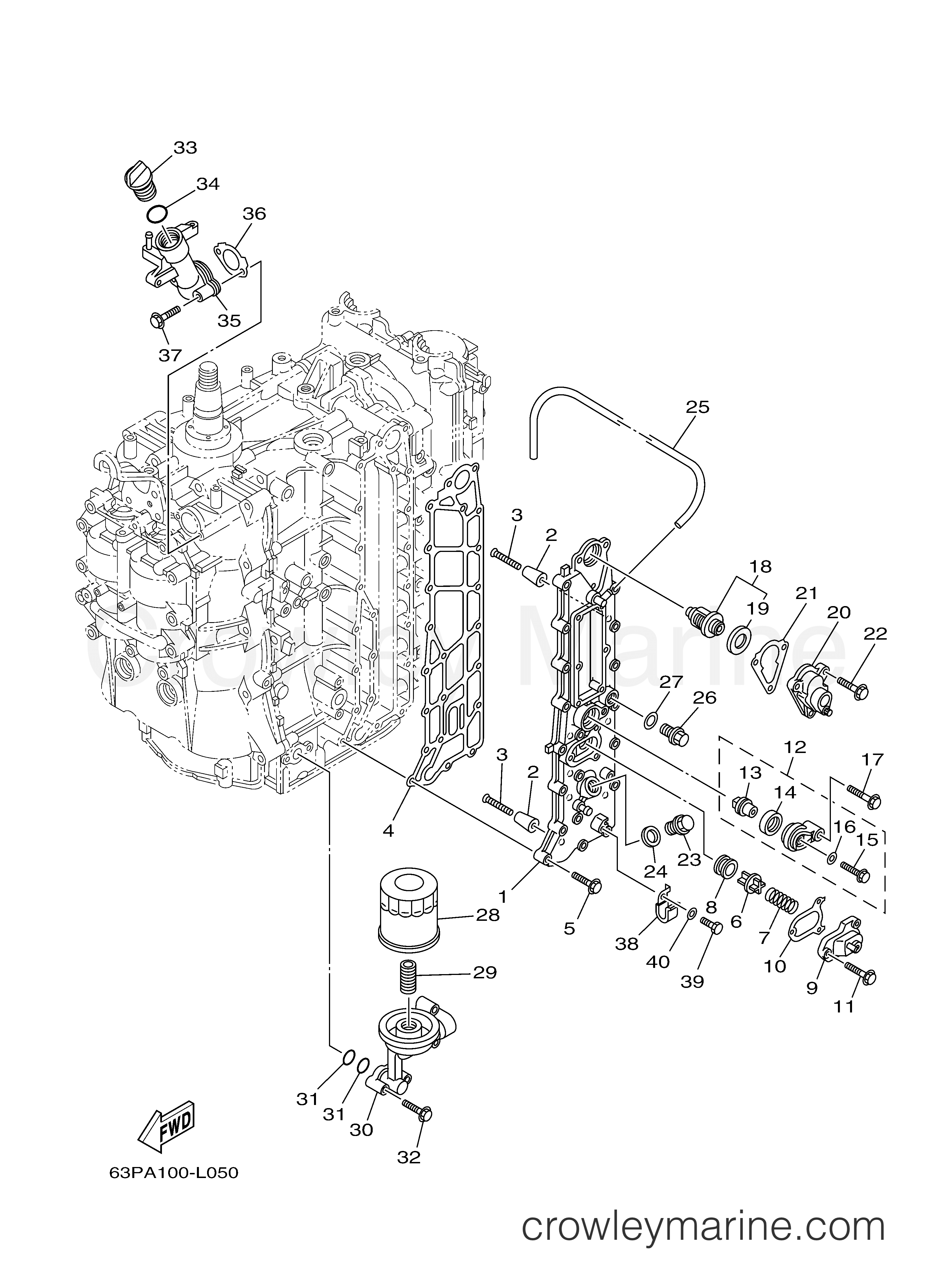

2014 Outboard 150hp - F150JA CYLINDER CRANKCASE 3 diagram
1
Yamaha Motors
Exhaust Outer Cover63P-41113-04-9S
Required: 1
OUTER COVER, EXHAUST
Supersedes: 63P-41113-03-9S
$278.38
You save $49.13
In stock
5+ in stock
$9.78
You save $1.72
3
Yamaha Motors
Countersunk Screw90151-05M05-00
Required: 8
SCREW, COUNTERSUNK
In stock
5+ in stock
$2.72
You save $0.48
4
Yamaha Motors
Exhaust Outer Cover Gasket63P-41114-A3-00
Required: 1
.GASKET, EXHAUST OUTER COVER
Supersedes: 63P-41114-A2-00
In stock
Only 4 remaining
$27.71
You save $4.89
5
Yamaha Motors
Bolt with Washer90119-06MA4-00
Required: 19
BOLT, WITH WASHER
In stock
Only 1 remaining
$3.74
You save $0.66
6
Yamaha Motors
PRESSURE CONTROL VALVE6G5-12416-00-00
Required: 1
VALVE, PRESSURE CONTROL
In stock
Only 5 remaining
$11.69
You save $2.06
7
Yamaha Motors
Compression Spring90501-16M11-00
Required: 1
SPRING, COMPRESSION
In stock
5+ in stock
$6.46
You save $1.14
In stock
5+ in stock
$3.74
You save $0.66
9
Yamaha Motors
Cover67F-1246A-A0-9S
Required: 1
COVER 1
Supersedes: 67F-1246A-01-9S
$21.68
You save $3.82
In stock
Only 3 remaining
$5.74
You save $1.01
11
Yamaha Motors
Bolt with Washer90119-06MA2-00
Required: 3
BOLT, WITH WASHER
In stock
5+ in stock
$2.72
You save $0.48
12
Yamaha Motors
ANODE COVER ASSY69J-11301-02-00
Required: 1
ANODE COVER ASSY
Supersedes: 69J-11301-00-00
In stock
Only 2 remaining
$38.55
You save $6.80
13
Yamaha Motors
ANODE6ML-11325-00-00
Required: 1
.ANODE
Supersedes: 67F-11325-01-00
In stock
Only 3 remaining
$15.47
You save $2.73
14
Yamaha Motors
Anode Grommet67F-11328-01-00
Required: 1
.GROMMET, ANODE
Supersedes: 67F-11328-00-00
In stock
5+ in stock
$3.23
You save $0.57
15
Yamaha Motors
Flange Bolt90105-06M07-00
Required: 1
.BOLT, FLANGE
In stock
5+ in stock
$1.96
You save $0.35
In stock
Only 4 remaining
$3.10
You save $0.55
17
Yamaha Motors
BOLT, HEXAGON W/W DE97E75-08540-00
Required: 1
BOLT, WITH WASHER
Supersedes: 97575-08540-00
In stock
Only 5 remaining
$4.55
You save $0.80
In stock
5+ in stock
$38.67
You save $6.83
19
Yamaha Motors
Thermostat Seal67F-12412-00-00
Required: 1
.SEAL, THERMOSTAT
In stock
5+ in stock
$6.97
You save $1.23
20
Yamaha Motors
Cover Assembly63P-1240H-01-9S
Required: 1
COVER ASSEMBLY
$23.08
You save $4.07
21
Yamaha Motors
Cover Gasket63P-12414-00-00
Required: 1
.GASKET, COVER
In stock
5+ in stock
$7.35
You save $1.30
22
Yamaha Motors
Bolt with Washer90119-06MA4-00
Required: 3
BOLT, WITH WASHER
In stock
Only 1 remaining
$3.74
You save $0.66
23
Yamaha Motors
Straight Screw Plug90340-18M09-00
Required: 1
.PLUG, STRAIGHT SCREW
$23.89
You save $4.21
$8.07
You save $1.42
$14.19
You save $2.51
26
Yamaha Motors
Straight Screw Plug90340-14M06-00
Required: 1
PLUG, STRAIGHT SCREW
In stock
5+ in stock
$12.07
You save $2.13
In stock
Only 2 remaining
$2.55
You save $0.45
28
Yamaha Motors
ELEMENT ASSY, OIL CLEANER69J-13440-05-00
Required: 1
ELEMENT ASSY, OIL CLEANER
Supersedes: 69J-13440-03-00
In stock
5+ in stock
$26.39
You save $4.66
$16.99
You save $3.00
$119.55
You save $21.10
In stock
5+ in stock
$4.72
You save $0.83
32
Yamaha Motors
BOLT, HEXAGON W/W DE97E75-06540-00
Required: 4
BOLT, WITH WASHER
Supersedes: 97575-06540-00
In stock
5+ in stock
$4.80
You save $0.85
In stock
Only 2 remaining
$11.47
You save $2.03
34
Yamaha Motors
"O"-Ring93210-25070-00
Required: 1
.O-RING
Supersedes: 93210-24M79-00
$5.52
You save $0.97
$38.97
You save $6.88
36
Yamaha Motors
Oil Plug Gasket63P-15364-A0-00
Required: 1
.GASKET, OIL PLUG
$3.82
You save $0.68
37
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06545-00
Required: 2
BOLT, WITH WASHER
Supersedes: 97595-06545-00
$0.98
You save $0.17
$6.71
You save $1.19
$2.54
You save $0.45
40
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
