All diagrams for this model

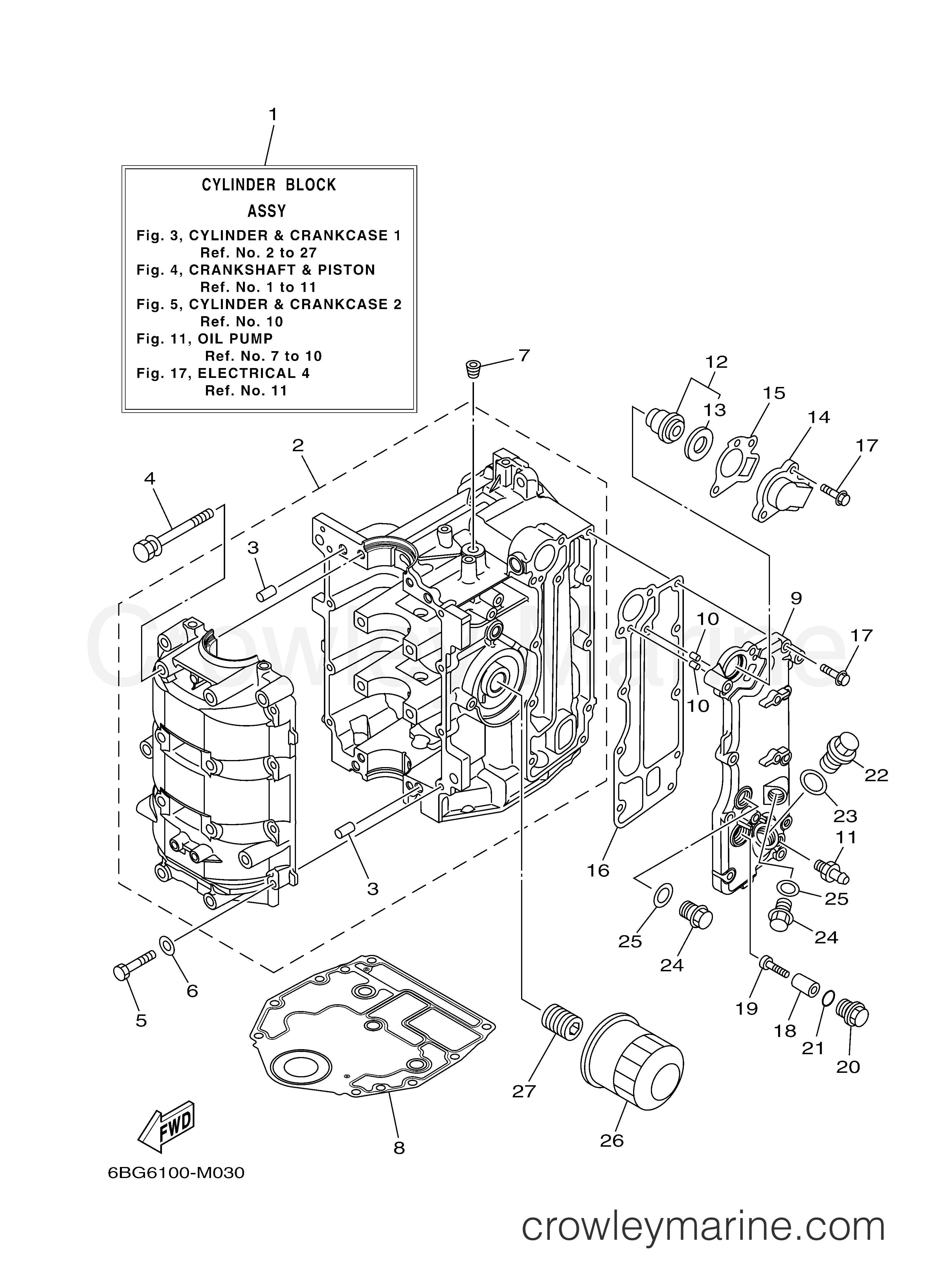

2013 Outboard 40hp - F40JEA CYLINDER CRANKCASE 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors F40JEA - CYLINDER CRANKCASE 1
Change View:
Cylinder Block Assembly
1
Yamaha Motors
Cylinder Block Assembly6BG-W009B-03-9S
Required: 1
CYLINDER BLOCK ASSY
Supersedes: 6BG-W009B-00-9S
Cross Ship
Leaves in 2-5 days
$1953.55
$1660.52
You save $293.03
More details
Crankcase Assembly
2
Yamaha Motors
Crankcase Assembly6BG-15100-00-00
Required: 1
CRANKCASE ASSY
Cross Ship
Leaves in 2-5 days
$2870.05
$2439.54
You save $430.51
More details
Bolt w/ Washer
4
Yamaha Motors
Bolt w/ Washer90119-08154-00
Required: 8
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$4.90
$4.17
You save $0.74
More details
PLUG, TAPER SCREW
7
Yamaha Motors
PLUG, TAPER SCREW90344-51007-00
Required: 1
PLUG, TAPER SCREW
Supersedes: 90344-51003-00
Cross Ship
Leaves in 2-5 days
$6.75
$5.74
You save $1.01
More details
Cylinder Gasket
8
Yamaha Motors
Cylinder Gasket6BG-11351-01-00
Required: 1
.GASKET, CYLINDER
Supersedes: 6BG-11351-00-00
Cross Ship
Leaves in 2-5 days
$73.85
$62.77
You save $11.08
More details
Exhaust Outer Cover
9
Yamaha Motors
Exhaust Outer Cover6BG-41113-00-1S
Required: 1
OUTER COVER, EXHAUST
Supersedes: 6BG-41113-00-9S
Cross Ship
Leaves in 2-5 days
$150.70
$128.09
You save $22.61
More details
Thermostat Cover
14
Yamaha Motors
Thermostat Cover6C5-12413-00-9S
Required: 1
COVER, THERMOSTAT
Cross Ship
Leaves in 2-5 days
$19.80
$16.83
You save $2.97
More details
Exhaust Outer Cover Gasket
16
Yamaha Motors
Exhaust Outer Cover Gasket6BG-41114-00-00
Required: 1
.GASKET, EXHAUST OUTER COVER
Cross Ship
Leaves in 2-5 days
$24.65
$20.95
You save $3.70
More details
Blind Plug
20
Yamaha Motors
Blind Plug6G8-11197-A0-00
Required: 1
PLUG, BLIND
Supersedes: 6G8-11197-01-00
Cross Ship
Leaves in 2-5 days
$13.60
$11.56
You save $2.04
More details
Straight Screw Plug
22
Yamaha Motors
Straight Screw Plug90340-18M09-00
Required: 1
.PLUG, STRAIGHT SCREW
Cross Ship
Leaves in 2-5 days
$28.10
$23.89
You save $4.21
More details
Gasket
23
Yamaha Motors
Gasket90430-18130-00
Required: 1
.GASKET
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Union Bolt
27
Yamaha Motors
Union Bolt6C5-12858-00-00
Required: 1
BOLT, UNION
Cross Ship
Leaves in 2-5 days
$16.85
$14.32
You save $2.53
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
