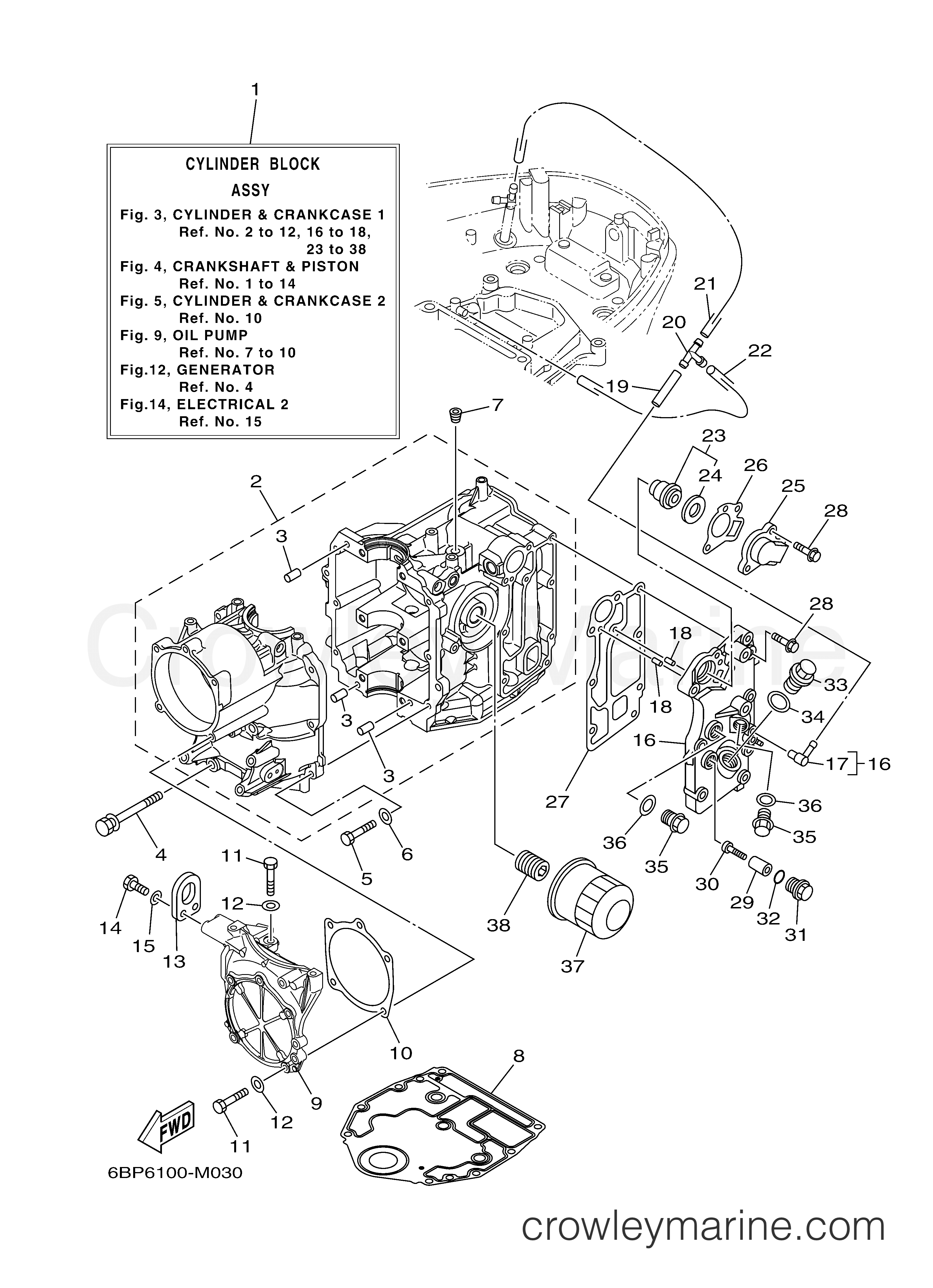

2013 Outboard 25hp - F25SEA CYLINDER CRANKCASE 1 diagram
1
Yamaha Motors
CYLINDER BLOCK ASSEMBLY6BL-W009B-03-1S
Required: 1
CYLINDER BLOCK ASSY
Supersedes: 6BL-W009B-01-1S
$1291.49
You save $227.91
$1512.45
You save $266.90
In stock
5+ in stock
$3.91
You save $0.69
4
Yamaha Motors
Bolt w/ Washer90119-08M01-00
Required: 6
BOLT, WITH WASHER
In stock
5+ in stock
$6.37
You save $1.12
In stock
5+ in stock
$1.36
You save $0.24
6
Yamaha Motors
Plate Washer92990-06600-00
Required: 7
WASHER, PLATE
Supersedes: 92903-06600-00
In stock
5+ in stock
$2.42
You save $0.43
7
Yamaha Motors
PLUG, TAPER SCREW90344-51007-00
Required: 1
PLUG, TAPER SCREW
Supersedes: 90344-51003-00
$5.74
You save $1.01
8
Yamaha Motors
Cylinder Gasket6BG-11351-01-00
Required: 1
.GASKET, CYLINDER
Supersedes: 6BG-11351-00-00
$62.77
You save $11.08
$110.63
You save $19.52
$12.15
You save $2.14
In stock
5+ in stock
$1.36
You save $0.24
12
Yamaha Motors
Plate Washer92990-06600-00
Required: 6
WASHER, PLATE
Supersedes: 92903-06600-00
In stock
5+ in stock
$2.42
You save $0.43
13
Yamaha Motors
Engine Hanger62Y-11119-00-00
Required: 1
HANGER, ENGINE
$11.26
You save $1.99
14
Yamaha Motors
Bolt97080-06020-00
Required: 2
BOLT
Supersedes: 97095-06020-00
In stock
5+ in stock
$3.82
You save $0.68
15
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
16
Yamaha Motors
OUTER COVER, EXHAUST & PIPE99999-04234-00
Required: 1
OUTER COVER, EXHAUST
Supersedes: 6BL-41113-00-1S
$85.98
You save $15.17
17
Yamaha Motors
Hose Nipple676-11372-00-00
Required: 1
.NIPPLE, HOSE
In stock
Only 4 remaining
$13.18
You save $2.33
In stock
Only 1 remaining
$4.42
You save $0.78
19
Yamaha Motors
Hose (L180)90445-09M00-00
Required: 1
HOSE (L43)
Supersedes: 90445-09057-00
$5.91
You save $1.04
20
Yamaha Motors
Joint Pipe688-24378-00-00
Required: 1
PIPE, JOINT 3
In stock
5+ in stock
$14.03
You save $2.47
21
Yamaha Motors
Hose90445-092K1-00
Required: 1
HOSE (L350)
Supersedes: 90445-09251-00
In stock
5+ in stock
$10.62
You save $1.87
22
Yamaha Motors
Hose90445-092K1-00
Required: 1
HOSE (L300)
Supersedes: 90445-09104-00
In stock
5+ in stock
$10.62
You save $1.87
23
Yamaha Motors
Thermostat66M-12411-01-00
Required: 1
THERMOSTAT
Supersedes: 6G8-12411-03-00
In stock
5+ in stock
$38.76
You save $6.84
24
Yamaha Motors
Thermostat Seal688-12412-00-00
Required: 1
.SEAL, THERMOSTAT
In stock
5+ in stock
$4.80
You save $0.85
25
Yamaha Motors
Thermostat Cover6C5-12413-00-9S
Required: 1
COVER, THERMOSTAT
$16.83
You save $2.97
26
Yamaha Motors
GASKET, COVER62Y-12414-01-00
Required: 1
.GASKET, COVER
Supersedes: 62Y-12414-00-00
In stock
5+ in stock
$8.63
You save $1.52
27
Yamaha Motors
Exhaust Outer Cover Gasket6BL-41114-00-00
Required: 1
.GASKET, EXHAUST OUTER COVER
$13.69
You save $2.42
28
Yamaha Motors
Bolt w/ Washer90119-06MA5-00
Required: 8
BOLT, WITH WASHER
In stock
5+ in stock
$3.02
You save $0.53
In stock
5+ in stock
$3.06
You save $0.54
30
Yamaha Motors
Pan Head Screw98580-05525-00
Required: 1
.SCREW, PAN HEAD
Supersedes: 97880-05025-00
In stock
Only 5 remaining
$1.70
You save $0.30
31
Yamaha Motors
Blind Plug6G8-11197-A0-00
Required: 1
PLUG, BLIND
Supersedes: 6G8-11197-01-00
$11.56
You save $2.04
In stock
5+ in stock
$4.04
You save $0.71
33
Yamaha Motors
Straight Screw Plug90340-18M09-00
Required: 1
.PLUG, STRAIGHT SCREW
$23.89
You save $4.21
$8.07
You save $1.42
35
Yamaha Motors
Straight Screw Plug90340-14M06-00
Required: 2
PLUG, STRAIGHT SCREW
In stock
5+ in stock
$12.07
You save $2.13
In stock
Only 2 remaining
$2.55
You save $0.45
37
Yamaha Motors
ELEMENT ASSY, OIL5GH-13440-90-00
Required: 1
ELEMENT ASSY, OIL CLEANER
Supersedes: 5GH-13440-50-00
In stock
5+ in stock
$14.02
You save $2.47
$14.32
You save $2.53
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
