All diagrams for this model

2012 Outboard 60hp - T60LA CYLINDER CRANKCASE 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

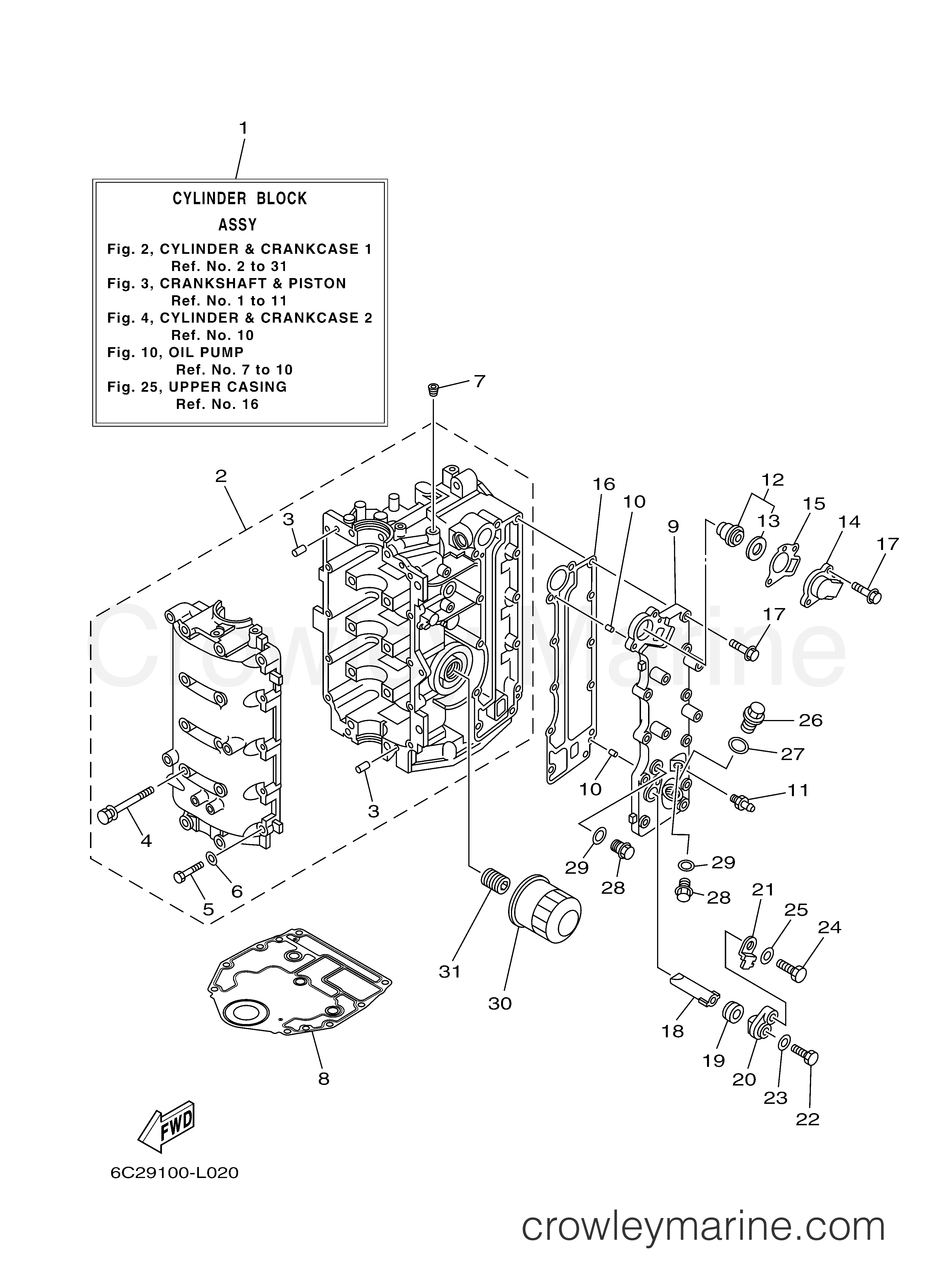

Yamaha Motors T60LA - CYLINDER CRANKCASE 1
Change View:
Cylinder Block Assembly
1
Yamaha Motors
Cylinder Block Assembly6C5-W009B-06-9S
Required: 1
CYLINDER BLOCK ASSY
Supersedes: 6C5-W009B-04-9S
Cross Ship
Leaves in 2-5 days
$3479.40
$2957.49
You save $521.91
More details
Crankcase Assembly
2
Yamaha Motors
Crankcase Assembly6C5-15100-12-00
Required: 1
CRANKCASE ASSY
Cross Ship
Leaves in 2-5 days
$2212.25
$1880.41
You save $331.84
More details
Bolt w/ Washer
4
Yamaha Motors
Bolt w/ Washer90119-08154-00
Required: 10
.BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$4.90
$4.17
You save $0.74
More details
PLUG, TAPER SCREW
7
Yamaha Motors
PLUG, TAPER SCREW90344-51007-00
Required: 1
PLUG, TAPER SCREW
Supersedes: 90344-51003-00
Cross Ship
Leaves in 2-5 days
$6.75
$5.74
You save $1.01
More details
Cylinder Gasket
8
Yamaha Motors
Cylinder Gasket6BG-11351-01-00
Required: 1
.GASKET, CYLINDER
Supersedes: 6BG-11351-00-00
Cross Ship
Leaves in 2-5 days
$73.85
$62.77
You save $11.08
More details
Thermostat Cover
14
Yamaha Motors
Thermostat Cover6C5-12413-00-9S
Required: 1
COVER, THERMOSTAT
Cross Ship
Leaves in 2-5 days
$19.80
$15.84
You save $3.96
More details
Exhaust Outer Cover Gasket
16
Yamaha Motors
Exhaust Outer Cover Gasket6C5-41114-10-00
Required: 1
.GASKET, EXHAUST OUTER COVER
Cross Ship
Leaves in 2-5 days
$33.20
$28.22
You save $4.98
More details
Straight Screw Plug
26
Yamaha Motors
Straight Screw Plug90340-18M09-00
Required: 1
.PLUG, STRAIGHT SCREW
Cross Ship
Leaves in 2-5 days
$28.10
$23.89
You save $4.21
More details
Gasket
27
Yamaha Motors
Gasket90430-18130-00
Required: 1
.GASKET
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Union Bolt
31
Yamaha Motors
Union Bolt6C5-12858-00-00
Required: 1
BOLT, UNION
Cross Ship
Leaves in 2-5 days
$16.85
$14.32
You save $2.53
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
