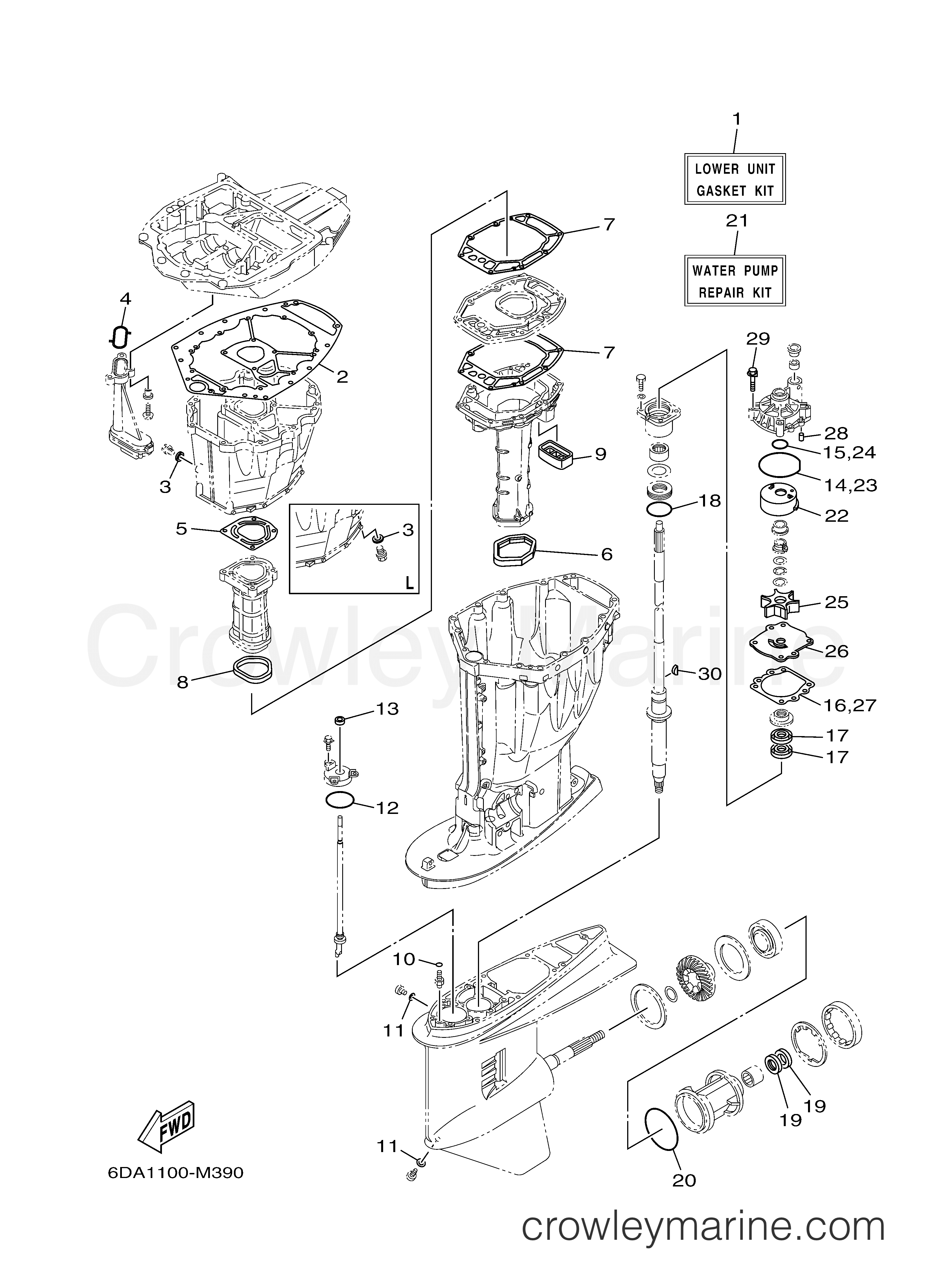

2012 Outboard 200hp - F200LB REPAIR KIT 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors F200LB - REPAIR KIT 2
Change View:
LOWER UNIT GASKET
1
Yamaha Motors
LOWER UNIT GASKET63P-W0001-22-00
Required: 1
LOWER UNIT GASKET KIT
Supersedes: 63P-W0001-21-00
Cross Ship
Leaves in 2-5 days
$187.40
$158.95
You save $28.45
More details
Oil Pan Gasket
2
Yamaha Motors
Oil Pan Gasket63P-15312-01-00
Required: 1
.GASKET, OIL PAN
Cross Ship
Leaves in 2-5 days
$84.65
$71.95
You save $12.70
More details
Oil Strainer Seal
4
Yamaha Motors
Oil Strainer Seal63P-13415-00-00
Required: 1
.SEAL, OIL STRAINER
Cross Ship
Leaves in 2-5 days
$11.35
$9.08
You save $2.27
More details
Exhaust Manifold Gasket
5
Yamaha Motors
Exhaust Manifold Gasket63P-41133-A0-00
Required: 1
.GASKET, EXHAUST MANIFOLD 1
Cross Ship
Leaves in 2-5 days
$12.15
$9.72
You save $2.43
More details
Muffler Gasket
6
Yamaha Motors
Muffler Gasket69J-45123-00-00
Required: 1
.GASKET, MUFFLER
Cross Ship
Leaves in 2-5 days
$4.40
$3.74
You save $0.66
More details
Seal Ext
8
Yamaha Motors
Seal Ext63P-41138-00-00
Required: 1
.SEAL, EXT 1
Cross Ship
Leaves in 2-5 days
$15.95
$13.56
You save $2.39
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
