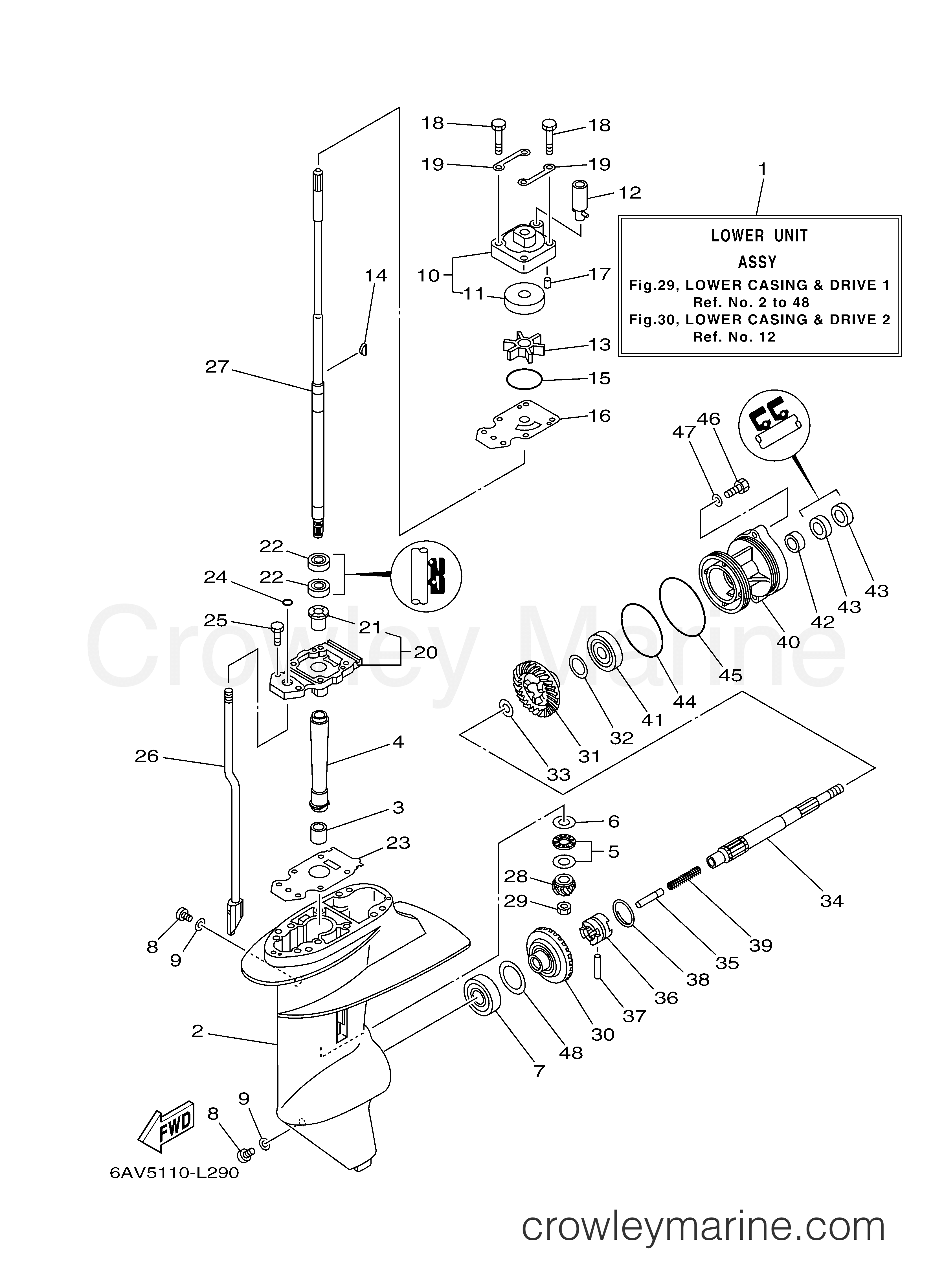

2011 Outboard 9.9hp - T9.9LEHA LOWER CASING DRIVE 1 diagram
1
Yamaha Motors
Lower Unit Assembly69G-45300-13-8D
Required: 1
LOWER UNIT ASSY
Supersedes: 69G-45300-11-4D
$1567.10
You save $276.55
2
Yamaha Motors
Lower Casing66R-45311-01-8D
Required: 1
CASING, LOWER
Supersedes: 66R-45311-01-4D
$484.88
You save $85.57
$52.69
You save $9.30
4
Yamaha Motors
Drive Shaft Sleeve66R-45536-00-00
Required: 1
SLEEVE, DRIVE SHAFT
$11.47
You save $2.03
$45.04
You save $7.95
6
Yamaha Motors
Shim 1.20mm66R-45587-10-00
Required: 1
SHIM (T:1.20MM)
$12.66
You save $2.24
6
Yamaha Motors
Shim66R-45587-00-00
Required: 1
SHIM (T:1.13MM)
$11.69
You save $2.06
In stock
Only 3 remaining
$68.84
You save $12.15
8
Yamaha Motors
Straight Screw Plug90340-08002-00
Required: 2
PLUG, STRAIGHT SCREW
In stock
5+ in stock
$10.84
You save $1.91
9
Yamaha Motors
Tank Cap Gasket90430-08003-00
Required: 2
.GASKET
Supersedes: 90430-08020-00
In stock
5+ in stock
$1.32
You save $0.23
10
Yamaha Motors
Water Pump Housing63V-44301-00-00
Required: 1
WATER PUMP HOUSING COMP.
In stock
5+ in stock
$34.30
You save $6.05
11
Yamaha Motors
Cartridge Insert63V-44322-00-00
Required: 1
.INSERT, CARTRIDGE
In stock
5+ in stock
$14.58
You save $2.57
12
Yamaha Motors
DAMPER, WATER SEAL 268T-44366-01-00
Required: 1
.DAMPER, WATER SEAL 2
Supersedes: 68T-44366-00-00
In stock
Only 2 remaining
$2.42
You save $0.43
In stock
5+ in stock
$23.59
You save $4.16
14
Yamaha Motors
Woodruff Key664-44338-00-00
Required: 1
.KEY, WOODRUFF
In stock
Only 4 remaining
$9.10
You save $1.61
15
Yamaha Motors
O-Ring93210-44704-00
Required: 1
.O-RING
Supersedes: 93210-44398-00
In stock
5+ in stock
$7.22
You save $1.27
16
Yamaha Motors
Cartridge Outer Plate68T-44323-00-00
Required: 1
.OUTER PLATE, CARTRIDGE
In stock
Only 4 remaining
$5.95
You save $1.05
17
Yamaha Motors
Dowel Pin93604-10M03-00
Required: 2
PIN, DOWEL
Supersedes: 93604-12M07-00
In stock
Only 1 remaining
$4.42
You save $0.78
In stock
Only 4 remaining
$2.63
You save $0.47
$3.53
You save $0.62
20
Yamaha Motors
Bearing Housing69G-45331-01-CA
Required: 1
HOUSING, BEARING
In stock
Only 4 remaining
$69.57
You save $12.28
21
Yamaha Motors
Drive Shaft Bushing626-45316-09-00
Required: 1
.BUSHING, DRIVE SHAFT
In stock
5+ in stock
$23.80
You save $4.20
In stock
5+ in stock
$8.07
You save $1.42
23
Yamaha Motors
Lower Casing Packing69G-45315-A0-00
Required: 1
.PACKING, LOWER CASING
In stock
5+ in stock
$13.30
You save $2.35
In stock
Only 4 remaining
$3.02
You save $0.53
25
Yamaha Motors
Bolt97095-08025-00
Required: 2
BOLT
Supersedes: 97080-08025-00
In stock
5+ in stock
$8.07
You save $1.42
26
Shift Cam Assembly69G-44150-11-00
Required: 1
SHIFT CAM ASSY
Supersedes: 69G-44150-10-00
In stock
Only 1 remaining
$94.90
You save $16.75
27
Yamaha Motors
Drive Shaft Assembly69G-45510-10-00
Required: 1
DRIVE SHAFT ASSY
$357.25
You save $63.05
$112.16
You save $19.79
In stock
Only 2 remaining
$11.47
You save $2.02
30
Yamaha Motors
Gear66R-45560-01-00
Required: 1
GEAR 1 (38T)
$135.79
You save $23.96
In stock
Only 1 remaining
$132.64
You save $23.41
32
Yamaha Motors
Shim (T:0.10MM)626-45577-00-00
Required: 1
SHIM (T:0.10MM)
$5.31
You save $0.94
32
Yamaha Motors
Shim626-45577-10-00
Required: 1
SHIM (T:0.20MM)
$5.31
You save $0.94
32
Yamaha Motors
Shim (T:0.50MM)626-45577-40-00
Required: 1
SHIM (T:0.50MM)
$5.31
You save $0.94
32
Yamaha Motors
Shim (T:0.40MM)626-45577-30-00
Required: 1
SHIM (T:0.40MM)
$5.31
You save $0.94
32
Yamaha Motors
Shim (T:0.30MM)626-45577-20-00
Required: 1
SHIM (T:0.30MM)
In stock
Only 2 remaining
$5.31
You save $0.94
33
Yamaha Motors
Plate Washer90201-17802-00
Required: 1
WASHER, PLATE
Supersedes: 90201-17682-00
$2.51
You save $0.44
34
Yamaha Motors
Propeller Shaft683-45611-00-00
Required: 1
SHAFT, PROPELLER
$168.64
You save $29.76
35
Yamaha Motors
Shift Plunger650-45635-00-00
Required: 1
PLUNGER, SHIFT
In stock
Only 1 remaining
$9.69
You save $1.71
$75.05
You save $13.25
37
Yamaha Motors
Straight Pin90250-05010-00
Required: 1
PIN, STRAIGHT
In stock
Only 3 remaining
$4.72
You save $0.83
38
Yamaha Motors
Cross Pin Ring648-45633-10-00
Required: 1
RING, CROSS PIN
Supersedes: 648-45633-00-00
$7.14
You save $1.26
39
Yamaha Motors
Compression Spring90501-14M09-00
Required: 1
SPRING, COMPRESSION
In stock
Only 3 remaining
$5.31
You save $0.94
40
Yamaha Motors
Lower Casing Cap66R-45361-00-8D
Required: 1
CAP, LOWER CASING
Supersedes: 66R-45361-00-4D
In stock
5+ in stock
$95.50
You save $16.85
$15.72
You save $2.77
In stock
5+ in stock
$18.69
You save $3.30
In stock
5+ in stock
$9.44
You save $1.67
In stock
5+ in stock
$7.69
You save $1.36
In stock
5+ in stock
$9.77
You save $1.72
$2.85
You save $0.50
47
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
48
Yamaha Motors
Shim (T:0.10MM)626-45577-00-00
Required: 1
SHIM (T:0.10MM)
$5.31
You save $0.94
48
Yamaha Motors
Shim626-45577-10-00
Required: 1
SHIM (T:0.20MM)
$5.31
You save $0.94
48
Yamaha Motors
Shim (T:0.50MM)626-45577-40-00
Required: 1
SHIM (T:0.50MM)
$5.31
You save $0.94
48
Yamaha Motors
Shim (T:0.40MM)626-45577-30-00
Required: 1
SHIM (T:0.40MM)
$5.31
You save $0.94
48
Yamaha Motors
Shim (T:0.30MM)626-45577-20-00
Required: 1
SHIM (T:0.30MM)
In stock
Only 2 remaining
$5.31
You save $0.94
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
