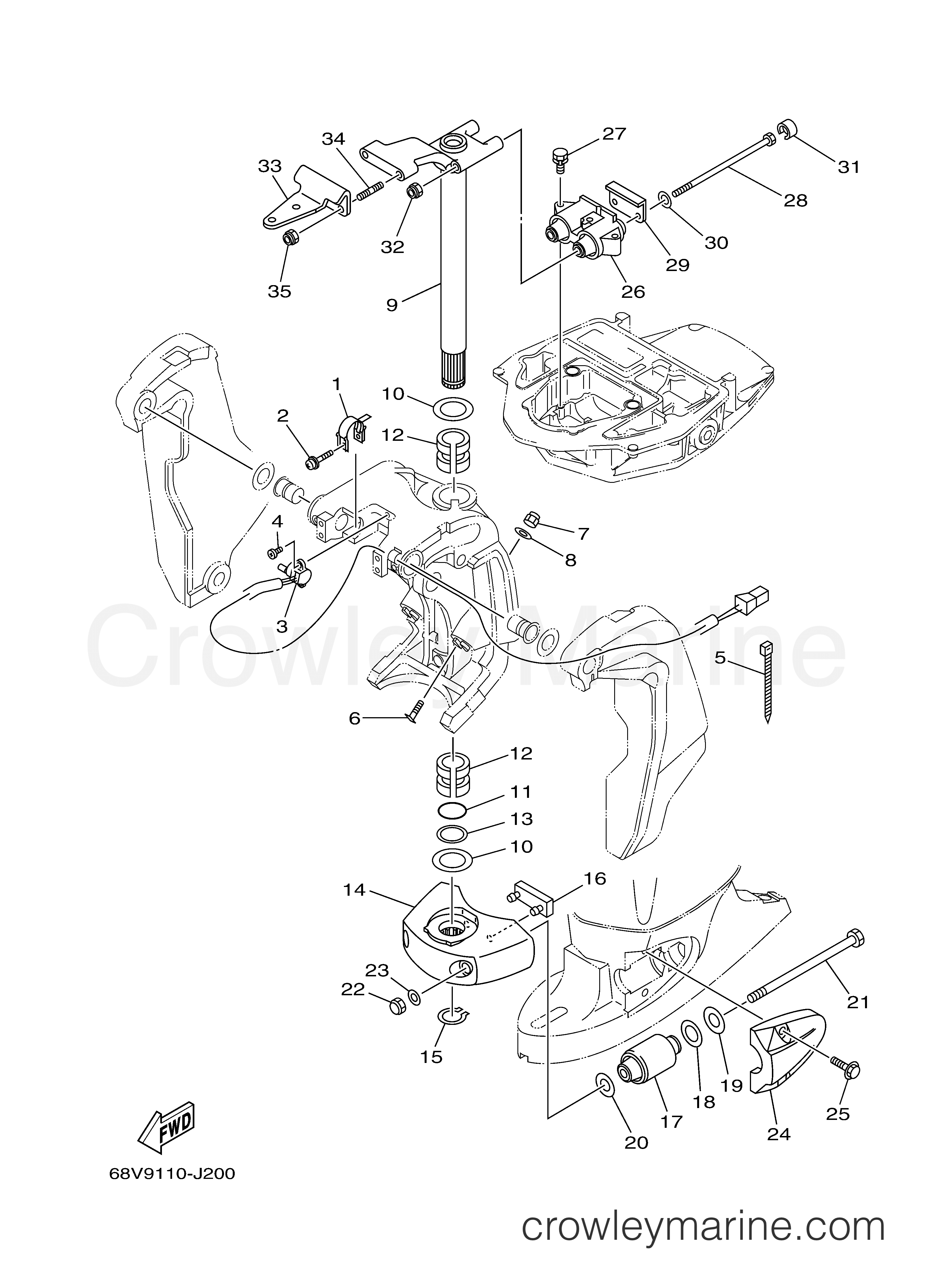

2009 Outboard 115hp - LF115TXR BRACKET 2 diagram
1
Yamaha Motors
CAM, TRIM SENDER64E-43139-11-00
Required: 1
CAM, TRIM SENDER
Supersedes: 64E-43139-10-00
$15.21
You save $2.69
2
Yamaha Motors
Screw With Washer90159-05059-00
Required: 1
SCREW, WITH WASHER
In stock
Only 1 remaining
$3.02
You save $0.53
3
Trim Sender67H-83672-03-00
Required: 1
TRIM SENDER
Supersedes: 67H-83672-00-00
In stock
Only 2 remaining
$152.14
You save $26.85
4
Yamaha Motors
Pan Head Screw98580-06016-00
Required: 2
SCREW, PAN HEAD
Supersedes: 97885-06016-00
In stock
Only 5 remaining
$2.85
You save $0.50
5
Yamaha Motors
Clamp90465-10098-00
Required: 3
CLAMP
Supersedes: 90465-11M10-00
In stock
5+ in stock
$2.29
You save $0.41
6
Yamaha Motors
Thrust Receiver Bolt61A-43376-00-00
Required: 2
BOLT, THRUST RECEIVER
Supersedes: 63P-43376-00-00
$55.38
You save $9.77
$11.05
You save $1.95
8
Yamaha Motors
Plate Washer92990-10600-00
Required: 2
WASHER
Supersedes: 92995-10600-00
In stock
5+ in stock
$2.55
You save $0.45
9
Yamaha Motors
Steering Bracket Assembly68V-42510-31-8D
Required: 1
STEERING BRACKET ASSY
Supersedes: 68V-42510-30-8D
$696.83
You save $122.97
10
Yamaha Motors
Plate Washer90201-38M60-00
Required: 2
WASHER, PLATE
In stock
Only 2 remaining
$6.88
You save $1.21
In stock
Only 1 remaining
$5.44
You save $0.96
12
Yamaha Motors
Bushing90386-38M89-00
Required: 2
BUSH
Supersedes: 90386-38M32-00
In stock
Only 4 remaining
$39.31
You save $6.94
13
Yamaha Motors
Plate Washer90202-40M47-00
Required: 1
WASHER, PLATE
In stock
Only 3 remaining
$7.73
You save $1.37
14
Yamaha Motors
Lower Mount Rubber Housing68V-44551-00-8D
Required: 1
HOUSING, LOWER MOUNT RUBBER 1
$184.92
You save $32.63
15
Yamaha Motors
CIRCLIP93410-36102-00
Required: 1
CIRCLIP
Supersedes: 93410-37M04-00
In stock
Only 1 remaining
$8.84
You save $1.56
16
Yamaha Motors
DAMPER, LOWER MOUN61A-44575-01-00
Required: 1
DAMPER, LOWER MOUNT RUBBER
Supersedes: 61A-44575-00-00
$4.72
You save $0.83
17
Yamaha Motors
Lower Side Mount Damper61A-44555-01-94
Required: 2
MOUNT DAMPER, LOWER SIDE
$121.04
You save $21.36
18
Yamaha Motors
Plate Washer90202-32M19-00
Required: 2
WASHER, PLATE
$8.84
You save $1.56
19
Yamaha Motors
Plate Washer90201-16M55-00
Required: 2
WASHER, PLATE
$12.28
You save $2.17
20
Yamaha Motors
Plate Washer90201-15M58-00
Required: 2
WASHER, PLATE
In stock
Only 1 remaining
$10.79
You save $1.90
$24.52
You save $4.33
$9.69
You save $1.71
23
Yamaha Motors
Washer92990-14600-00
Required: 2
WASHER
Supersedes: 92995-14600-00
In stock
Only 2 remaining
$6.12
You save $1.08
24
Yamaha Motors
Lower Mount Cover68V-44553-00-8D
Required: 2
COVER, LOWER MOUNT
$75.35
You save $13.30
25
Yamaha Motors
Bolt with Washer90119-10058-00
Required: 4
BOLT, WITH WASHER
Supersedes: 90119-10049-00
$5.61
You save $0.99
26
Yamaha Motors
Upper Mount Damper67F-44514-01-00
Required: 1
MOUNT DAMPER, UPPER SIDE
Supersedes: 67F-44514-01-94
$144.46
You save $25.49
27
Yamaha Motors
Bolt with Washer90119-08091-00
Required: 3
BOLT, WITH WASHER
$6.08
You save $1.07
$20.14
You save $3.55
$13.64
You save $2.41
30
Yamaha Motors
Plate Washer90201-12M09-00
Required: 2
WASHER, PLATE
$5.74
You save $1.01
31
Yamaha Motors
Upper Mount Rubber Damper67F-44533-00-00
Required: 2
DAMPER, UPPER MOUNT RUBBER
$6.29
You save $1.11
32
Yamaha Motors
Self-Locking Nut90185-12M12-00
Required: 2
NUT, SELF-LOCKING
$15.21
You save $2.69
33
Yamaha Motors
Steering Hook 68V-48511-00-00
Required: 1
HOOK, STEERING
Supersedes: 68V-48511-10-00
$55.76
You save $9.84
34
Yamaha Motors
Stud Bolt90116-10062-00
Required: 2
BOLT, STUD
Supersedes: 90116-10175-00
In stock
5+ in stock
$7.22
You save $1.27
35
Yamaha Motors
Self-Locking Nut90185-10027-00
Required: 2
NUT, SELF-LOCKING
Supersedes: 90185-10051-00
In stock
5+ in stock
$2.04
You save $0.36
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
