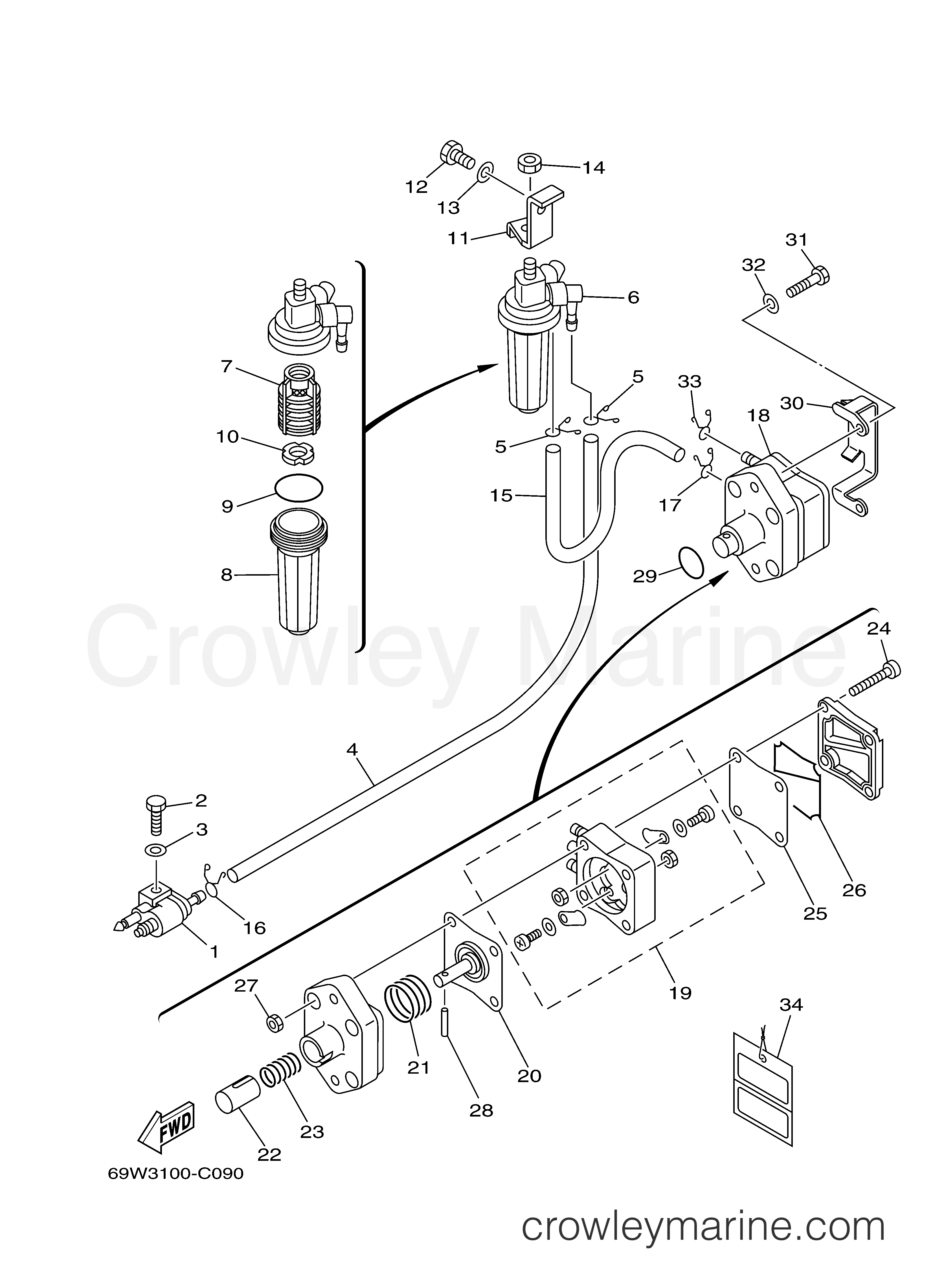

2004 Outboard 60hp - F60TLRC FUEL 1 diagram
1
Yamaha Motors
FUEL PIPE JOINT COMP. 16G1-24304-11-00
Required: 1
FUEL PIPE JOINT COMP. 1
Supersedes: 6G1-24304-02-00
In stock
Only 5 remaining
$29.92
You save $5.28
$2.85
You save $0.50
3
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
In stock
Only 1 remaining
$7.73
You save $1.37
5
Yamaha Motors
Clip90467-09M09-00
Required: 2
CLIP
Supersedes: 90467-09M17-00
In stock
5+ in stock
$0.98
You save $0.17
6
Yamaha Motors
Filter Assembly64J-24560-11-00
Required: 1
FILTER ASSY
Supersedes: 64J-24560-00-00
$14.58
You save $2.57
7
Yamaha Motors
Element Filter61N-24563-10-00
Required: 1
..ELEMENT, FILTER
Supersedes: 61N-24563-00-00
In stock
5+ in stock
$11.18
You save $1.97
In stock
Only 4 remaining
$10.20
You save $1.80
In stock
5+ in stock
$2.85
You save $0.50
10
Yamaha Motors
Water Level Float68V-24469-01-00
Required: 1
.FLOAT, WATER LEVEL
In stock
5+ in stock
$4.80
You save $0.85
11
Yamaha Motors
Filter Bracket62Y-24566-01-00
Required: 1
BRACKET, FILTER
Supersedes: 62Y-24566-00-00
$8.33
You save $1.47
$0.94
You save $0.17
13
Yamaha Motors
Plate Washer92990-08600-00
Required: 1
WASHER
Supersedes: 92995-08600-00
In stock
5+ in stock
$2.29
You save $0.41
In stock
Only 1 remaining
$7.22
You save $1.27
15
Yamaha Motors
Hose90445-10M47-00
Required: 1
HOSE (L205)
Supersedes: 90445-10M48-00
$5.27
You save $0.93
16
Yamaha Motors
Clip90467-09M09-00
Required: 1
CLIP
Supersedes: 90467-09M17-00
In stock
5+ in stock
$0.98
You save $0.17
In stock
Only 2 remaining
$6.54
You save $1.16
18
Yamaha Motors
Fuel Pump Assembly62Y-24410-04-00
Required: 1
FUEL PUMP ASSY
Supersedes: 62Y-24410-03-00
In stock
5+ in stock
$87.34
You save $15.41
19
Yamaha Motors
Body62Y-24415-01-00
Required: 1
.PUMP BODY SUB ASSY
Supersedes: 62Y-24415-00-00
$44.54
You save $7.86
$123.12
You save $21.73
21
Yamaha Motors
Diaphragm Spring62Y-24423-00-00
Required: 1
.SPRING, DIAPHRAGM
$6.88
You save $1.21
$62.52
You save $11.03
In stock
Only 1 remaining
$6.88
You save $1.21
24
Yamaha Motors
Screw (M8 X 40)62Y-24444-09-00
Required: 4
.SCREW
Supersedes: 62Y-24444-01-00
$3.19
You save $0.56
$13.30
You save $2.35
In stock
Only 4 remaining
$13.94
You save $2.46
In stock
Only 5 remaining
$8.07
You save $1.42
In stock
Only 1 remaining
$11.05
You save $1.95
29
Yamaha Motors
"O"-Ring93210-25070-00
Required: 1
.O-RING
Supersedes: 93210-24M79-00
$5.52
You save $0.97
$10.33
You save $1.82
31
Yamaha Motors
Bolt97080-06030-00
Required: 2
BOLT
Supersedes: 97095-06030-00
In stock
5+ in stock
$3.49
You save $0.62
32
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
In stock
Only 2 remaining
$6.54
You save $1.16
$10.84
You save $1.91
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
