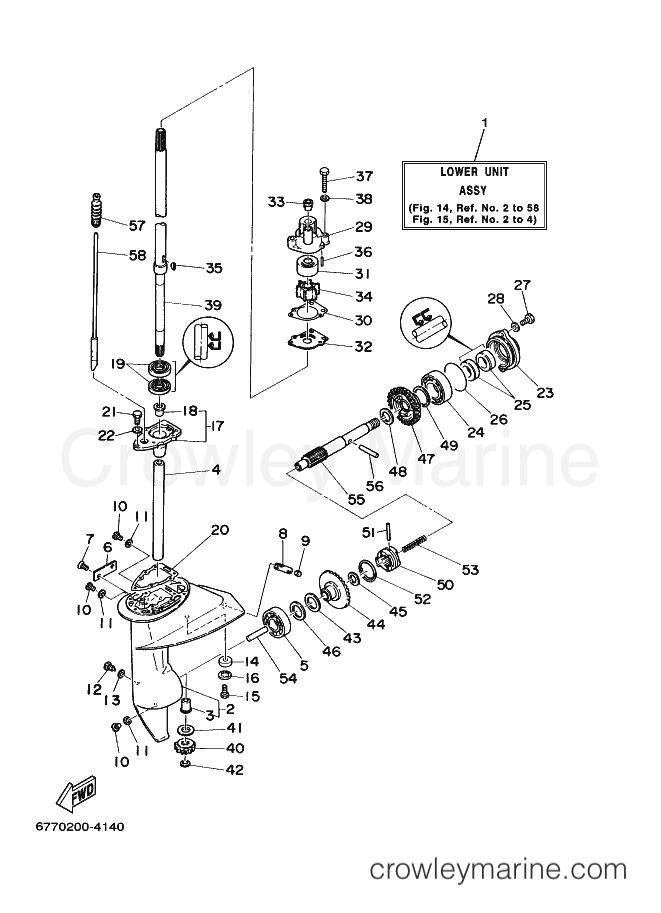

2001 International 8hp - E8D (6770) [080] LOWER CASING & DRIVE 1 diagram
![Yamaha Motors E8D (6770) [080] - LOWER CASING & DRIVE 1](https://cdn.crowleymarine.com/yamaha/OS3JUr06.png)
1
Required: 1
LOWER UNIT ASSY
Price unavailable
1
Required: 1
LOWER UNIT ASSY
Price unavailable
1
Required: 1
LOWER UNIT ASSY
Price unavailable
2
Required: 1
LOWER CASING ASSY
Price unavailable
3
Required: 1
. BUSHING, DRIVE SHAFT
Price unavailable
4
Required: 1
COLLAR
Price unavailable
5
Yamaha Motors
Bearing93306-00423-00
Required: 1
BEARING
Supersedes: 93306-004U0-00
$35.69
You save $6.30
6
Required: 1
COVER, WATER INLET
Price unavailable
7
Required: 2
SCREW, COUNTERSUNK
Price unavailable
8
Required: 1
COVER, WATER INLET
Price unavailable
9
Required: 1
PLUG, STRAIGHT
Price unavailable
10
Yamaha Motors
Straight Screw Plug90340-08002-00
Required: 3
PLUG, STRAIGHT SCREW
Supersedes: 90340-08M04-00
In stock
5+ in stock
$10.84
You save $1.91
11
Yamaha Motors
Tank Cap Gasket90430-08003-00
Required: 3
GASKET
Supersedes: 90430-08020-00
In stock
5+ in stock
$1.32
You save $0.23
12
Required: 1
SCREW
Price unavailable
In stock
Only 4 remaining
$3.10
You save $0.55
$4.29
You save $0.76
15
Yamaha Motors
DEEP FLANGE BOLT95D95-06012-00
Required: 1
BOLT, FLANGE
Supersedes: 95895-06012-00
$0.81
You save $0.14
16
Yamaha Motors
Washer92990-06300-00
Required: 1
WASHER, INTERNAL TOOTH
In stock
5+ in stock
$2.29
You save $0.41
17
Required: 1
HOUSING, BEARING
Price unavailable
18
Required: 1
. BUSHING, DRIVE SHAFT
Price unavailable
19
Required: 2
OIL SEAL
Price unavailable
20
Required: 1
PACKING, LOWER CASING
Price unavailable
21
Yamaha Motors
Bolt97080-06020-00
Required: 2
BOLT
Supersedes: 97095-06020-00
In stock
5+ in stock
$3.82
You save $0.68
22
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
23
Required: 1
CAP, LOWER CASING
Price unavailable
24
Yamaha Motors
BEARING93306-00501-00
Required: 1
BEARING (B6005)
$15.72
You save $2.77
In stock
Only 3 remaining
$6.88
You save $1.21
26
Yamaha Motors
O-Ring93210-58677-00
Required: 1
O-RING
Supersedes: 93210-58144-00
In stock
5+ in stock
$7.22
You save $1.27
27
Yamaha Motors
Bolt97080-06020-00
Required: 2
BOLT
Supersedes: 97095-06020-00
In stock
5+ in stock
$3.82
You save $0.68
28
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
29
Required: 1
HOUSING, WATER PUMP
Price unavailable
30
Required: 1
GASKET, WATER PUMP
Price unavailable
31
Required: 1
INSERT, CARTRIDGE
Price unavailable
31
Required: 1
INSERT, CARTRIDGE
Price unavailable
32
Required: 1
OUTER PLATE, CARTRIDGE
Price unavailable
32
Required: 1
OUTER PLATE, CARTRIDGE
Price unavailable
33
Yamaha Motors
DAMPER, WATER SEAL 2647-44366-01-00
Required: 1
DAMPER, WATER SEAL
Supersedes: 647-44366-00-00
In stock
5+ in stock
$2.29
You save $0.41
$27.07
You save $4.78
35
Yamaha Motors
Woodruff Key90280-03024-00
Required: 1
KEY, WOODRUFF
In stock
5+ in stock
$6.21
You save $1.10
$6.54
You save $1.16
In stock
5+ in stock
$2.38
You save $0.42
38
Yamaha Motors
Plate Washer92990-06600-00
Required: 3
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
39
Required: 1
DRIVE SHAFT COMP.
Price unavailable
39
Required: 1
DRIVE SHAFT COMP.
Price unavailable
39
Required: 1
DRIVE SHAFT COMP.
Price unavailable
$9.87
You save $1.74
41
Required: 1
SHIM (T:1.4MM)
Price unavailable
41
Yamaha Motors
Shim (T:1.0MM)647-45533-20-00
Required: 1
SHIM (T:1.0MM)
Supersedes: 647-45533-00-10
$3.74
You save $0.66
41
Required: 1
SHIM (T:1.2MM)
Price unavailable
41
Required: 1
SHIM (T:0.8MM)
Price unavailable
42
Yamaha Motors
Circle Clip99001-07600-00
Required: 1
CIRCLIP
Supersedes: 93430-07012-00
$3.02
You save $0.53
43
Required: 1
SHIM (T:0.5MM)
Price unavailable
43
Required: 1
SHIM (T:0.3MM)
Price unavailable
44
Required: 1
GEAR
Price unavailable
45
Yamaha Motors
Plate Washer90201-13198-00
Required: 1
WASHER, PLATE
$2.93
You save $0.52
46
Yamaha Motors
Shim (T:0.10MM)647-45567-00-00
Required: 1
SHIM (T:0.10MM)
$5.61
You save $0.99
$20.48
You save $3.62
48
Required: 1
WASHER, PLATE
Price unavailable
49
Yamaha Motors
Shim (T:0.50MM)626-45577-40-00
Required: 1
SHIM (T:0.50MM)
Supersedes: 626-45577-00-05
$5.31
You save $0.94
49
Yamaha Motors
Shim (T:0.10MM)626-45577-00-00
Required: 1
SHIM (T:0.10MM)
Supersedes: 626-45577-00-01
$5.31
You save $0.94
49
Yamaha Motors
Shim (T:0.30MM)626-45577-20-00
Required: 1
SHIM (T:0.30MM)
Supersedes: 626-45577-00-03
In stock
Only 2 remaining
$5.31
You save $0.94
50
Required: 1
CLUTCH, DOG
Price unavailable
$1.48
You save $0.26
52
Required: 1
CIRCLIP
Price unavailable
53
Required: 1
SPRING, COMPRESSION
Price unavailable
54
Yamaha Motors
Shift Plunger654-45635-00-00
Required: 1
PLUNGER, SHIFT
$6.88
You save $1.21
55
Required: 1
SHAFT, PROPELLER
Price unavailable
56
Yamaha Motors
SHARE PIN90250-05036-00
Required: 1
PIN, STRAIGHT
$2.80
You save $0.50
57
Yamaha Motors
Shift Rod Boot6G1-44147-00-00
Required: 1
BOOT, SHIFT ROD
Supersedes: 655-44147-00-00
In stock
5+ in stock
$12.92
You save $2.28
58
Required: 1
SHIFT CAM ASSY
Price unavailable
58
Required: 1
SHIFT CAM ASSY
Price unavailable
58
Required: 1
SHIFT CAM ASSY
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
