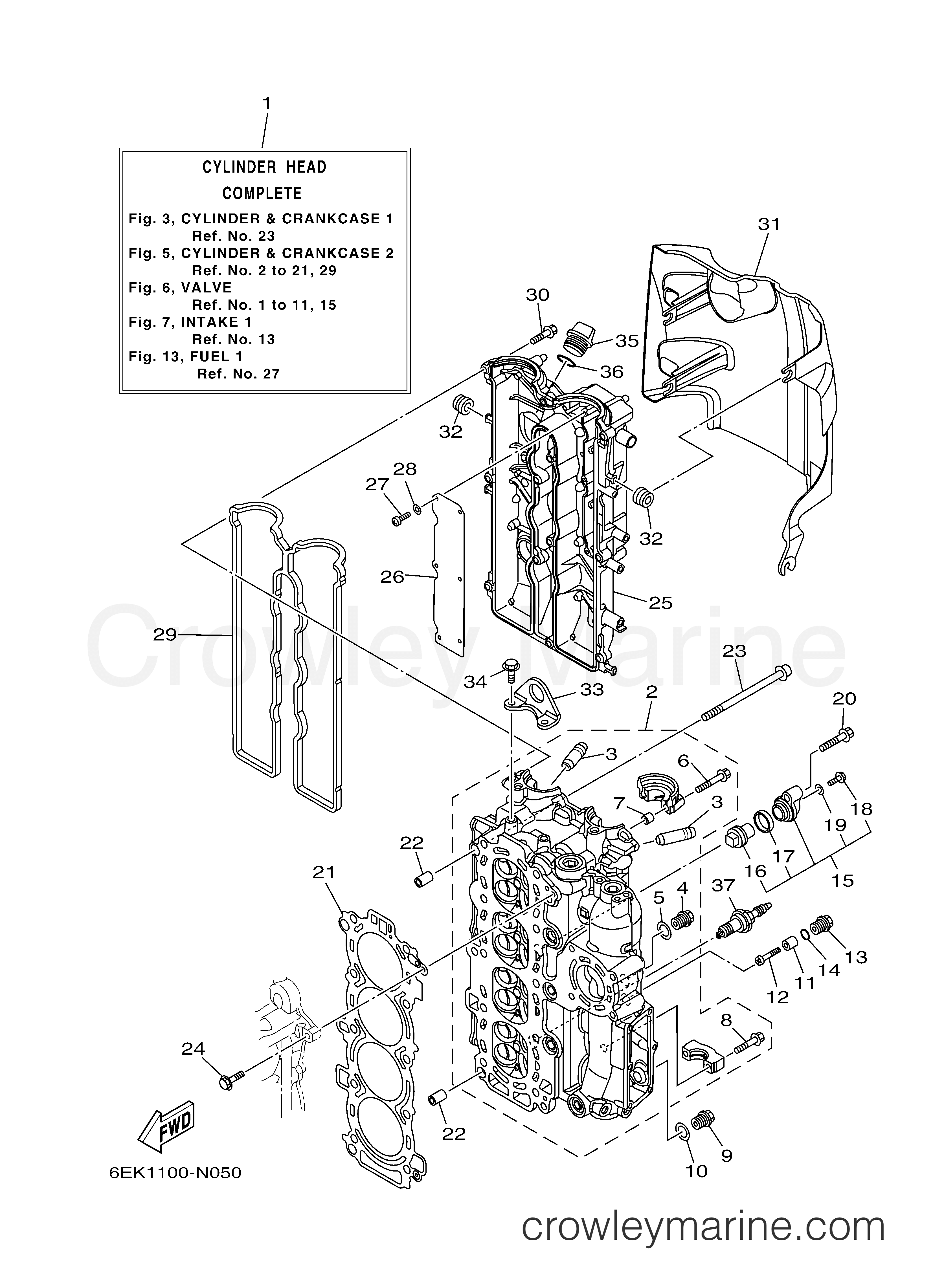

2014 Outboard 115hp - LF115XB CYLINDER CRANKCASE 2 diagram
1
Yamaha Motors
CYLINDER HEAD COMPLETE6EK-W009A-02-9S
Required: 1
CYLINDER HEAD COMPLETE
Supersedes: 6EK-W009A-00-9S
$1290.77
You save $227.78
2
Required: 1
CYLINDER HEAD ASSY
Price unavailable
3
Yamaha Motors
Valve Guide6DA-11133-10-00
Required: 16
.GUIDE, VALVE 1
$32.68
You save $5.77
4
Yamaha Motors
Straight Screw Plug90340-18M09-00
Required: 1
.PLUG, STRAIGHT SCREW
$23.89
You save $4.21
$8.07
You save $1.42
6
Yamaha Motors
Washer-Cam Caps Bolt90119-07235-00
Required: 4
.BOLT/WASHER-CAM CAPS
$3.10
You save $0.55
$4.72
You save $0.83
8
Yamaha Motors
Bolt With Washer90119-07234-00
Required: 16
.BOLT, WITH WASHER
$2.72
You save $0.48
9
Yamaha Motors
Straight Screw Plug90340-14M06-00
Required: 1
PLUG, STRAIGHT SCREW
In stock
5+ in stock
$11.36
You save $2.84
In stock
Only 2 remaining
$2.40
You save $0.60
In stock
5+ in stock
$2.88
You save $0.72
$1.19
You save $0.21
13
Yamaha Motors
Blind Plug6G8-11197-A0-00
Required: 1
PLUG, BLIND
Supersedes: 6G8-11197-01-00
$11.56
You save $2.04
In stock
5+ in stock
$3.80
You save $0.95
15
Yamaha Motors
ANODE COVER ASSY69J-11301-02-00
Required: 1
ANODE COVER ASSY
Supersedes: 69J-11301-00-00
In stock
Only 2 remaining
$36.28
You save $9.07
16
Yamaha Motors
ANODE6ML-11325-00-00
Required: 1
.ANODE
Supersedes: 67F-11325-01-00
In stock
Only 3 remaining
$14.56
You save $3.64
17
Yamaha Motors
Anode Grommet67F-11328-01-00
Required: 1
.GROMMET, ANODE
Supersedes: 67F-11328-00-00
In stock
5+ in stock
$3.04
You save $0.76
18
Yamaha Motors
Flange Bolt90105-06M07-00
Required: 1
.BOLT, FLANGE
In stock
5+ in stock
$1.84
You save $0.46
In stock
Only 4 remaining
$2.92
You save $0.73
20
Required: 1
BOLT, FLANGE
Price unavailable
21
Yamaha Motors
Cylinder Head Gasket6EK-11181-00-00
Required: 1
.GASKET, CYLINDER HEAD 1
$107.95
You save $19.45
In stock
Only 4 remaining
$3.04
You save $0.76
23
Yamaha Motors
Flat Fillister Screw90155-10008-00
Required: 10
SCREW, FLAT FILLISTER
$5.61
You save $0.99
$2.72
You save $0.48
25
Yamaha Motors
Cylinder Head Cover6EK-11191-00-00
Required: 1
COVER, CYLINDER HEAD 1
$265.37
You save $46.83
26
Yamaha Motors
Breather Cover6EK-11168-00-00
Required: 1
COVER, BREATHER
$1.61
You save $0.28
27
Yamaha Motors
Pan Head Screw98507-04008-00
Required: 6
.SCREW, PAN HEAD
$1.82
You save $0.32
$1.57
You save $0.28
29
Yamaha Motors
Head Cover Gasket6EK-11193-00-00
Required: 1
.GASKET, HEAD COVER 1
$16.41
You save $2.89
30
Yamaha Motors
DEEP FLANGE BOLT95D95-06030-00
Required: 12
BOLT, FLANGE
Supersedes: 95895-06030-00
In stock
Only 5 remaining
$4.28
You save $1.07
-50%
31
Yamaha Motors
Cylinder Head Cover6EK-11192-00-00
Required: 1
COVER, CYLINDER HEAD 2
In stock
Only 1 remaining
$13.18
You save $13.18
32
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-12497-00
Required: 4
GROMMET
Supersedes: 90480-12314-00
In stock
Only 4 remaining
$2.56
You save $0.64
33
Yamaha Motors
Engine Hanger6EK-11119-00-00
Required: 1
HANGER, ENGINE
$12.54
You save $2.21
34
Yamaha Motors
DEEP FLANGE BOLT95D95-08020-00
Required: 2
BOLT, FLANGE
Supersedes: 95895-08020-00
$1.19
You save $0.21
In stock
Only 2 remaining
$10.80
You save $2.70
36
Yamaha Motors
"O"-Ring93210-25070-00
Required: 1
.O-RING
Supersedes: 93210-24M79-00
$5.52
You save $0.97
37
Yamaha Motors
Spark Plug NGK LKR6ELKR-6E000-00-00
Required: 4
PLUG, SPARK (NGK LKR6E)
In stock
5+ in stock
$10.44
You save $2.61
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
