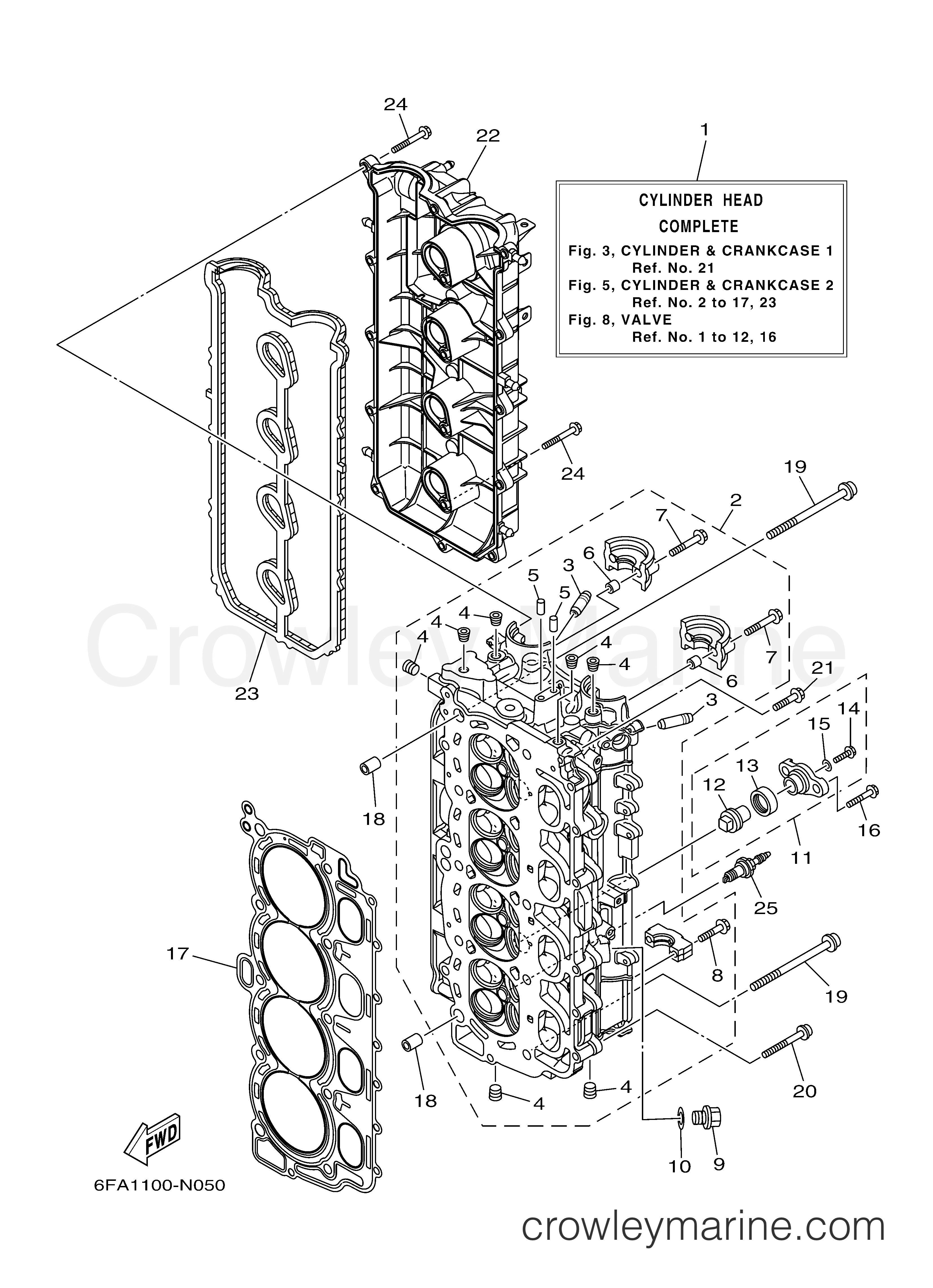

2014 Outboard 175hp - F175LA CYLINDER CRANKCASE 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors F175LA - CYLINDER CRANKCASE 2
Change View:
CYLINDER HEAD COMP
1
Yamaha Motors
CYLINDER HEAD COMP6FA-W009A-04-9S
Required: 1
CYLINDER HEAD COMPLETE
Supersedes: 6FA-W009A-00-9S
Cross Ship
Leaves in 2-5 days
$6261.15
$5321.98
You save $939.17
More details
2
Required: 1
CYLINDER HEAD ASSY
Price unavailable
Valve Guide
3
Yamaha Motors
Valve Guide6DA-11133-10-00
Required: 16
.GUIDE, VALVE 1
Cross Ship
Leaves in 2-5 days
$38.45
$32.68
You save $5.77
More details
Dowel Pin
6
Yamaha Motors
Dowel Pin91809-08006-00
Required: 4
.PIN, DOWEL
Cross Ship
Leaves in 2-5 days
$5.55
$4.72
You save $0.83
More details
Bolt With Washer
7
Yamaha Motors
Bolt With Washer90119-07001-00
Required: 4
.BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$20.65
$17.55
You save $3.10
More details
Bolt With Washer
8
Yamaha Motors
Bolt With Washer90119-07234-00
Required: 16
.BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details
Flange Bolt
16
Yamaha Motors
Flange Bolt95885-08025-00
Required: 4
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$4.90
$4.17
You save $0.74
More details
Cylinder Head Gasket
17
Yamaha Motors
Cylinder Head Gasket6DA-11181-00-00
Required: 1
.GASKET, CYLINDER HEAD 1
Cross Ship
Leaves in 2-5 days
$165.40
$140.59
You save $24.81
More details
Collar
18
Yamaha Motors
Collar90387-11005-00
Required: 2
COLLAR
Cross Ship
Leaves in 2-5 days
$7.70
$6.54
You save $1.16
More details
Flat Fillister Screw
19
Yamaha Motors
Flat Fillister Screw90155-11002-00
Required: 10
SCREW, FLAT FILLISTER
Cross Ship
Leaves in 2-5 days
$15.20
$12.92
You save $2.28
More details
Flange Bolt
20
Yamaha Motors
Flange Bolt90105-08175-00
Required: 8
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$6.40
$5.44
You save $0.96
More details
Flange Bolt
21
Yamaha Motors
Flange Bolt90105-06151-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$4.60
$3.91
You save $0.69
More details
Cylinder Head Cover
22
Yamaha Motors
Cylinder Head Cover6DA-11191-00-00
Required: 1
COVER, CYLINDER HEAD 1
Cross Ship
Leaves in 2-5 days
$232.40
$197.54
You save $34.86
More details
Head Cover Gasket
23
Yamaha Motors
Head Cover Gasket6DA-11193-00-00
Required: 1
.GASKET, HEAD COVER 1
Cross Ship
Leaves in 2-5 days
$26.15
$22.23
You save $3.92
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
