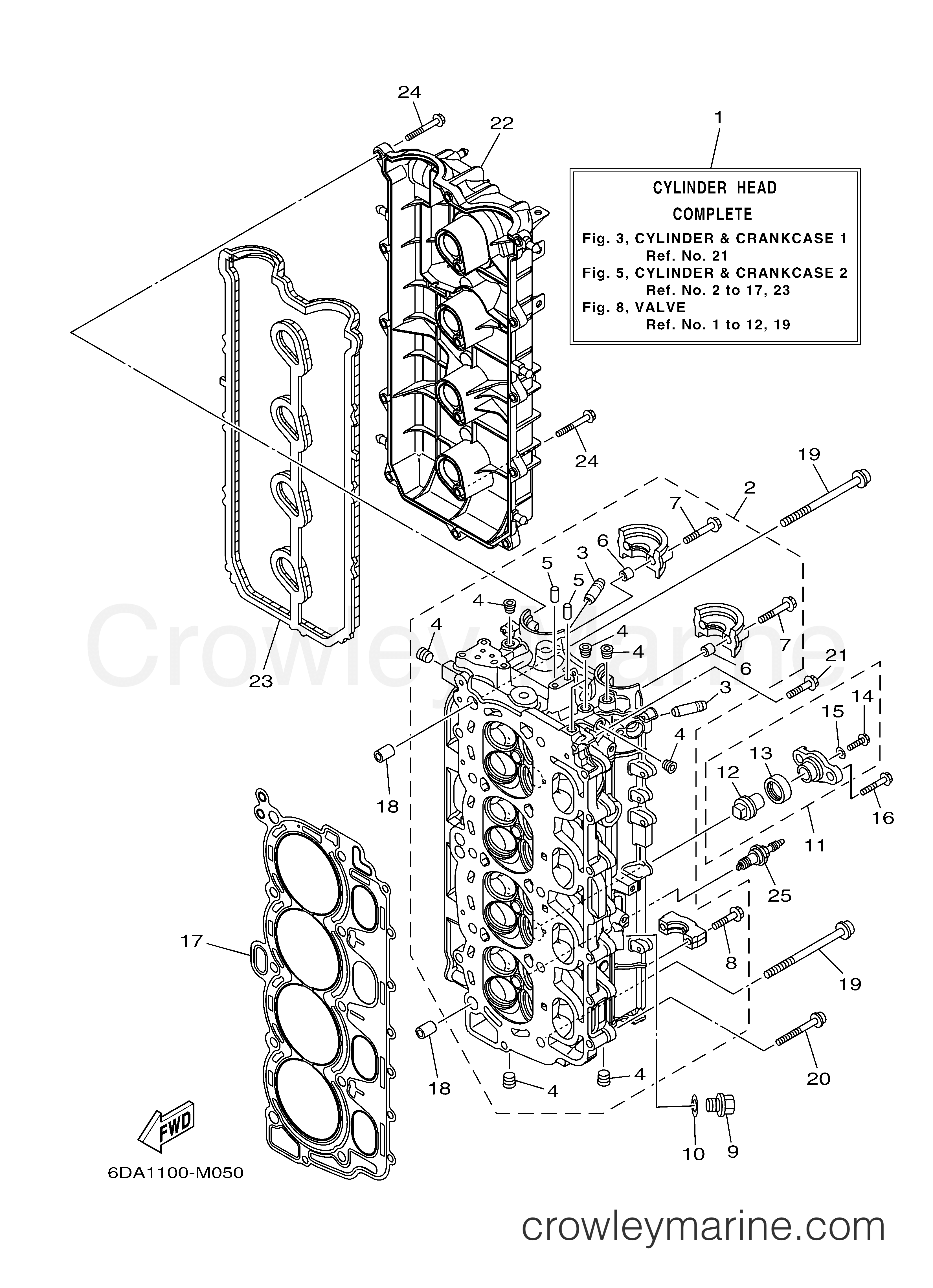

2012 Outboard 200hp - LF200XB CYLINDER CRANKCASE 2 diagram
1
Yamaha Motors
CYLINDER HEAD COMP6DA-W009A-05-9S
Required: 1
CYLINDER HEAD COMPLETE
Supersedes: 6DA-W009A-00-9S
$5283.64
You save $932.41
2
Yamaha Motors
Cylinder Head Assembly6DA-11110-02-9S
Required: 1
CYLINDER HEAD ASSY
Supersedes: 6DA-11110-00-9S
$2564.84
You save $312.96
3
Yamaha Motors
Valve Guide6DA-11133-10-00
Required: 16
.GUIDE, VALVE 1
$32.68
You save $5.77
-50%
4
Yamaha Motors
Taper Screw Plug90344-51008-00
Required: 8
.PLUG, TAPER SCREW
Supersedes: 90344-51019-00
In stock
Only 1 remaining
$1.52
You save $1.52
In stock
5+ in stock
$3.68
You save $0.92
$4.72
You save $0.83
7
Yamaha Motors
Bolt With Washer90119-07001-00
Required: 4
.BOLT, WITH WASHER
$17.55
You save $3.10
8
Yamaha Motors
Bolt With Washer90119-07234-00
Required: 16
.BOLT, WITH WASHER
$2.72
You save $0.48
9
Yamaha Motors
Straight Screw Plug90340-14M06-00
Required: 1
PLUG, STRAIGHT SCREW
In stock
5+ in stock
$11.36
You save $2.84
In stock
Only 2 remaining
$2.40
You save $0.60
-50%
11
Yamaha Motors
Anode Cover Assembly67F-11301-00-00
Required: 2
ANODE COVER ASSY
In stock
Only 1 remaining
$28.15
You save $28.15
12
Yamaha Motors
ANODE6ML-11325-00-00
Required: 1
.ANODE
Supersedes: 67F-11325-01-00
In stock
Only 3 remaining
$14.56
You save $3.64
13
Yamaha Motors
Anode Grommet67F-11328-01-00
Required: 1
.GROMMET, ANODE
Supersedes: 67F-11328-00-00
In stock
5+ in stock
$3.04
You save $0.76
14
Yamaha Motors
Flange Bolt90105-06M07-00
Required: 1
.BOLT, FLANGE
In stock
5+ in stock
$1.84
You save $0.46
In stock
Only 4 remaining
$2.92
You save $0.73
$4.17
You save $0.74
17
Yamaha Motors
Cylinder Head Gasket6DA-11181-00-00
Required: 1
.GASKET, CYLINDER HEAD 1
$140.59
You save $24.81
$6.54
You save $1.16
19
Yamaha Motors
Flat Fillister Screw90155-11002-00
Required: 10
SCREW, FLAT FILLISTER
$12.92
You save $2.28
$5.44
You save $0.96
$3.91
You save $0.69
22
Yamaha Motors
Cylinder Head Cover6DA-11191-00-00
Required: 1
COVER, CYLINDER HEAD 1
$197.95
You save $34.45
23
Yamaha Motors
Head Cover Gasket6DA-11193-00-00
Required: 1
.GASKET, HEAD COVER 1
$20.92
You save $5.23
24
Yamaha Motors
DEEP FLANGE BOLT95D95-06030-00
Required: 16
BOLT, FLANGE
Supersedes: 95895-06030-00
In stock
Only 5 remaining
$4.28
You save $1.07
25
Yamaha Motors
Spark Plug (NGK LFR6A-11)LFR-6A110-00-00
Required: 4
PLUG, SPARK (NGK LFR6A-11)
In stock
5+ in stock
$7.76
You save $1.94
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
