2011 Outboard 350hp - LF350XCA OIL PAN diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

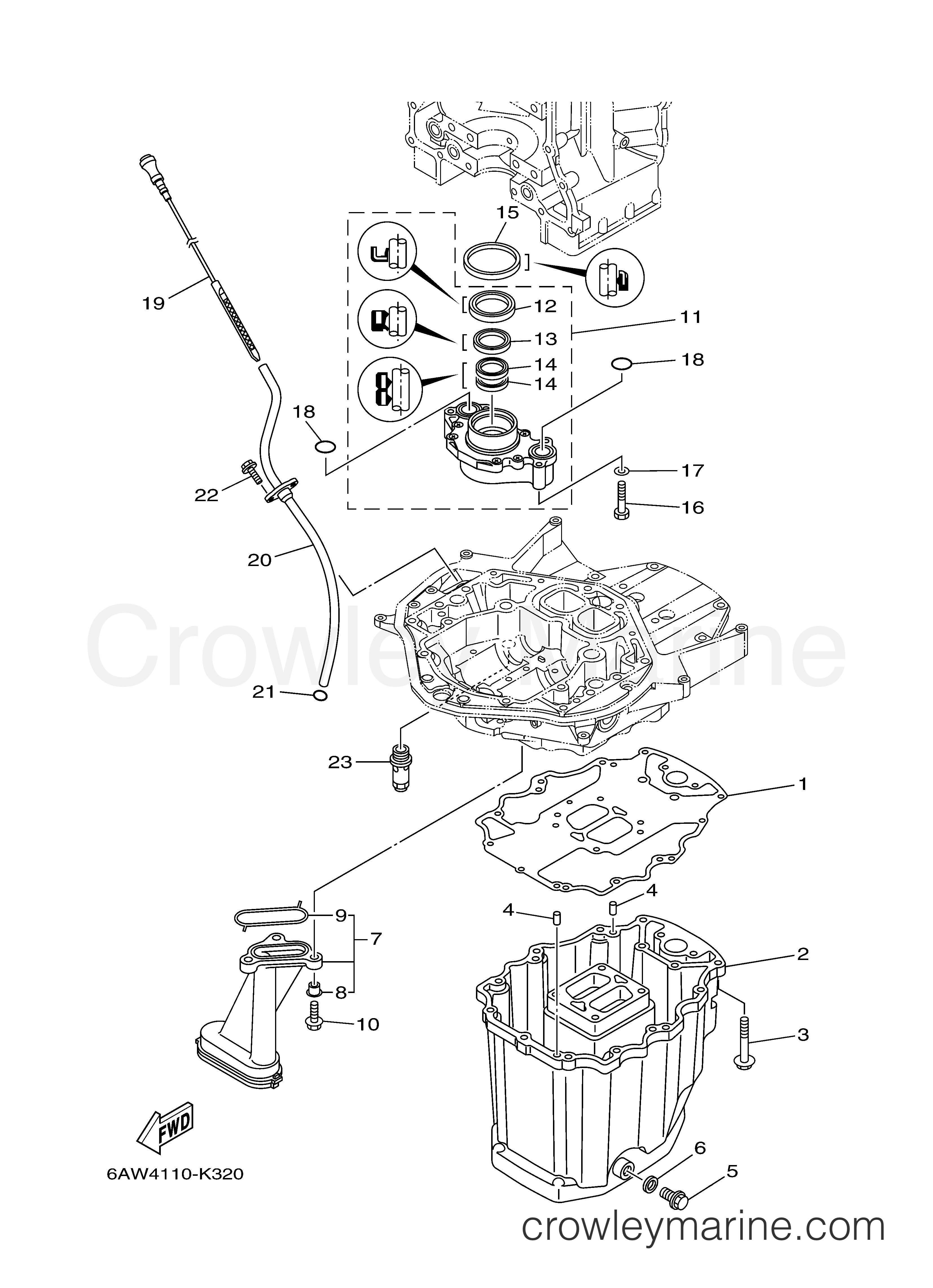

Yamaha Motors LF350XCA - OIL PAN
Change View:
Oil Pan Gasket
1
Yamaha Motors
Oil Pan Gasket6AW-15312-00-00
Required: 1
.GASKET, OIL PAN
Cross Ship
Leaves in 2-5 days
$121.60
$103.36
You save $18.24
More details
Oil Pan
2
Yamaha Motors
Oil Pan6AW-15311-00-CA
Required: 1
OIL PAN
Cross Ship
Leaves in 2-5 days
$776.40
$659.94
You save $116.46
More details
BOLT, HEXAGON W/W DE
3
Yamaha Motors
BOLT, HEXAGON W/W DE97E75-08570-00
Required: 13
BOLT, WITH WASHER
Supersedes: 97575-08570-00
Cross Ship
Leaves in 2-5 days
$3.05
$2.59
You save $0.46
More details
Oil Strainer
7
Yamaha Motors
Oil Strainer6AW-13411-00-00
Required: 1
STRAINER, OIL
Cross Ship
Leaves in 2-5 days
$66.05
$56.14
You save $9.91
More details
Oil Strainer Seal
9
Yamaha Motors
Oil Strainer Seal6AW-13415-00-00
Required: 1
.SEAL, OIL STRAINER
Cross Ship
Leaves in 2-5 days
$9.10
$7.73
You save $1.37
More details
Flange Bolt
10
Yamaha Motors
Flange Bolt95812-06025-00
Required: 3
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$0.75
$0.64
You save $0.11
More details
Oil Pump Assembly
11
Yamaha Motors
Oil Pump Assembly6AW-13300-02-00
Required: 1
OIL PUMP ASSY
Supersedes: 6AW-13300-00-00
Cross Ship
Leaves in 2-5 days
$463.90
$394.31
You save $69.58
More details
Oil Seal
14
Yamaha Motors
Oil Seal6AW-13631-00-00
Required: 2
.OIL SEAL
Cross Ship
Leaves in 2-5 days
$36.75
$31.24
You save $5.51
More details
BOLT
16
Yamaha Motors
BOLT97080-06050-00
Required: 4
BOLT
Supersedes: 97075-06050-00
Cross Ship
Leaves in 2-5 days
$5.55
$4.72
You save $0.83
More details
O-Ring
18
Yamaha Motors
O-Ring93210-26658-00
Required: 2
.O-RING
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Oil Level Plug
19
Yamaha Motors
Oil Level Plug6AW-15362-01-00
Required: 1
PLUG, OIL LEVEL
Supersedes: 6AW-15362-00-00
Cross Ship
Leaves in 2-5 days
$158.75
$134.94
You save $23.81
More details
Inlet Valve Guide
20
Yamaha Motors
Inlet Valve Guide6AW-15377-00-00
Required: 1
GUIDE, INLET
Cross Ship
Leaves in 2-5 days
$71.10
$60.44
You save $10.67
More details
Relief Valve Assembly
23
Yamaha Motors
Relief Valve Assembly6AW-13490-01-00
Required: 1
RELIEF VALVE ASSY
Cross Ship
Leaves in 2-5 days
$111.75
$94.99
You save $16.76
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
