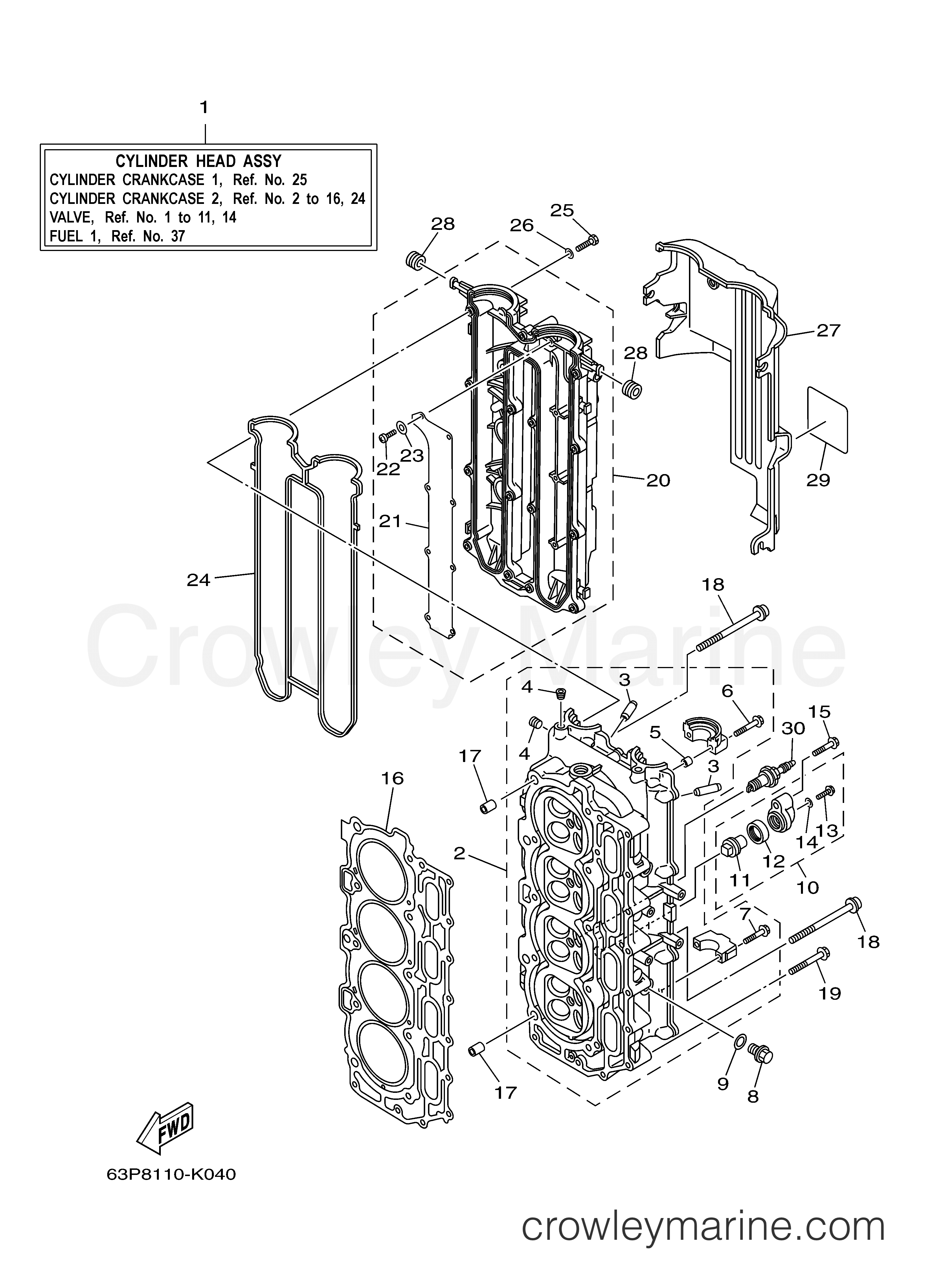

2010 Outboard 150hp - F150AET1X CYLINDER CRANKCASE 2 diagram
1
Yamaha Motors
Cylinder Head Assembly63P-W009A-02-9S
Required: 1
CYLINDER HEAD COMPLETE
$2341.33
You save $413.18
2
Yamaha Motors
Cylinder Head Assembly63P-11110-01-00
Required: 1
CYLINDER HEAD ASSY
$2992.25
You save $528.05
3
Yamaha Motors
Valve Guide69J-11133-10-00
Required: 16
.GUIDE, VALVE 1
$109.27
You save $19.28
4
Yamaha Motors
Taper Screw Plug90344-51008-00
Required: 3
.PLUG, TAPER SCREW
Supersedes: 90344-51019-00
In stock
Only 1 remaining
$2.59
You save $0.46
$4.72
You save $0.83
6
Yamaha Motors
Washer-Cam Caps Bolt90119-07235-00
Required: 4
.BOLT/WASHER-CAM CAPS
$3.10
You save $0.55
7
Yamaha Motors
Bolt With Washer90119-07234-00
Required: 16
.BOLT, WITH WASHER
$2.72
You save $0.48
8
Yamaha Motors
Straight Screw Plug90340-14M06-00
Required: 2
PLUG, STRAIGHT SCREW
In stock
5+ in stock
$12.07
You save $2.13
In stock
Only 2 remaining
$2.55
You save $0.45
10
Yamaha Motors
ANODE COVER ASSY69J-11301-02-00
Required: 2
ANODE COVER ASSY
Supersedes: 69J-11301-00-00
In stock
Only 2 remaining
$38.55
You save $6.80
11
Yamaha Motors
ANODE6ML-11325-00-00
Required: 1
.ANODE
Supersedes: 67F-11325-01-00
In stock
Only 3 remaining
$15.47
You save $2.73
12
Yamaha Motors
Anode Grommet67F-11328-01-00
Required: 1
.GROMMET, ANODE
Supersedes: 67F-11328-00-00
In stock
5+ in stock
$3.23
You save $0.57
13
Yamaha Motors
Flange Bolt90105-06M07-00
Required: 1
.BOLT, FLANGE
In stock
5+ in stock
$1.96
You save $0.35
In stock
Only 4 remaining
$3.10
You save $0.55
15
Yamaha Motors
BOLT, HEXAGON W/W DE97E75-08540-00
Required: 2
BOLT, WITH WASHER
Supersedes: 97575-08540-00
In stock
Only 5 remaining
$4.55
You save $0.80
16
Yamaha Motors
Cylinder Head Gasket63P-11181-00-00
Required: 1
.GASKET, CYLINDER HEAD 1
$120.23
You save $21.22
17
Yamaha Motors
Dowel Pin99530-14016-00
Required: 2
COLLAR
Supersedes: 90387-10M08-00
In stock
Only 4 remaining
$3.23
You save $0.57
18
Yamaha Motors
Flat Fillister Screw90155-10001-00
Required: 10
SCREW, FLAT FILLISTER
$9.95
You save $1.76
19
Yamaha Motors
Bolt with Washer90119-08M91-00
Required: 10
BOLT, WITH WASHER
In stock
5+ in stock
$4.17
You save $0.74
20
Yamaha Motors
Cylinder Head Cover63P-11191-00-9S
Required: 1
COVER, CYLINDER HEAD 1
$233.37
You save $41.18
21
Yamaha Motors
Breather Plate63P-11135-00-00
Required: 1
.PLATE, BREATHER 3
$17.68
You save $3.12
22
Yamaha Motors
Pan Head Screw98507-04008-00
Required: 8
.SCREW, PAN HEAD
$1.82
You save $0.32
$1.57
You save $0.28
24
Yamaha Motors
Head Cover Gasket63P-11193-00-00
Required: 1
.GASKET, HEAD COVER 1
In stock
Only 4 remaining
$40.33
You save $7.12
25
Yamaha Motors
Bolt97080-06030-00
Required: 13
BOLT
Supersedes: 97095-06030-00
In stock
5+ in stock
$3.49
You save $0.62
26
Yamaha Motors
Plate Washer92990-06600-00
Required: 13
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
27
Yamaha Motors
Cylinder Head Cover63P-11192-01-00
Required: 1
COVER, CYLINDER HEAD 2
In stock
Only 1 remaining
$45.35
You save $8.00
28
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-12497-00
Required: 5
GROMMET
Supersedes: 90480-12314-00
In stock
Only 4 remaining
$2.72
You save $0.48
$7.73
You save $1.37
30
Yamaha Motors
(NGK LFR5A-11) Spark PlugLFR-5A110-00-00
Required: 4
PLUG, SPARK (NGK LFR5A-11)
In stock
5+ in stock
$10.63
You save $1.88
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
