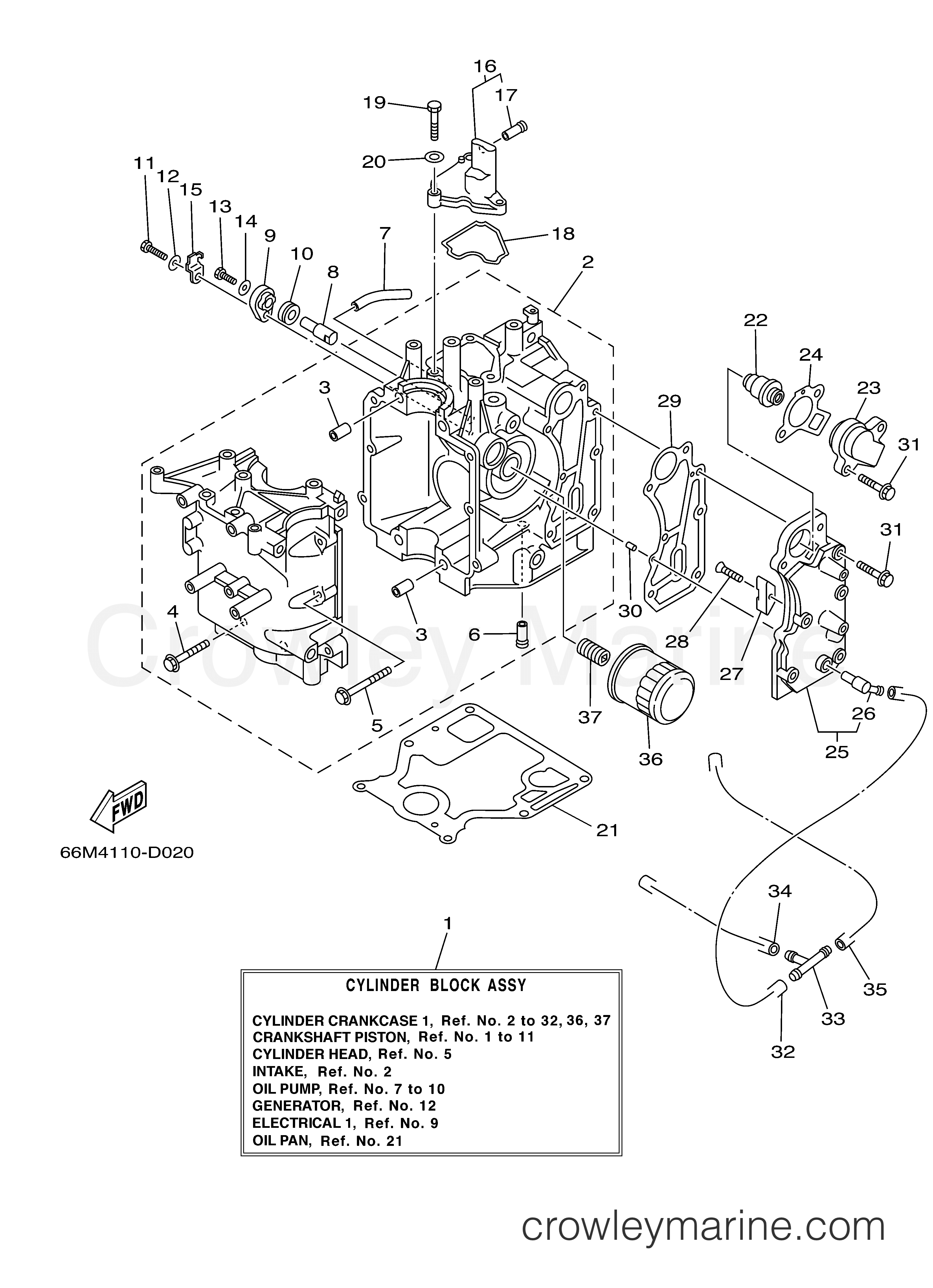

2005 Outboard 9.9hp - F9.9MSH2D CYLINDER CRANKCASE 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors F9.9MSH2D - CYLINDER CRANKCASE 1
Change View:
Cylinder Block Assembly
1
Yamaha Motors
Cylinder Block Assembly66M-W009B-13-1S
Required: 1
CYLINDER BLOCK ASSY
Supersedes: 66M-W009B-12-1S
Cross Ship
Leaves in 2-5 days
$2004.45
$1703.78
You save $300.67
More details
Crankcase Assembly
2
Yamaha Motors
Crankcase Assembly66M-15100-03-00
Required: 1
CRANKCASE ASSY
Supersedes: 66M-15100-02-1S
Cross Ship
Leaves in 2-5 days
$2061.85
$1752.57
You save $309.28
More details
Bolt w/ Washer
5
Yamaha Motors
Bolt w/ Washer90119-06M14-00
Required: 6
.BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Joint Pipe
6
Yamaha Motors
Joint Pipe6E5-24377-00-00
Required: 1
.PIPE, JOINT 2
Cross Ship
Leaves in 2-5 days
$12.00
$10.20
You save $1.80
More details
Hose
7
Yamaha Motors
Hose90445-10752-00
Required: 1
HOSE (L65)
Supersedes: 90445-10M46-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.39
You save $1.10
More details
Breather Cover
16
Yamaha Motors
Breather Cover66M-11168-00-1S
Required: 1
COVER, BREATHER
Cross Ship
Leaves in 2-5 days
$50.65
$43.05
You save $7.60
More details
Joint Pipe
17
Yamaha Motors
Joint Pipe6E5-24377-00-00
Required: 1
.PIPE, JOINT 2
Cross Ship
Leaves in 2-5 days
$12.00
$10.20
You save $1.80
More details
Cylinder Seal
18
Yamaha Motors
Cylinder Seal66M-11357-00-00
Required: 1
.SEAL, CYLINDER 3
Cross Ship
Leaves in 2-5 days
$11.80
$10.03
You save $1.77
More details
Cylinder Gasket
21
Yamaha Motors
Cylinder Gasket66M-11351-10-00
Required: 1
.GASKET, CYLINDER
Cross Ship
Leaves in 2-5 days
$50.10
$40.08
You save $10.02
More details
Exhaust Outer Cover
25
Yamaha Motors
Exhaust Outer Cover66M-41113-30-1S
Required: 1
OUTER COVER, EXHAUST
Cross Ship
Leaves in 2-5 days
$67.35
$57.25
You save $10.10
More details
Hose
34
Yamaha Motors
Hose90445-09089-00
Required: 1
HOSE (L170)
Supersedes: 90445-09086-00
Cross Ship
Leaves in 2-5 days
$7.99
$6.79
You save $1.20
More details
Union Bolt
37
Yamaha Motors
Union Bolt90401-20M00-00
Required: 1
BOLT, UNION
Cross Ship
Leaves in 2-5 days
$15.80
$13.43
You save $2.37
More details
