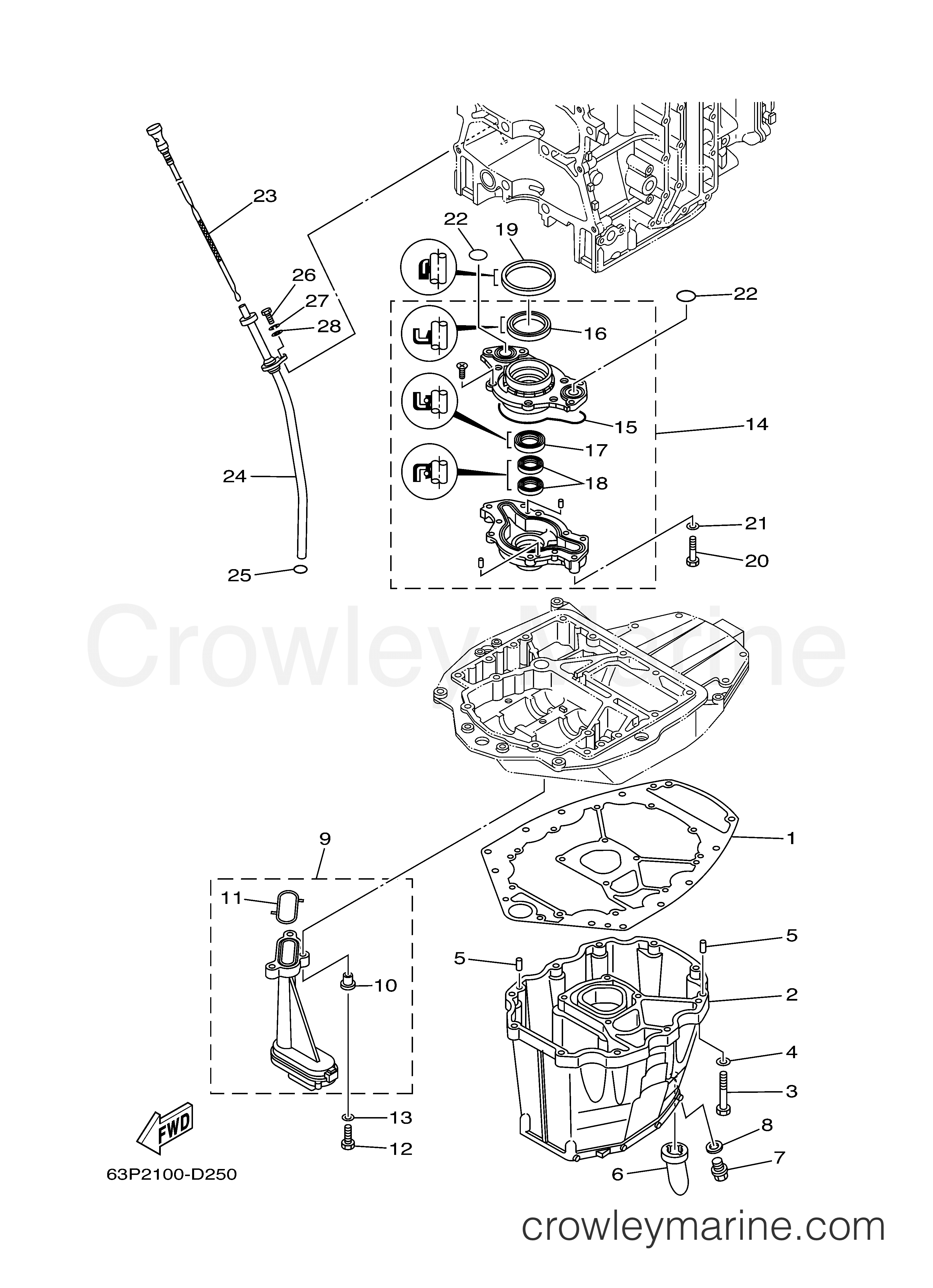

2005 Outboard 150hp - F150TLRD OIL PAN diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors F150TLRD - OIL PAN
Change View:
Oil Pan Gasket
1
Yamaha Motors
Oil Pan Gasket63P-15312-01-00
Required: 1
.GASKET, OIL PAN
Supersedes: 63P-15312-00-00
Cross Ship
Leaves in 2-5 days
$84.65
$71.95
You save $12.70
More details
OIL PAN
2
Yamaha Motors
OIL PAN63P-15311-04-CA
Required: 1
OIL PAN
Supersedes: 63P-15311-00-5B
Cross Ship
Leaves in 2-5 days
$664.00
$564.40
You save $99.60
More details
Damper
6
Yamaha Motors
Damper63P-15316-01-00
Required: 1
DAMPER 1
Supersedes: 63P-15316-00-00
Cross Ship
Leaves in 2-5 days
$8.40
$7.14
You save $1.26
More details
Oil Strainer
9
Yamaha Motors
Oil Strainer63P-13411-00-00
Required: 1
STRAINER, OIL
Cross Ship
Leaves in 2-5 days
$58.45
$49.68
You save $8.77
More details
Oil Strainer Seal
11
Yamaha Motors
Oil Strainer Seal63P-13415-00-00
Required: 1
.SEAL, OIL STRAINER
Cross Ship
Leaves in 2-5 days
$11.35
$9.08
You save $2.27
More details
Bolt
12
Yamaha Motors
Bolt97017-06025-00
Required: 3
BOLT, HEXAGON
Supersedes: 97027-06025-00
Cross Ship
Leaves in 2-5 days
$4.55
$3.87
You save $0.68
More details
Oil Pump Assembly
14
Yamaha Motors
Oil Pump Assembly63P-13300-00-00
Required: 1
OIL PUMP ASSY
Cross Ship
Leaves in 2-5 days
$547.50
$437.95
You save $109.55
More details
Oil Seal
17
Yamaha Motors
Oil Seal69J-13119-00-00
Required: 1
.OIL SEAL
Cross Ship
Leaves in 2-5 days
$74.75
$63.54
You save $11.21
More details
Oil Level Plug
23
Yamaha Motors
Oil Level Plug63P-15362-00-00
Required: 1
PLUG, OIL LEVEL
Cross Ship
Leaves in 2-5 days
$40.05
$34.04
You save $6.01
More details
Inlet Valve Guide
24
Yamaha Motors
Inlet Valve Guide63P-15377-00-00
Required: 1
GUIDE, INLET
Cross Ship
Leaves in 2-5 days
$74.30
$63.16
You save $11.15
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
