All diagrams for this model

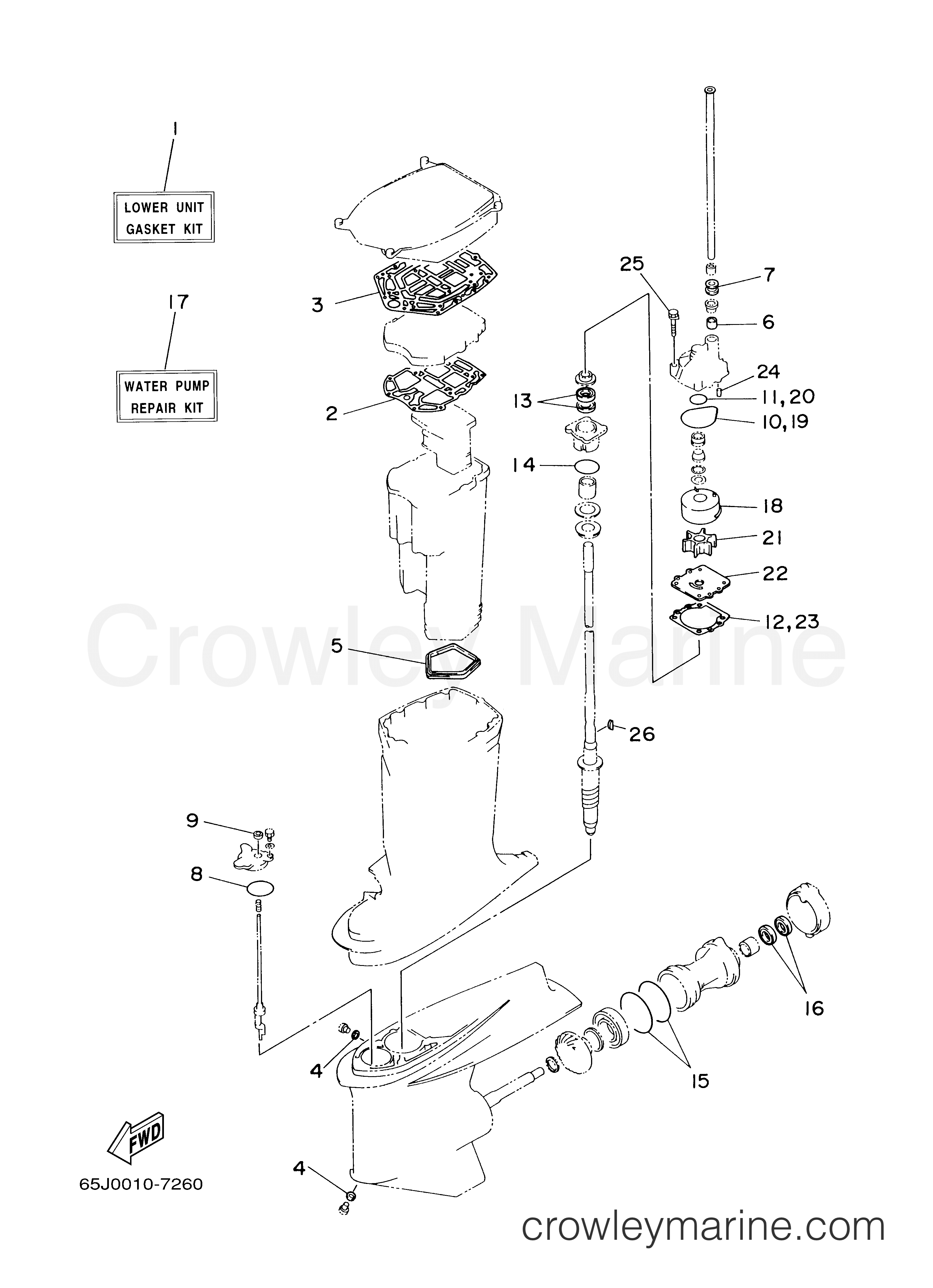

2003 Outboard 250hp - VX250TLRB REPAIR KIT 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors VX250TLRB - REPAIR KIT 2
Change View:
Lower Unit Gasket Kit
1
Yamaha Motors
Lower Unit Gasket Kit66K-W0001-20-00
Required: 1
LOWER UNIT GASKET KIT
Cross Ship
Leaves in 2-5 days
$160.20
$136.17
You save $24.03
More details
Exhaust Manifold Gasket
2
Yamaha Motors
Exhaust Manifold Gasket6D0-41134-00-00
Required: 1
.GASKET, EXHAUST MANIFOLD
Supersedes: 61A-41134-A0-00
Cross Ship
Leaves in 2-5 days
$26.15
$22.23
You save $3.92
More details
Muffler Gasket
5
Yamaha Motors
Muffler Gasket66K-45123-00-00
Required: 1
.GASKET, MUFFLER
Cross Ship
Leaves in 2-5 days
$44.85
$38.12
You save $6.73
More details
"O"-Ring
8
Yamaha Motors
"O"-Ring93210-64488-00
Required: 1
.O-RING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
