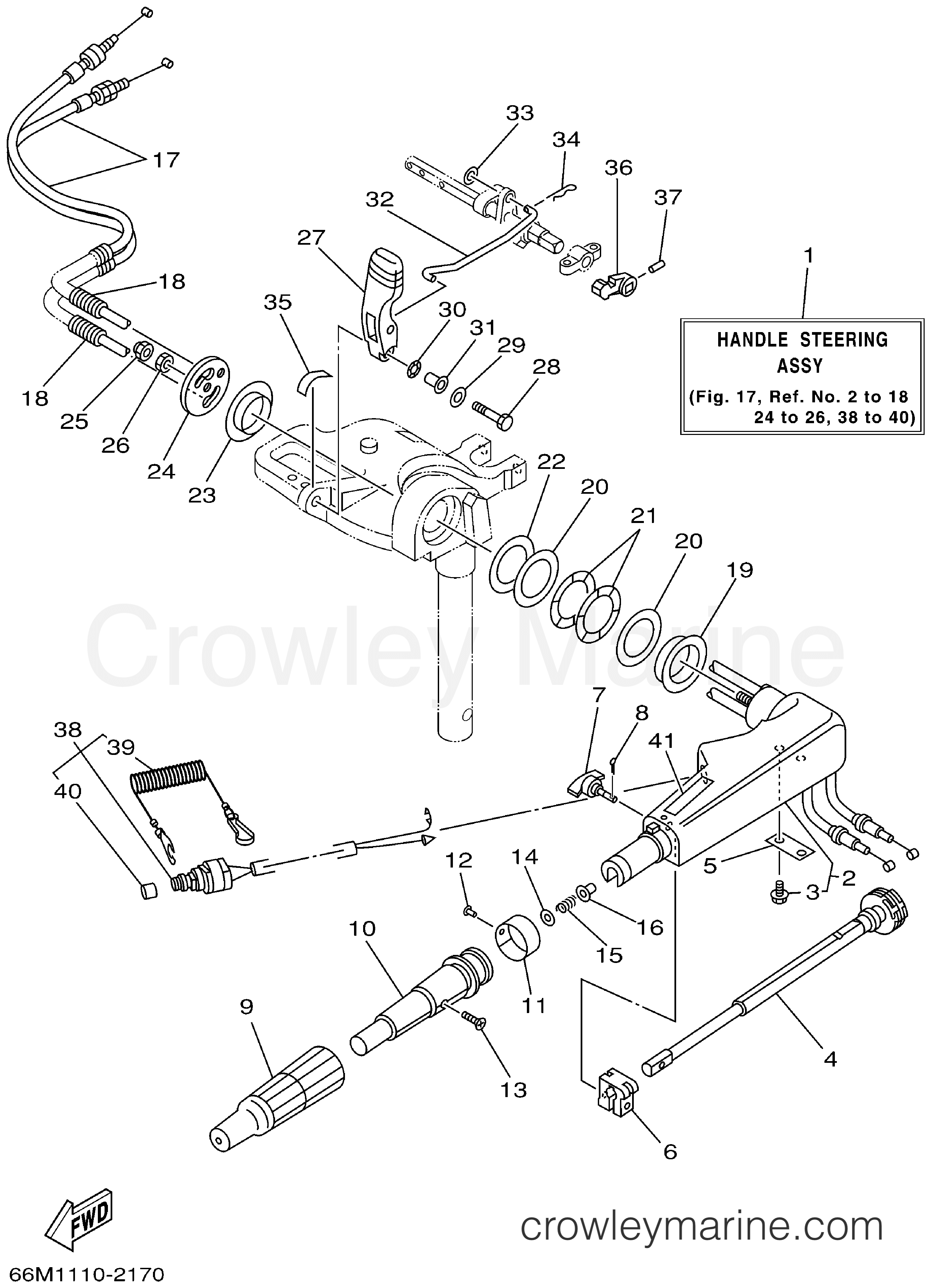

2002 Outboard 15hp - F15MLHA STEERING diagram
1
Yamaha Motors
Handle Steering Assembly66M-W0084-02-8D
Required: 1
HANDLE STEERING ASSY
Supersedes: 66M-W0084-00-4D
$244.55
You save $43.16
2
Yamaha Motors
Steering Handle65W-42101-01-8D
Required: 1
HANDLE, STEERING
Supersedes: 65W-42101-01-4D
$99.19
You save $17.50
In stock
Only 5 remaining
$1.54
You save $0.27
4
Yamaha Motors
Throttle Lever65W-42138-00-00
Required: 1
LEVER, THROTTLE
$27.75
You save $4.90
$5.31
You save $0.94
6
Yamaha Motors
Steering Handle Grip Friction6G1-42126-00-00
Required: 1
FRICTION, STEERING HANDLE GRIP
$12.15
You save $2.14
7
Yamaha Motors
Friction Adjusting Bolt65W-42125-00-00
Required: 1
BOLT, FRICTION ADJUSTING
$9.69
You save $1.71
$2.29
You save $0.41
9
Yamaha Motors
Rubber Handle66M-42177-01-00
Required: 1
RUBBER, HANDLE
Supersedes: 66M-42177-00-00
In stock
5+ in stock
$19.68
You save $3.47
10
Yamaha Motors
Steering Handle Grip66M-42119-01-00
Required: 1
GRIP, STEERING HANDLE
Supersedes: 66M-42119-00-00
In stock
5+ in stock
$22.99
You save $4.06
11
Yamaha Motors
Throttle Indicator689-42137-20-00
Required: 1
INDICATOR, THROTTLE
$12.92
You save $2.28
In stock
5+ in stock
$4.72
You save $0.83
In stock
Only 5 remaining
$2.85
You save $0.50
14
Yamaha Motors
Plate Washer92990-10600-00
Required: 1
WASHER, PLATE
Supersedes: 92903-10600-00
In stock
5+ in stock
$2.55
You save $0.45
15
Yamaha Motors
Compression Spring90501-23215-00
Required: 1
SPRING, COMPRESSION
In stock
Only 4 remaining
$7.01
You save $1.24
In stock
5+ in stock
$4.72
You save $0.83
17
Yamaha Motors
Throttle Cable66M-26311-00-00
Required: 2
CABLE, THROTTLE 1
$32.77
You save $5.78
18
Yamaha Motors
Hose (L140)90446-10M86-00
Required: 2
HOSE (L75)
Supersedes: 90446-10M87-00
$3.57
You save $0.63
19
Yamaha Motors
Bushing66R-42171-00-00
Required: 1
BUSH
Supersedes: 90386-40MA0-00
$5.31
You save $0.94
20
Yamaha Motors
Plate Washer90201-43M00-00
Required: 2
WASHER, PLATE
$3.44
You save $0.61
In stock
Only 1 remaining
$9.44
You save $1.67
22
Yamaha Motors
Plate Washer90202-43M57-00
Required: 1
WASHER, PLATE
In stock
Only 1 remaining
$3.02
You save $0.53
In stock
Only 2 remaining
$3.74
You save $0.66
24
Yamaha Motors
Handle Steering Cover65W-42131-01-00
Required: 1
COVER, HANDLE STEERING
Supersedes: 66M-42131-01-00
In stock
Only 1 remaining
$16.45
You save $2.90
$11.05
You save $1.95
$5.23
You save $0.92
27
Yamaha Motors
Gear Shift Handle66M-44111-01-00
Required: 1
HANDLE, GEAR SHIFT
In stock
Only 1 remaining
$31.20
You save $5.51
28
Yamaha Motors
Bolt97080-06030-00
Required: 1
BOLT
Supersedes: 97095-06030-00
In stock
5+ in stock
$3.49
You save $0.62
29
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
In stock
Only 5 remaining
$6.29
You save $1.11
$21.46
You save $3.79
32
Yamaha Motors
Shift Rod Link66M-44124-00-00
Required: 1
LINK, SHIFT ROD
In stock
Only 1 remaining
$28.05
You save $4.95
33
Yamaha Motors
Plain Washer92990-06200-00
Required: 1
.WASHER, PLAIN
$0.85
You save $0.15
In stock
5+ in stock
$1.32
You save $0.23
35
Yamaha Motors
Shift Indicator6X3-44191-00-00
Required: 1
INDICATOR, SHIFT
Supersedes: 6E0-44191-11-00
$9.10
You save $1.61
36
Yamaha Motors
Obsolete Yamaha Part65W-44173-01-00
Required: 1
LEVER, SHIFT CONTROL
Supersedes: 65W-44173-00-00
$5.31
You save $0.94
$3.36
You save $0.59
38
Yamaha Motors
Engine Stop Switch Assembly65W-82575-01-00
Required: 1
ENGINE STOP SWITCH ASSY
In stock
5+ in stock
$66.72
You save $11.78
39
Yamaha Motors
Stop Switch Lanyard682-82556-00-00
Required: 1
.LANYARD, STOP SWITCH
In stock
5+ in stock
$6.97
You save $1.23
In stock
5+ in stock
$7.69
You save $1.36
41
Yamaha Motors
Caution Label6E0-83627-41-00
Required: 1
LABEL, CAUTION 7
$9.69
You save $1.71
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
