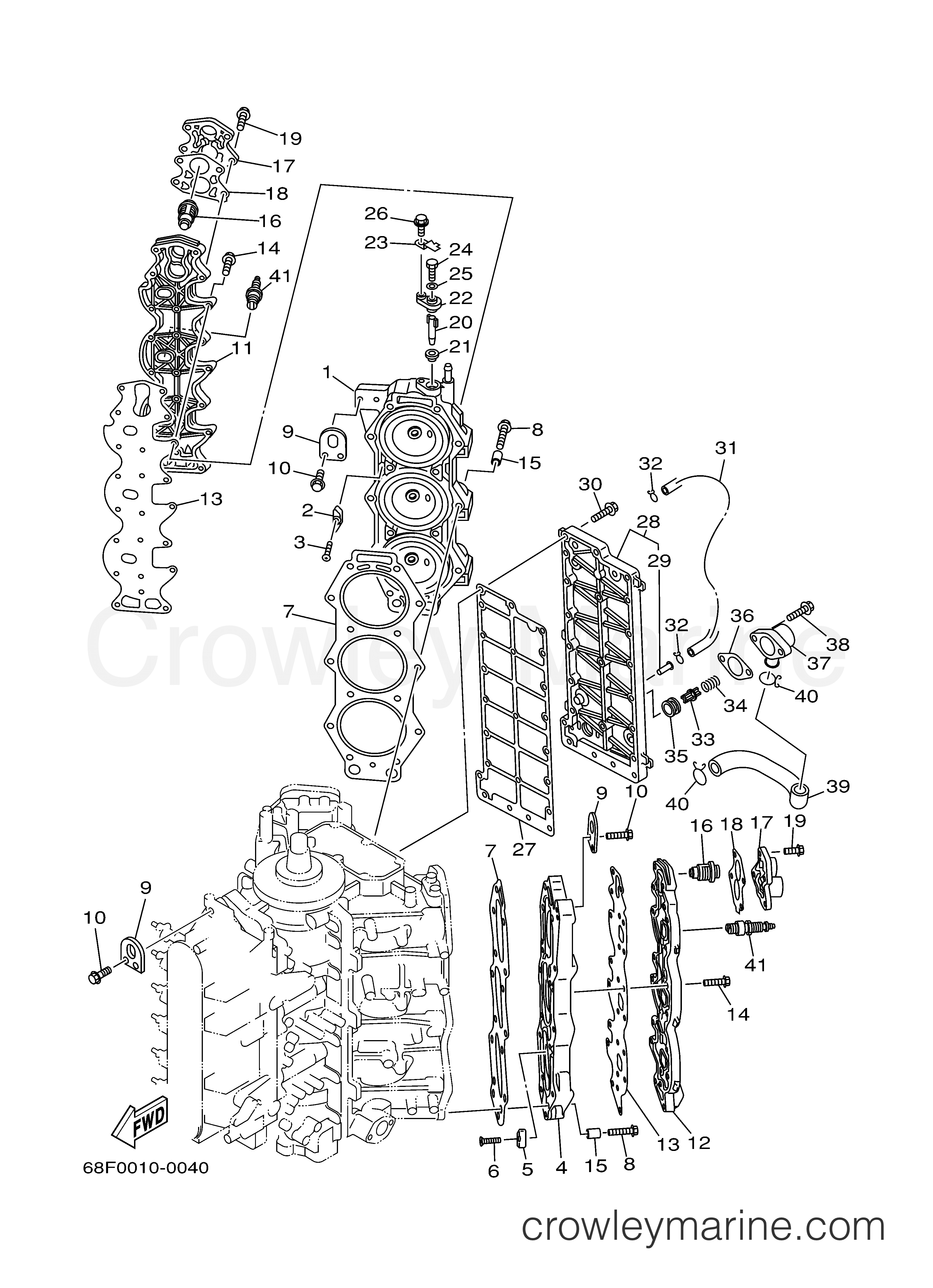

2000 Outboard 200hp - LZ200TXRY CYLINDER CRANKCASE 2 diagram
1
Yamaha Motors
Cylinder Head68F-11111-00-1S
Required: 1
HEAD, CYLINDER 1
Supersedes: 68F-11111-00-94
$305.36
You save $53.89
In stock
5+ in stock
$4.40
You save $1.10
3
Yamaha Motors
Flat Head Screw98780-04014-00
Required: 3
SCREW, FLAT HEAD
Supersedes: 98780-04015-00
In stock
Only 4 remaining
$2.84
You save $0.71
4
Yamaha Motors
Cylinder Head68F-11121-00-1S
Required: 1
HEAD, CYLINDER 2
Supersedes: 68F-11121-00-94
$408.95
You save $72.35
In stock
5+ in stock
$4.40
You save $1.10
6
Yamaha Motors
Flat Head Screw98780-04014-00
Required: 4
SCREW, FLAT HEAD
Supersedes: 98780-04015-00
In stock
Only 4 remaining
$2.84
You save $0.71
7
Yamaha Motors
Cylinder Head Gasket68F-11181-00-00
Required: 2
.GASKET, CYLINDER HEAD 1
$71.80
You save $17.95
8
Yamaha Motors
Bolt with Washer90119-08MA8-00
Required: 28
BOLT, WITH WASHER
In stock
5+ in stock
$3.92
You save $0.98
9
Yamaha Motors
Engine Hanger63P-11119-10-00
Required: 3
HANGER, ENGINE
Supersedes: 68F-11119-00-00
In stock
Only 1 remaining
$9.82
You save $1.73
10
Yamaha Motors
Bolt with Washer90119-06MA2-00
Required: 5
BOLT, WITH WASHER
In stock
5+ in stock
$2.56
You save $0.64
11
Yamaha Motors
Cylinder Head Cover68F-11191-00-1S
Required: 1
COVER, CYLINDER HEAD 1
$129.03
You save $22.77
12
Yamaha Motors
Cylinder Head Cover68F-11192-00-1S
Required: 1
COVER, CYLINDER HEAD 2
$129.95
You save $22.70
13
Yamaha Motors
Head Cover Gasket68F-11193-02-00
Required: 2
.GASKET, HEAD COVER 1
Supersedes: 68F-11193-01-00
$36.21
You save $6.39
14
Yamaha Motors
Bolt with Washer90119-06MA4-00
Required: 36
BOLT, WITH WASHER
In stock
Only 1 remaining
$3.52
You save $0.88
$4.72
You save $0.83
16
Yamaha Motors
Thermostat6E5-12411-30-00
Required: 2
THERMOSTAT
Supersedes: 6E5-12411-20-00
In stock
5+ in stock
$25.88
You save $6.47
17
Yamaha Motors
Thermostat Cover688-12413-00-1S
Required: 2
COVER, THERMOSTAT
In stock
Only 3 remaining
$12.12
You save $3.03
18
Yamaha Motors
Cover Gasket688-12414-A1-00
Required: 2
.GASKET, COVER
In stock
5+ in stock
$4.68
You save $1.17
19
Yamaha Motors
Bolt with Washer90119-06MA6-00
Required: 8
BOLT, WITH WASHER
In stock
Only 2 remaining
$3.68
You save $0.92
In stock
5+ in stock
$9.12
You save $2.28
21
Yamaha Motors
Anode Grommet66M-11328-01-00
Required: 1
GROMMET, ANODE
Supersedes: 66M-11328-00-00
In stock
5+ in stock
$1.08
You save $0.27
In stock
Only 2 remaining
$8.56
You save $2.14
In stock
Only 3 remaining
$5.00
You save $1.25
In stock
Only 1 remaining
$1.40
You save $0.35
25
Yamaha Motors
Plate Washer92990-05600-00
Required: 1
WASHER
Supersedes: 92995-05600-00
In stock
Only 3 remaining
$0.64
You save $0.16
26
Yamaha Motors
Bolt with Washer90119-06MA2-00
Required: 1
BOLT, WITH WASHER
In stock
5+ in stock
$2.56
You save $0.64
27
Yamaha Motors
Exhaust Outer Cover Gasket68F-41114-00-00
Required: 1
.GASKET, EXHAUST OUTER COVER
$31.83
You save $5.62
28
Yamaha Motors
Obsolete Yamaha Part68F-41113-19-1S
Required: 1
OUTER COVER, EXHAUST
Supersedes: 68F-41113-00-1S
$217.05
You save $38.30
29
Yamaha Motors
Joint Pipe652-24461-00-00
Required: 1
.PIPE, JOINT 4
Supersedes: 650-24378-00-00
In stock
Only 1 remaining
$4.64
You save $1.16
30
Yamaha Motors
Bolt with Washer90119-06MA4-00
Required: 23
BOLT, WITH WASHER
In stock
Only 1 remaining
$3.52
You save $0.88
31
Yamaha Motors
Hose90445-092K1-00
Required: 1
HOSE (L600)
Supersedes: 90445-09M25-00
In stock
5+ in stock
$9.99
You save $2.50
$3.24
You save $0.81
33
Yamaha Motors
PRESSURE CONTROL VALVE6G5-12416-00-00
Required: 1
VALVE, PRESSURE CONTROL
In stock
Only 5 remaining
$11.00
You save $2.75
34
Yamaha Motors
Compression Spring90501-16M11-00
Required: 1
SPRING, COMPRESSION
In stock
5+ in stock
$6.08
You save $1.52
In stock
5+ in stock
$3.52
You save $0.88
In stock
5+ in stock
$4.52
You save $1.13
37
Yamaha Motors
Bypass Cover6G5-11372-00-1S
Required: 1
COVER, BYPASS 2
In stock
5+ in stock
$15.12
You save $3.78
38
Yamaha Motors
Bolt with Washer90119-06MA2-00
Required: 2
BOLT, WITH WASHER
In stock
5+ in stock
$2.56
You save $0.64
$20.91
You save $3.69
In stock
Only 2 remaining
$4.08
You save $0.72
41
Yamaha Motors
BKR7ES-11 NGKBKR-7ES11-40-00
Required: 6
PLUG, SPARK
Supersedes: NGK-BKR7E-S1-10
In stock
Only 1 remaining
$2.76
You save $0.49
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
