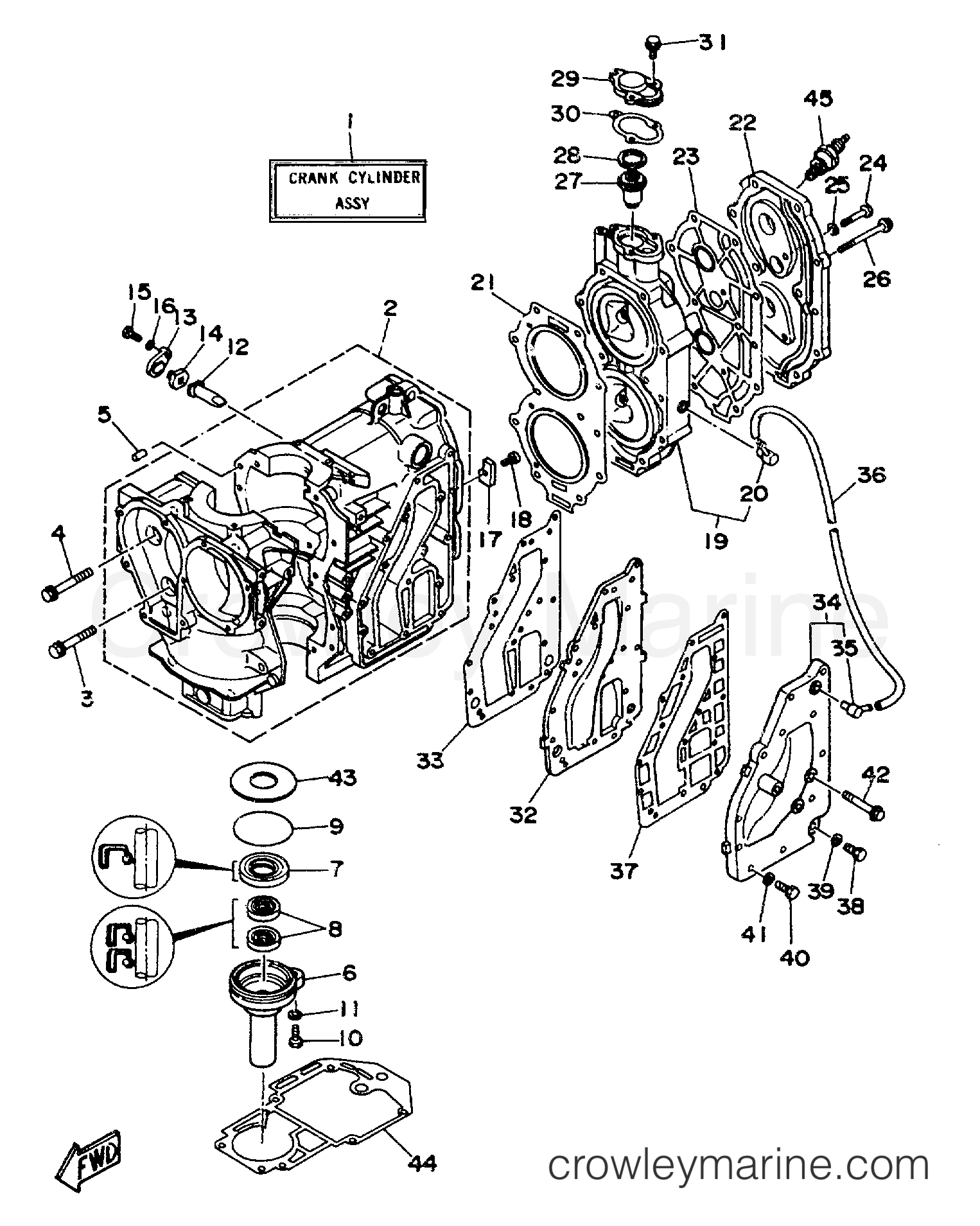

1994 Outboard 30hp - C30MLHS CYLINDER CRANKCASE diagram
1
Yamaha Motors
CRANK CYLINDER ASSEMBLY (REF. #2~44 & CRANKSHAFT - PIS)61T-W0090-00-4D
Required: 1
CRANK CYLINDER ASSEMBLY (REF. #2~44 & CRANKSHAFT - PIS)
$2204.89
You save $389.10
2
Yamaha Motors
Obsolete Yamaha Part61N-15100-01-1S
Required: 1
CRANKCASE ASSEMBLY
Supersedes: 61N-15100-00-94
$669.29
You save $118.11
3
Yamaha Motors
Bolt with Washer90119-08009-00
Required: 2
BOLT, WITH WASHER
Supersedes: 90119-08M18-00
$2.17
You save $0.38
4
Yamaha Motors
Bolt w/ Washer90119-08M66-00
Required: 8
BOLT, WITH WASHER
Supersedes: 90119-08M20-00
In stock
Only 3 remaining
$3.10
You save $0.55
In stock
5+ in stock
$3.91
You save $0.69
6
Yamaha Motors
Oil Seal Housing689-15396-01-CA
Required: 1
HOUSING, OIL SEAL
Supersedes: 689-15396-01-5B
$21.80
You save $3.85
In stock
5+ in stock
$10.58
You save $1.87
In stock
5+ in stock
$7.01
You save $1.24
In stock
5+ in stock
$5.99
You save $1.06
10
Yamaha Motors
BOLT (61K)97095-06022-00
Required: 1
BOLT
Supersedes: 97395-06022-00
$5.94
You save $1.05
11
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
In stock
5+ in stock
$3.78
You save $0.67
$27.63
You save $4.88
14
Yamaha Motors
ANODE GROMMET6H3-11328-01-00
Required: 1
GROMMET, ANODE
Supersedes: 6H3-11328-00-00
In stock
5+ in stock
$5.74
You save $1.01
$2.35
You save $0.41
16
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
$5.23
You save $0.92
18
Yamaha Motors
Flat Head Screw98780-06020-00
Required: 1
SCREW, FLAT HEAD
In stock
Only 1 remaining
$8.07
You save $1.42
19
Yamaha Motors
Obsolete Yamaha Part61T-11111-01-1S
Required: 1
HEAD, CYLINDER 1
Supersedes: 61T-11111-01-94
$169.87
You save $29.98
20
Yamaha Motors
Hose Nipple676-11372-00-00
Required: 1
.NIPPLE, HOSE
In stock
Only 4 remaining
$13.18
You save $2.33
21
Yamaha Motors
Cylinder Head Gasket61N-11181-A2-00
Required: 1
GASKET, CYLINDER HEAD 1
Supersedes: 61N-11181-A0-00
In stock
Only 1 remaining
$31.24
You save $5.51
22
Yamaha Motors
Obsolete Yamaha Part61N-11191-01-1S
Required: 1
COVER, CYLINDER HEAD 1
Supersedes: 61N-11191-01-9M
$49.94
You save $8.81
23
Yamaha Motors
Obsolete Yamaha Part61T-11193-A1-00
Required: 1
GASKET, HEAD COVER 1
Supersedes: 61T-11193-A0-00
In stock
Only 1 remaining
$17.17
You save $3.03
$1.36
You save $0.24
25
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
26
Yamaha Motors
Bolt with Washer90119-08015-00
Required: 11
BOLT, WITH WASHER
Supersedes: 90119-08M29-00
In stock
5+ in stock
$2.42
You save $0.43
27
Yamaha Motors
Thermostat6E5-12411-02-00
Required: 1
THERMOSTAT
Supersedes: 6E5-12411-01-00
In stock
5+ in stock
$28.22
You save $4.98
28
Yamaha Motors
Plate Washer90201-21567-00
Required: 1
WASHER, PLATE
In stock
Only 3 remaining
$6.21
You save $1.10
29
Yamaha Motors
Obsolete Yamaha Part655-12413-01-1S
Required: 1
COVER, THERMOSTAT
Supersedes: 655-12413-01-9M
$18.36
You save $3.24
In stock
Only 4 remaining
$5.10
You save $0.90
31
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06520-00
Required: 3
BOLT, WITH WASHER
Supersedes: 97595-06520-00
In stock
Only 2 remaining
$2.59
You save $0.46
32
Yamaha Motors
Obsolete Yamaha Part6K8-41121-00-1S
Required: 1
INNER COVER, EXHAUST
Supersedes: 6K8-41121-00-9M
In stock
Only 1 remaining
$34.84
You save $6.15
33
Yamaha Motors
Exhaust Inner Cover Gasket6K8-41122-A1-00
Required: 1
GASKET, EXHAUST INNER COVER
$15.72
You save $2.77
34
Yamaha Motors
Exhaust Outer Cover61N-41123-01-1S
Required: 1
OUTER COVER, EXHAUST
Supersedes: 61N-41123-00-9M
$40.55
You save $7.16
35
Yamaha Motors
Hose Nipple676-11372-00-00
Required: 1
.NIPPLE, HOSE
In stock
Only 4 remaining
$13.18
You save $2.33
$5.70
You save $1.00
37
Yamaha Motors
Exhaust Outer Cover Gasket6K8-41124-A1-00
Required: 1
GASKET, EXHAUST OUTER COVER
$15.72
You save $2.77
$2.85
You save $0.50
39
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
40
Yamaha Motors
Bolt97080-06030-00
Required: 11
BOLT
Supersedes: 97095-06030-00
In stock
5+ in stock
$3.49
You save $0.62
In stock
5+ in stock
$2.42
You save $0.43
42
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06550-00
Required: 3
BOLT, WITH WASHER
Supersedes: 90119-06MA0-00
$1.57
You save $0.28
43
Yamaha Motors
Plate Washer90201-50306-00
Required: 1
WASHER, PLATE
$5.61
You save $0.99
44
Yamaha Motors
Upper Casing Gasket61T-45113-A0-00
Required: 1
GASKET, UPPER CASING
In stock
Only 1 remaining
$14.88
You save $2.63
45
Yamaha Motors
NGK B8HS-10 SCREW TOP SPARK PLUGB8H-S1000-00-00
Required: 2
PLUG, SPARK (NGK B8HS-10)
Supersedes: NGK-B8HS1-00-00
In stock
5+ in stock
$4.00
You save $0.71
45
Yamaha Motors
Spark Plug NGK BR8HS-10BR8-HS100-00-00
Required: 2
PLUG, SPARK (NGK BR8HS-10)
Supersedes: NGK-BR8HS-10-00
In stock
5+ in stock
$4.00
You save $0.71
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
