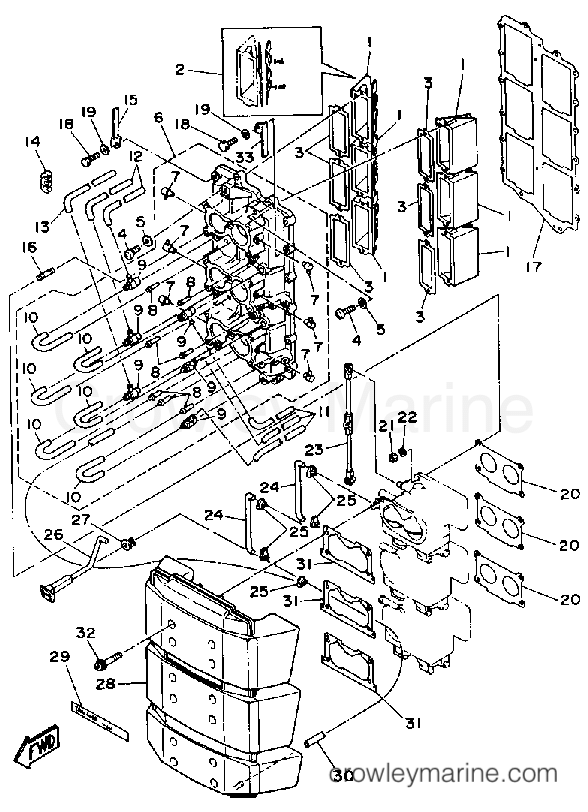

1990 Outboard 200hp - 200ETLD-JD INTAKE diagram
1
Yamaha Motors
Reed Valve Assembly6E5-13610-00-00
Required: 6
REED VALVE ASSY
$88.87
You save $15.68
1
Yamaha Motors
Reed Valve Assembly6G5-13610-00-00
Required: 6
REED VALVE ASSY
$87.00
You save $15.35
In stock
Only 3 remaining
$61.12
You save $10.79
3
Yamaha Motors
Valve Seat Gasket6E5-13621-A1-00
Required: 6
GASKET, VALVE SEAT
Supersedes: 6E5-13621-00-00
In stock
5+ in stock
$5.35
You save $0.95
4
Yamaha Motors
Pan Head Screw97885-05016-00
Required: 12
SCREW, PAN HEAD
Supersedes: 98580-05016-00
In stock
5+ in stock
$3.91
You save $0.69
5
Yamaha Motors
Plate Washer92990-05600-00
Required: 12
WASHER, PLATE
In stock
Only 4 remaining
$0.68
You save $0.12
6
Yamaha Motors
Manifold6G5-13641-11-1S
Required: 1
MANIFOLD 1
Supersedes: 6G5-13641-10-94
$276.50
You save $48.80
7
Yamaha Motors
Nozzle6E5-13552-01-00
Required: 6
.NOZZLE
Supersedes: 6E5-13552-00-00
In stock
Only 3 remaining
$5.44
You save $0.96
$6.88
You save $1.21
9
Yamaha Motors
Check Valve Assembly6E5-11370-01-00
Required: 6
.CHECK VALVE ASSY
Supersedes: 6E5-11370-00-00
In stock
Only 2 remaining
$13.56
You save $2.39
10
Yamaha Motors
Hose (L200)90445-07MA3-00
Required: 6
.HOSE (L70)
Supersedes: 90445-07M28-00
In stock
5+ in stock
$6.29
You save $1.11
11
Yamaha Motors
Hose (L390)90445-07M90-00
Required: 3
HOSE (L340)
Supersedes: 90445-07M45-00
In stock
Only 2 remaining
$6.29
You save $1.11
12
Yamaha Motors
Hose (L390)90445-07M90-00
Required: 2
HOSE (L360)
Supersedes: 90445-07M46-00
In stock
Only 2 remaining
$6.29
You save $1.11
13
Yamaha Motors
Hose90445-07006-00
Required: 1
HOSE (L410)
Supersedes: 90445-07M59-00
In stock
Only 1 remaining
$21.24
You save $3.75
$3.02
You save $0.53
$25.24
You save $4.46
In stock
Only 1 remaining
$5.06
You save $0.89
17
Yamaha Motors
Manifold Gasket6G5-13645-A2-00
Required: 1
GASKET, MANIFOLD 1
Supersedes: 6G5-13645-A1-00
In stock
Only 1 remaining
$16.06
You save $2.84
18
Yamaha Motors
Bolt90101-06M27-00
Required: 16
BOLT
Supersedes: 97313-06025-00
$2.85
You save $0.50
In stock
5+ in stock
$2.42
You save $0.43
20
Yamaha Motors
Gasket6E5-14198-A2-00
Required: 3
GASKET
Supersedes: 6E5-14198-A1-00
In stock
5+ in stock
$9.78
You save $1.72
In stock
5+ in stock
$4.08
You save $0.72
22
Yamaha Motors
Spring Washer92995-06100-00
Required: 12
WASHER, SPRING
In stock
5+ in stock
$2.93
You save $0.52
23
Yamaha Motors
Accelerator Lever Rod6G5-41217-01-00
Required: 1
ROD, ACCEL. LEVER
In stock
5+ in stock
$13.22
You save $2.33
In stock
Only 1 remaining
$8.20
You save $1.45
25
Yamaha Motors
Choke Lever Joint661-41262-02-00
Required: 5
JOINT, CHOKE LEVER
In stock
5+ in stock
$11.35
You save $2.00
26
Yamaha Motors
Knob (Choke)6R3-41271-01-00
Required: 1
KNOB, CHOKE
Supersedes: 6R3-41271-00-00
$16.06
You save $2.84
In stock
Only 4 remaining
$9.27
You save $1.63
28
Yamaha Motors
Obsolete Yamaha Part6R3-14440-02-00
Required: 1
SILENCER ASSEMBLY, INTAKE
Supersedes: 6R3-14440-00-00
$241.87
You save $42.68
$32.30
You save $5.70
30
Yamaha Motors
Hose (L390)90445-07M90-00
Required: 1
HOSE (L220)
Supersedes: 90445-07M08-00
In stock
Only 2 remaining
$6.29
You save $1.11
In stock
5+ in stock
$10.84
You save $1.91
32
Yamaha Motors
Screw With Washer90159-06M14-00
Required: 12
SCREW, WITH WASHER
In stock
Only 4 remaining
$3.53
You save $0.62
$25.24
You save $4.46
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
