All diagrams for this model

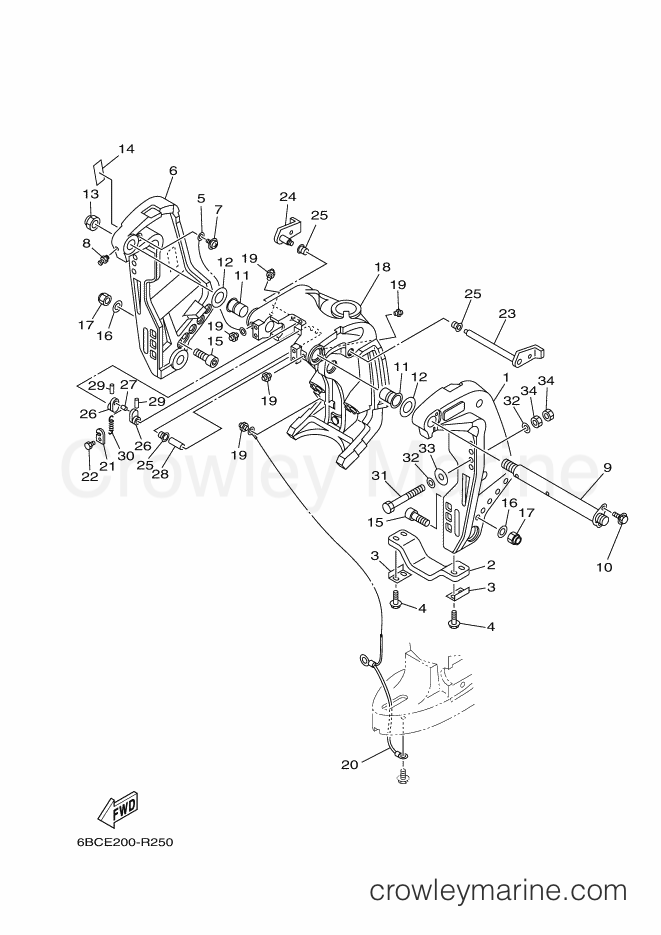

2017 International 75hp - F75CEHDX (6BCE) [040] BRACKET 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors F75CEHDX (6BCE) [040] - BRACKET 1
Change View:
1
Required: 1
BRACKET, CLAMP 1
Price unavailable
BOLT, HEXAGON W/W DE
4
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06530-00
Required: 4
BOLT, WITH WASHER
Supersedes: 97595-06530-00
Cross Ship
Leaves in 2-5 days
$1.10
$0.94
You save $0.17
More details
6
Required: 1
BRACKET, CLAMP 2
Price unavailable
Pan Head Screw
7
Yamaha Motors
Pan Head Screw97885-06012-00
Required: 1
SCREW, WITH WASHER
Supersedes: 97985-06212-00
Cross Ship
Leaves in 2-5 days
$3.35
$2.85
You save $0.50
More details
Clamp Bracket Bolt
9
Yamaha Motors
Clamp Bracket Bolt64E-43131-01-00
Required: 1
BOLT, CLAMP BRACKET
Cross Ship
Leaves in 2-5 days
$132.45
$112.58
You save $19.87
More details
Bolt
10
Yamaha Motors
Bolt97080-08020-00
Required: 1
BOLT, WITH WASHER
Supersedes: 97595-08520-00
Cross Ship
Leaves in 2-5 days
$2.91
$2.47
You save $0.44
More details
Hexagon Socket Head Bolt
15
Yamaha Motors
Hexagon Socket Head Bolt90110-12M00-00
Required: 2
BOLT, HEXAGON SOCKET HEAD
Cross Ship
Leaves in 2-5 days
$13.35
$11.35
You save $2.00
More details
Self-Locking Nut
17
Yamaha Motors
Self-Locking Nut90185-12M12-00
Required: 2
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$17.90
$15.21
You save $2.69
More details
18
Required: 1
BRACKET, SWIVEL 1
Price unavailable
18
Required: 1
BRACKET, SWIVEL 1
Price unavailable
Wire Lead
20
Yamaha Motors
Wire Lead66K-82149-00-00
Required: 1
WIRE, LEAD 3
Cross Ship
Leaves in 2-5 days
$29.55
$25.12
You save $4.43
More details
Spring Hook
21
Yamaha Motors
Spring Hook66T-43144-00-00
Required: 1
HOOK, SPRING
Cross Ship
Leaves in 2-5 days
$6.25
$5.31
You save $0.94
More details
BOLT
22
Yamaha Motors
BOLT97095-06010-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$5.99
$5.09
You save $0.90
More details
23
Required: 1
LEVER, TILT STOP 1
Price unavailable
24
Required: 1
LEVER, TILT STOP 2
Price unavailable
Collar
28
Yamaha Motors
Collar90387-10M05-00
Required: 1
COLLAR
Cross Ship
Leaves in 2-5 days
$6.15
$5.23
You save $0.92
More details
BOLT (L:115MM)
31
Yamaha Motors
BOLT (L:115MM)90101-12064-00
Required: 4
BOLT (L:115MM)
Supersedes: 90101-12M03-00
Cross Ship
Leaves in 2-5 days
$28.99
$24.64
You save $4.35
More details
Plate Washer
32
Yamaha Motors
Plate Washer90201-13M01-00
Required: 8
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$2.25
$1.91
You save $0.34
More details
Nut
34
Yamaha Motors
Nut95380-12600-00
Required: 8
NUT
Cross Ship
Leaves in 2-5 days
$10.25
$8.71
You save $1.54
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
