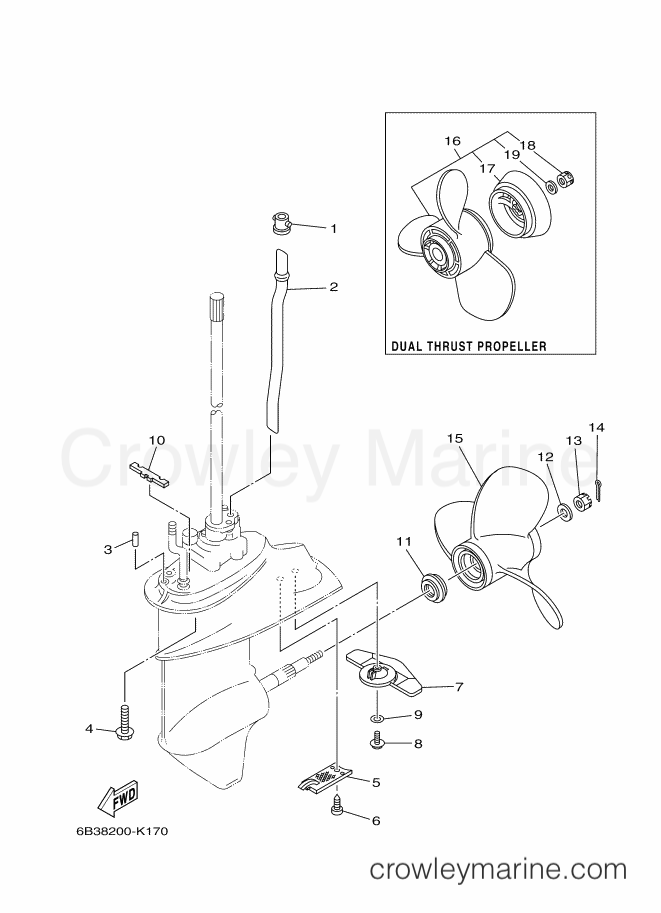

2012 International 15hp - E15DMHS (6B49) [230] LOWER CASING & DRIVE 2 diagram
![Yamaha Motors E15DMHS (6B49) [230] - LOWER CASING & DRIVE 2](https://cdn.crowleymarine.com/yamaha/SSBAKMJr.png)
1
Yamaha Motors
WATER SEAL626-44365-02-00
Required: 1
DAMPER, WATER SEAL 1
Supersedes: 626-44365-01-00
$6.63
You save $1.17
2
Required: 1
TUBE, WATER 1
Price unavailable
$24.01
You save $4.24
2
Required: 1
TUBE, WATER 1
Price unavailable
In stock
5+ in stock
$3.91
You save $0.69
4
Yamaha Motors
BOLT, HEXAGON W/W DE97E75-08535-00
Required: 4
BOLT, WITH WASHER
Supersedes: 97575-08535-00
$3.19
You save $0.56
5
Yamaha Motors
Water Inlet Cover6E7-45214-00-00
Required: 1
COVER, WATER INLET 1
$12.54
You save $2.21
6
Yamaha Motors
Screw98580-05012-00
Required: 1
SCREW, PAN HEAD
Supersedes: 97880-05012-00
In stock
Only 1 remaining
$6.79
You save $1.20
7
Required: 1
ANODE
Price unavailable
8
Yamaha Motors
DEEP FLANGE BOLT95D95-06020-00
Required: 1
BOLT, FLANGE
Supersedes: 95895-06020-00
In stock
5+ in stock
$4.55
You save $0.80
9
Yamaha Motors
Washer92990-06300-00
Required: 1
WASHER, INTERNAL TOOTH
In stock
5+ in stock
$2.29
You save $0.41
10
Yamaha Motors
DAMPER, SEAL682-45375-02-00
Required: 1
DAMPER, SEAL
Supersedes: 682-45375-01-00
In stock
Only 1 remaining
$5.70
You save $1.00
In stock
Only 2 remaining
$19.46
You save $3.44
12
Yamaha Motors
Plate Washer90201-10M01-00
Required: 1
WASHER, PLATE
In stock
Only 1 remaining
$5.57
You save $0.98
In stock
Only 5 remaining
$6.08
You save $1.07
14
Yamaha Motors
PIN. COTTER91490-30025-00
Required: 1
PIN. COTTER
Supersedes: 91490-30020-00
In stock
5+ in stock
$3.39
You save $0.60
15
Yamaha Motors
Aluminum Prop - 3 Blade 9.25x8RH Aluminum683-45947-00-00
Required: 1
PROPELLER (3X9-1/4"X8"-J)
$153.00
You save $27.00
15
Yamaha Motors
Aluminum Prop - 3 Blade 9.25x8RH Aluminum63V-45947-00-00
Required: 1
PROPELLER (3X9-1/4"X8"-J)
$153.00
You save $27.00
15
Yamaha Motors
Aluminum Prop - 3 Blade 9.5x6.5RH Aluminum683-45949-00-00
Required: 1
PROPELLER (3X9-1/2"X6-1/2"-J)
$135.15
You save $23.85
15
Yamaha Motors
Aluminum Prop - 3 Blade 9.25x12RH Aluminum683-45941-00-00
Required: 1
PROPELLER (3X9-1/4"X12"-J)
$135.15
You save $23.85
15
Yamaha Motors
Aluminum Prop - 3 Blade 9.25x10.5RH Aluminum683-45943-00-00
Required: 1
PROPELLER (3X9-1/4"X10-1/2"-J)
In stock
Only 1 remaining
$135.15
You save $23.85
15
Yamaha Motors
Aluminum Prop - 3 Blade 9.25x9.75RH Aluminum683-45952-00-00
Required: 1
PROPELLER (3X9-1/4"X9-3/4"-J)
$153.00
You save $27.00
15
Yamaha Motors
Aluminum Prop - 3 Blade 9.25x9RH Aluminum63V-45945-10-00
Required: 1
PROPELLER (3X9-1/4"X9"-J1)
In stock
Only 2 remaining
$153.00
You save $27.00
15
Yamaha Motors
Aluminum Prop - 3 Blade 9.25x10RH Aluminum63V-45952-10-00
Required: 1
PROPELLER (3X9-1/4"X10"-J1)
$153.00
You save $27.00
15
Yamaha Motors
Aluminum Prop - 3 Blade 9.25x11RH Aluminum63V-45943-10-00
Required: 1
PROPELLER (3X9-1/4"X11"-J1)
$153.00
You save $27.00
16
Yamaha Motors
Dual Thrust Prop - 3 Blade 9.75x8RH Aluminum683-W4591-02-00
Required: 1
PROPELLER (3X9-3/4"X8"-J)
In stock
Only 1 remaining
$143.65
You save $25.35
16
Yamaha Motors
Dual Thrust Prop - 3 Blade 9.75x6.5RH Aluminum683-W4592-02-00
Required: 1
PROPELLER (3X9-3/4"X6-1/2"-J)
$143.65
You save $25.35
17
Yamaha Motors
Deflector Ring6E7-45986-00-00
Required: 1
. RING, DEFLECTOR
$13.39
You save $2.36
18
Yamaha Motors
Castle Nut90171-10M07-00
Required: 1
. NUT, CASTLE
In stock
Only 2 remaining
$10.58
You save $1.87
19
Yamaha Motors
Plate Washer90201-10M02-00
Required: 1
. WASHER, PLATE
In stock
Only 2 remaining
$3.91
You save $0.69
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
