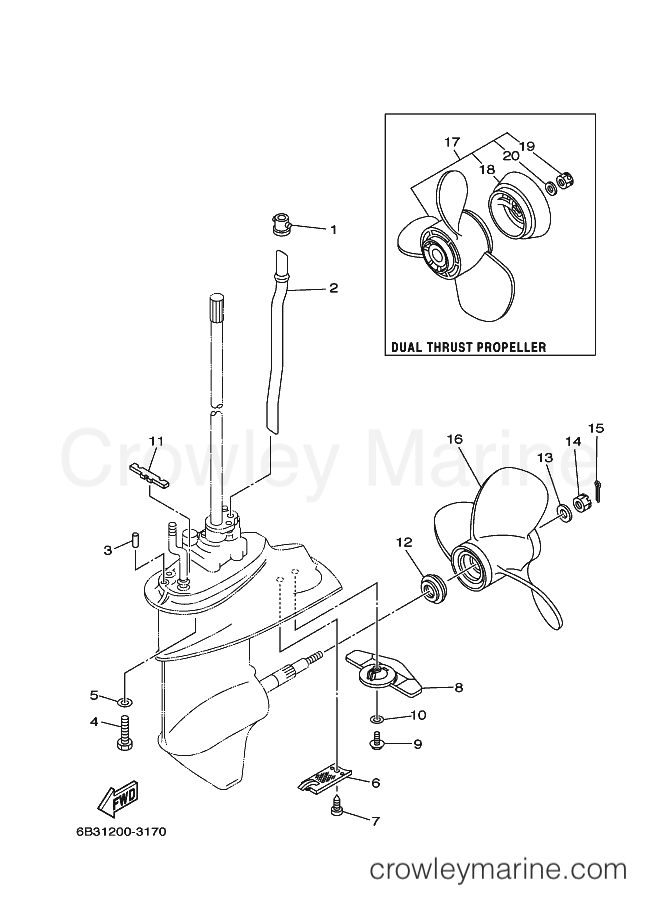

2003 International 15hp - E15D (6B41) [06A] LOWER CASING & DRIVE 2 diagram
![Yamaha Motors E15D (6B41) [06A] - LOWER CASING & DRIVE 2](https://cdn.crowleymarine.com/yamaha/N3attZTG.png)
1
Yamaha Motors
WATER SEAL626-44365-02-00
Required: 1
DAMPER, WATER SEAL
Supersedes: 626-44365-01-00
$6.63
You save $1.17
2
Yamaha Motors
Obsolete Yamaha Part682-44361-01-00
Required: 1
TUBE, WATER
Supersedes: 682-44361-00-00
$24.01
You save $4.24
2
Required: 1
TUBE, WATER
Price unavailable
2
Required: 1
TUBE, WATER
Price unavailable
In stock
5+ in stock
$3.91
You save $0.69
4
Yamaha Motors
Bolt97095-08035-00
Required: 4
BOLT
Supersedes: 97075-08035-00
In stock
5+ in stock
$4.67
You save $0.82
5
Yamaha Motors
Plate Washer92990-08600-00
Required: 4
WASHER
Supersedes: 92995-08600-00
In stock
5+ in stock
$2.29
You save $0.41
6
Yamaha Motors
Water Inlet Cover6E7-45214-00-00
Required: 1
COVER, WATER INLET
$12.54
You save $2.21
7
Yamaha Motors
Screw98580-05012-00
Required: 1
SCREW, PAN HEAD
Supersedes: 97880-05012-00
In stock
Only 1 remaining
$6.79
You save $1.20
8
Required: 1
ANODE
Price unavailable
9
Yamaha Motors
DEEP FLANGE BOLT95D95-06020-00
Required: 1
BOLT, FLANGE
Supersedes: 95895-06020-00
In stock
5+ in stock
$4.55
You save $0.80
10
Yamaha Motors
Washer92990-06300-00
Required: 1
WASHER, INTERNAL TOOTH
In stock
5+ in stock
$2.29
You save $0.41
11
Yamaha Motors
DAMPER, SEAL682-45375-02-00
Required: 1
DAMPER, SEAL
Supersedes: 682-45375-01-00
In stock
Only 1 remaining
$5.70
You save $1.00
In stock
Only 2 remaining
$19.46
You save $3.44
13
Yamaha Motors
Plate Washer90201-10M01-00
Required: 1
WASHER, PLATE
In stock
Only 1 remaining
$5.57
You save $0.98
In stock
Only 5 remaining
$6.08
You save $1.07
15
Yamaha Motors
PIN. COTTER91490-30025-00
Required: 1
PIN, COTTER
Supersedes: 91490-30020-00
In stock
5+ in stock
$3.39
You save $0.60
16
Yamaha Motors
Propeller (3X9-1/4"X10-1/2"-J)683-45943-00-EL
Required: 1
PROPELLER (3X9-1/4"X10-1/2"-J)
$135.15
You save $23.85
16
Yamaha Motors
Aluminum Prop - 3 Blade 9.25x10RH Aluminum63V-45952-10-00
Required: 1
PROPELLER (3X9-1/4"X10"-J)
Supersedes: 63V-45952-00-EL
$153.00
You save $27.00
16
Yamaha Motors
Aluminum Prop - 3 Blade 9.5x6.5RH Aluminum683-45949-00-00
Required: 1
PROPELLER (3X9-1/2"X6-1/2"-J)
Supersedes: 683-45949-00-EL
$135.15
You save $23.85
16
Yamaha Motors
Aluminum Prop - 3 Blade 9.25x9.75RH Aluminum683-45952-00-00
Required: 1
PROPELLER (3X9-1/4"X9-3/4"-J)
Supersedes: 683-45952-00-EL
$153.00
You save $27.00
16
Yamaha Motors
Aluminum Prop - 3 Blade 9.25x8RH Aluminum683-45947-00-00
Required: 1
PROPELLER (3X9-1/4"X8"-J)
Supersedes: 683-45947-00-EL
$153.00
You save $27.00
16
Yamaha Motors
Aluminum Prop - 3 Blade 9.25x9RH Aluminum63V-45945-10-00
Required: 1
PROPELLER (3X9-1/4"X9"-J)
Supersedes: 63V-45945-00-EL
In stock
Only 2 remaining
$153.00
You save $27.00
16
Yamaha Motors
Aluminum Prop - 3 Blade 9.25x12RH Aluminum683-45941-00-00
Required: 1
PROPELLER (3X9-1/4"X12"-J)
Supersedes: 683-45941-00-EL
$135.15
You save $23.85
16
Yamaha Motors
Propeller (3X9-1/4"X11"-J1)63V-45943-10-EL
Required: 1
PROPELLER (3X9-1/4"X11"-J)
Supersedes: 63V-45943-00-EL
$153.00
You save $27.00
16
Yamaha Motors
Aluminum Prop - 3 Blade 9.25x8RH Aluminum63V-45947-00-00
Required: 1
PROPELLER (3X9-1/4"X8"-J)
Supersedes: 63V-45947-00-EL
$153.00
You save $27.00
17
Yamaha Motors
Dual Thrust Prop - 3 Blade 9.75x6.5RH Aluminum683-W4592-02-00
Required: 1
PROPELLER (3X9-3/4"X6-1/2"-J)
Supersedes: 683-W4592-02-EL
$143.65
You save $25.35
17
Yamaha Motors
Propeller (3X9-3/4"X8"-J)683-W4591-02-EL
Required: 1
PROPELLER (3X9-3/4"X8"-J)
$143.65
You save $25.35
18
Yamaha Motors
Deflector Ring6E7-45986-00-00
Required: 1
. RING, DEFLECTOR
$13.39
You save $2.36
19
Yamaha Motors
Castle Nut90171-10M07-00
Required: 1
. NUT, CASTLE
In stock
Only 2 remaining
$10.58
You save $1.87
20
Yamaha Motors
Plate Washer90201-10M02-00
Required: 1
. WASHER, PLATE
In stock
Only 2 remaining
$3.91
You save $0.69
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
