2018 Scooter XC115F - XC115F (BL74) [010] STEERING HANDLE & CABLE diagram

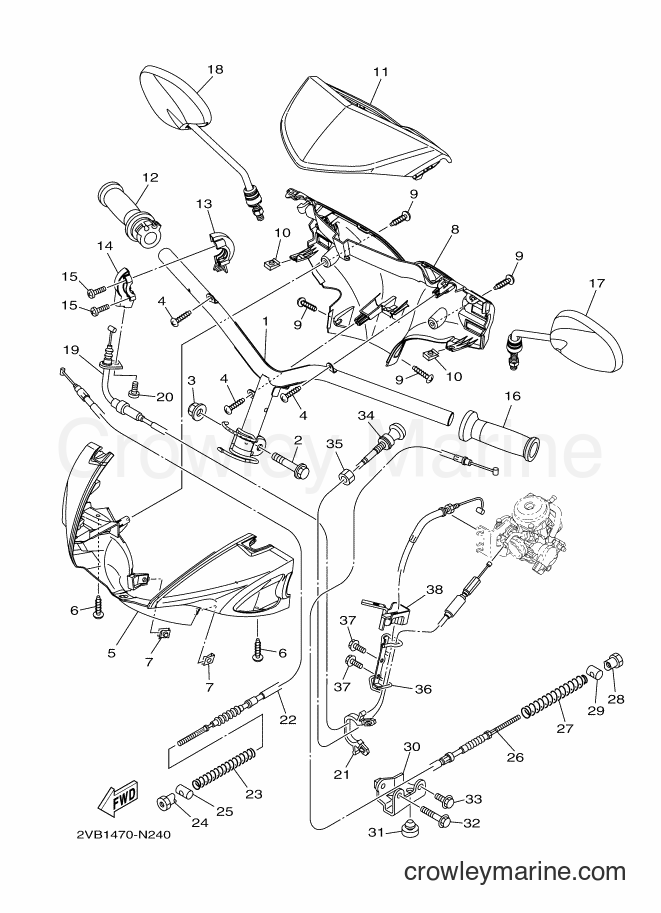

![Yamaha Motors XC115F (BL74) [010] - STEERING HANDLE & CABLE](https://cdn.crowleymarine.com/yamaha/IKkNSmTz.png)
1
Required: 1
HANDLE COMP.
Price unavailable
1
Required: 1
HANDLE COMP.
Price unavailable
$5.52
You save $0.97
3
Yamaha Motors
Self Locking Nut95602-10200-00
Required: 1
NUT, S/L FLANGE
$2.29
You save $0.41
4
Yamaha Motors
Tapping Screw97702-50016-00
Required: 3
SCREW, TAPPING
$2.21
You save $0.39
5
Required: 1
COVER, HANDLE UPPER 1
Price unavailable
6
Yamaha Motors
Tapping Screw97702-50016-00
Required: 2
SCREW, TAPPING
$2.21
You save $0.39
-50%
7
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
8
Required: 1
COVER, HANDLE UPPER 2
Price unavailable
9
Yamaha Motors
Tapping Screw97702-50016-00
Required: 4
SCREW, TAPPING
$2.21
You save $0.39
-50%
10
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
11
Required: 1
COVER, METER
Price unavailable
12
Required: 1
GRIP ASSY
Price unavailable
13
Required: 1
CAP, GRIP UPPER
Price unavailable
14
Required: 1
CAP, GRIP UNDER
Price unavailable
15
Yamaha Motors
Pan Head Screw98580-05525-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98502-05025-00
In stock
Only 5 remaining
$1.60
You save $0.40
16
Required: 1
GRIP
Price unavailable
17
Required: 1
REAR VIEW MIRROR ASSY (LEFT)
Price unavailable
18
Required: 1
REAR VIEW MIRROR ASSY (RIGHT)
Price unavailable
19
Required: 1
CABLE, THROTTLE 1
Price unavailable
20
Yamaha Motors
Pan Head Screw98517-05020-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98502-05020-00
$3.15
You save $-1.40
21
Required: 1
CLAMP
Price unavailable
22
Required: 1
WIRE, BRAKE 1
Price unavailable
23
Required: 1
SPRING, COMPRESSION
Price unavailable
$1.70
You save $0.30
-50%
In stock
Only 4 remaining
$4.75
You save $4.75
26
Required: 1
CABLE, BRAKE
Price unavailable
27
Yamaha Motors
Compression Spring90501-16804-00
Required: 1
SPRING, COMPRESSION
$0.98
You save $0.17
$1.70
You save $0.30
-50%
In stock
Only 4 remaining
$4.75
You save $4.75
30
Required: 1
HOLDER, WIRE
Price unavailable
31
Required: 1
STOPPER
Price unavailable
$3.15
You save $0.56
$5.52
You save $0.97
34
Required: 1
CABLE, STARTER 1
Price unavailable
35
Required: 1
NUT, ADJUSTING
Price unavailable
36
Required: 1
GUIDE, CABLE
Price unavailable
$3.02
You save $0.53
38
Required: 1
HOLDER, WIRE
Price unavailable
