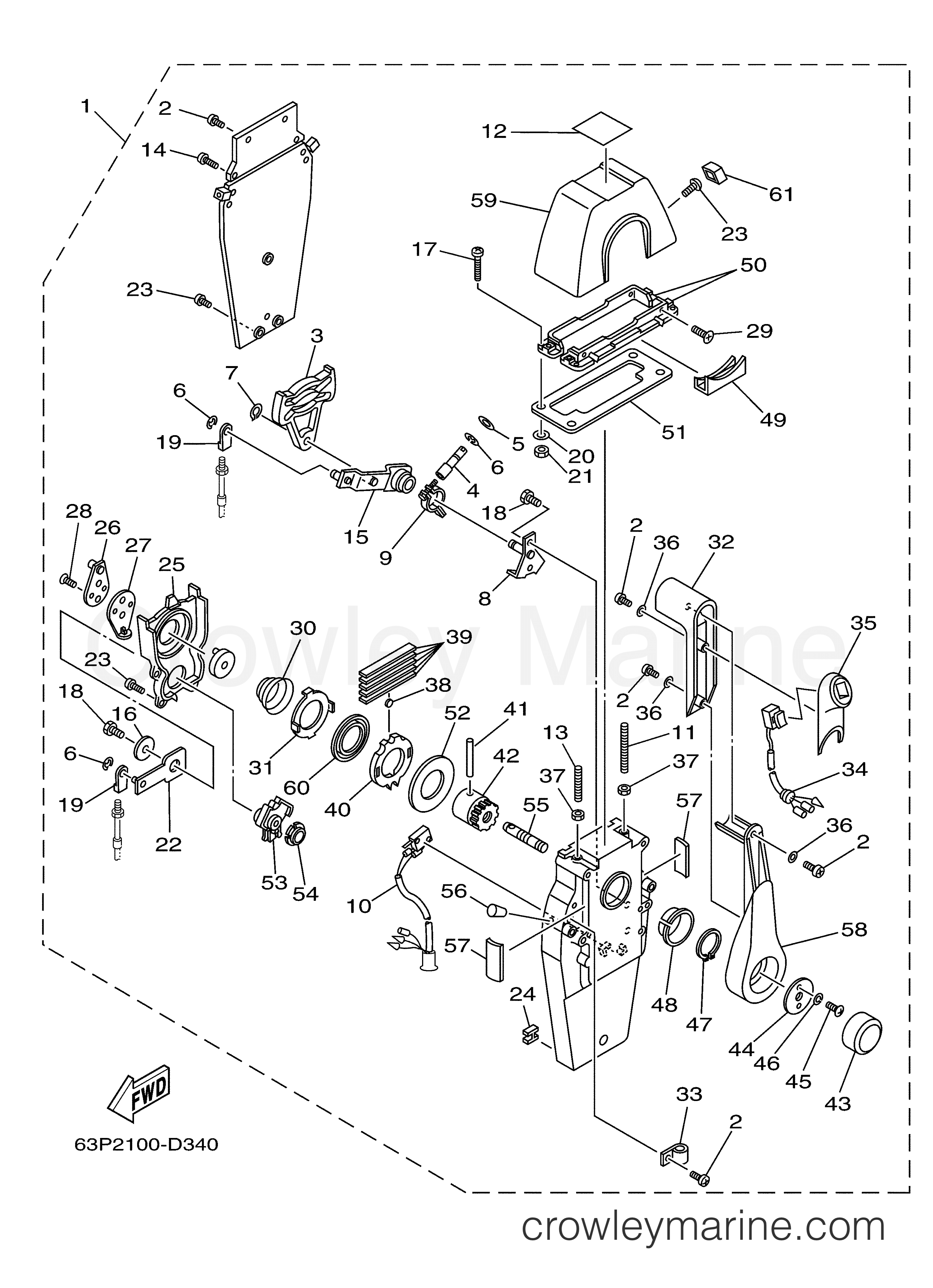

Various Years Rigging Rigging - Rigging 2006 CONTROL BINNACLE PREMIUM SINGLE diagram

1
Yamaha Motors
Remote Control Assembly (Right)704-48205-P1-00
Required: 1
REMOTE CONTROL ASSY
Supersedes: 704-48205-P0-00
$324.70
You save $57.30

2
Yamaha Motors
Screw 3704-48129-00-00
Required: 6
.SCREW 2
Supersedes: 704-48128-00-00
$1.27
You save $0.23
$32.09
You save $5.66

4
Yamaha Motors
Friction Shaft704-48265-00-00
Required: 1
.SHAFT, FRICTION
In stock
Only 1 remaining
$12.03
You save $2.12
In stock
Only 1 remaining
$3.02
You save $0.53
In stock
Only 1 remaining
$3.36
You save $0.59
$6.08
You save $1.07

8
Yamaha Motors
Throttle Shaft704-48262-00-00
Required: 1
.SHAFT, THROTTLE
Price unavailable

9
Yamaha Motors
Friction Throttle704-48264-00-00
Required: 1
.THROTTLE, FRICTION
In stock
Only 2 remaining
$21.68
You save $3.82

10
Yamaha Motors
Neutral Switch Assembly704-82540-20-00
Required: 1
.NEUTRAL SWITCH ASSY
$82.66
You save $14.59
$6.54
You save $1.16

12
Yamaha Motors
Graphic704-48215-21-00
Required: 1
.GRAPHIC
Supersedes: 704-48215-20-00
$31.24
You save $5.51
$10.67
You save $1.88

14
Yamaha Motors
Pan Head Screw98580-05525-00
Required: 2
.SCREW, PAN HEAD
Supersedes: 97890-05025-00
In stock
Only 5 remaining
$1.70
You save $0.30

15
Yamaha Motors
Throttle Arm704-48261-00-00
Required: 1
.ARM, THROTTLE
$64.90
You save $11.45
$2.85
You save $0.50

17
Yamaha Motors
Pan Head Screw98580-05540-00
Required: 4
.SCREW
Supersedes: 704-48283-00-00
$8.07
You save $1.42

18
Yamaha Motors
BOLT97395-06018-00
Required: 3
.BOLT
Supersedes: 97380-06018-00
$5.52
You save $0.97

19
Yamaha Motors
Remote Control Cable End703-48345-01-00
Required: 2
.CABLE END, REMOTE CONTROL 2
$13.81
You save $2.44
$6.54
You save $1.16
In stock
Only 5 remaining
$8.07
You save $1.42
$10.03
You save $1.77
$5.31
You save $0.94
24
Yamaha Motors
Cable Anchor703-48358-01-00
Required: 1
.ANCHOR, CABLE
Supersedes: 703-48358-00-00
In stock
Only 1 remaining
$9.10
You save $1.61

25
Yamaha Motors
Gear Housing704-48231-00-00
Required: 1
.HOUSING, GEAR
$26.90
You save $4.75
$30.94
You save $5.46

27
Yamaha Motors
Throttle Adjusting StopperEL8-48254-00-00
Required: 1
.STOPPER, THROTTLE ADJUSTING
$15.09
You save $2.66

28
Yamaha Motors
Flat Head Screw98780-06020-00
Required: 2
.SCREW, FLAT HEAD
Supersedes: 92780-06020-00
In stock
Only 1 remaining
$8.07
You save $1.42

29
Yamaha Motors
Flat Head Screw98780-05018-00
Required: 4
.SCREW, FLAT HEAD
In stock
Only 4 remaining
$3.74
You save $0.66

30
Yamaha Motors
Free Accel SpringEL8-48244-00-00
Required: 1
.SPRING, FREE ACCEL
$17.17
You save $3.03
$11.69
You save $2.06

32
Yamaha Motors
Control Lever Grip704-48222-P0-00
Required: 1
.GRIP, CONTROL LEVER
$15.09
You save $2.66
$12.66
You save $2.24

34
Yamaha Motors
Trim & Tilt Switch Assembly704-82563-42-00
Required: 1
.TRIM & TILT SWITCH ASSY
Supersedes: 704-82563-40-00
$79.18
You save $13.97

35
Yamaha Motors
Obsolete Yamaha Part704-48229-P1-00
Required: 1
.GRIP, CONTROL LEVER
Supersedes: 704-48229-P0-00
$15.09
You save $2.66

36
Yamaha Motors
Internal Tooth Washer92990-05300-00
Required: 3
.WASHER, INTERNAL TOOTH
In stock
Only 3 remaining
$8.07
You save $1.42

37
Yamaha Motors
Hexagon Nut95380-06600-00
Required: 2
.NUT, HEXAGON
In stock
5+ in stock
$4.08
You save $0.72

38
Yamaha Motors
Free Accel Roller701-48248-00-00
Required: 1
.ROLLER, FREE ACCEL
$5.70
You save $1.00

39
Yamaha Motors
.SPRING, DETENT704-48238-00-00
Required: 5
.SPRING, DETENT
$2.47
You save $0.44
$26.77
You save $4.73
$10.05
You save $1.77

42
Yamaha Motors
Drive Shaft704-48242-10-00
Required: 1
.SHAFT, DRIVE
$45.65
You save $8.05
In stock
Only 1 remaining
$12.07
You save $2.13
$12.92
You save $2.28

45
Yamaha Motors
Pan Head Screw97890-06019-00
Required: 2
.SCREW, PAN HEAD
No longer availableSearch Nationwide Inventory
Price unavailable

46
Yamaha Motors
Washer92990-06300-00
Required: 2
.WASHER, INTERNAL TOOTH
In stock
5+ in stock
$2.29
You save $0.41
$14.53
You save $2.56
$3.44
You save $0.61

49
Yamaha Motors
Lead Cover704-48219-R0-00
Required: 1
.COVER, LEAD
Supersedes: 704-48219-P0-00
$7.61
You save $1.34

50
Yamaha Motors
Stopper Plate704-48144-10-00
Required: 2
.PLATE, STOPPER 2
In stock
Only 1 remaining
$19.46
You save $3.44

51
Yamaha Motors
GROMMET704-48176-01-00
Required: 1
.GROMMET
Supersedes: 704-48176-00-00
$19.51
You save $3.44
$12.92
You save $2.28
$18.53
You save $3.27

54
Yamaha Motors
Bushing703-48235-00-00
Required: 1
.BUSHING
Supersedes: 702-48235-00-00
$9.65
You save $1.70

55
Yamaha Motors
Free Accel Shaft704-48153-00-00
Required: 1
.SHAFT, FREE ACCEL
$13.30
You save $2.35
$10.67
You save $1.88
$12.66
You save $2.24

58
Yamaha Motors
Control Lever704-48221-P0-00
Required: 1
.LEVER, CONTROL
$147.01
You save $25.94
$24.95
You save $4.40

60
Yamaha Motors
Shift Plate704-48178-10-00
Required: 1
.PLATE, SHIFT
$8.03
You save $1.42
$30.56
You save $5.39
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
