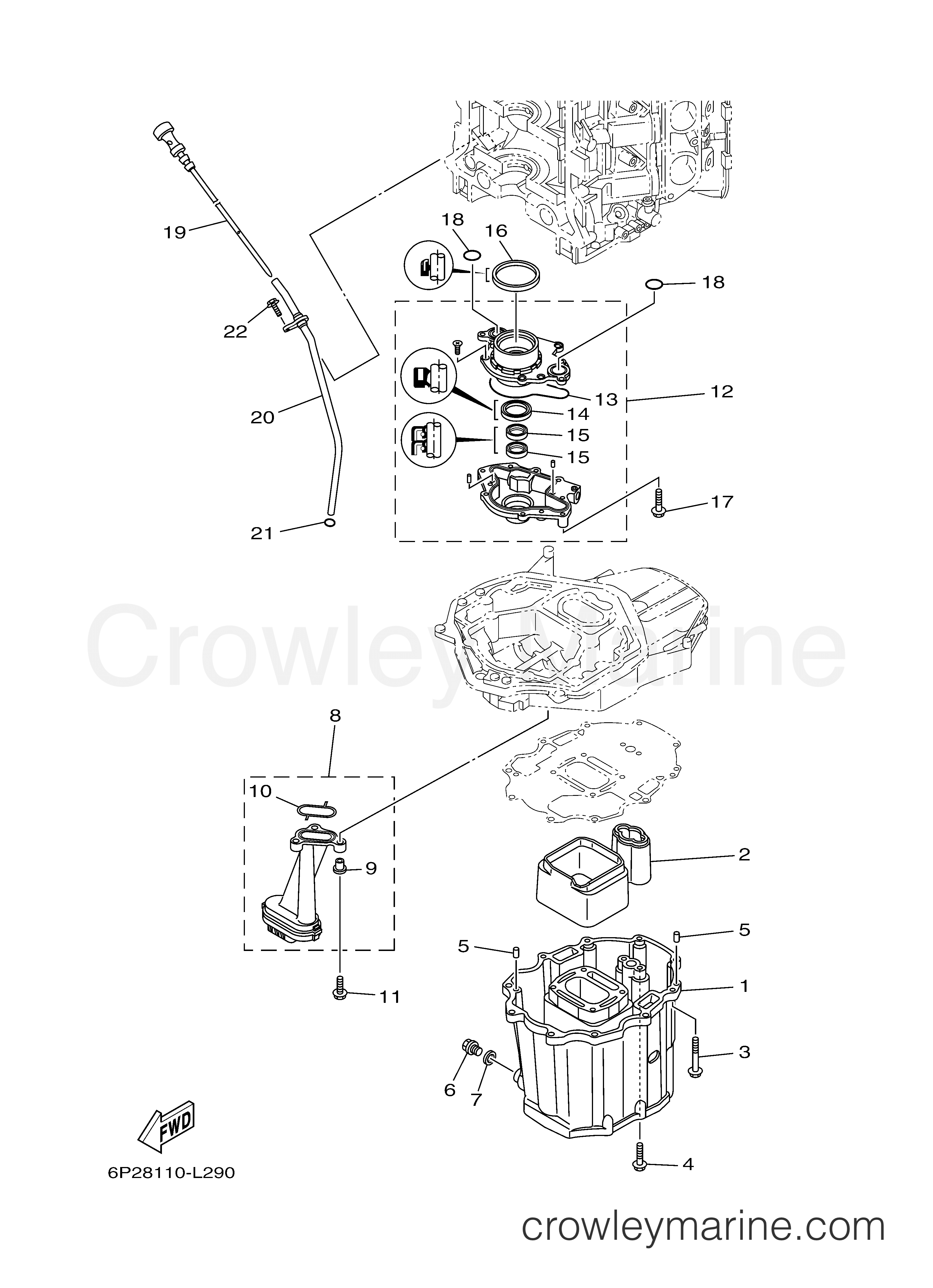

2013 Outboard 250hp - LF250XA OIL PAN diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors LF250XA - OIL PAN
Change View:
Oil Pan
1
Yamaha Motors
Oil Pan69J-15311-00-5B
Required: 1
OIL PAN
Supersedes: 69J-15311-10-CA
Cross Ship
Leaves in 2-5 days
$216.30
$183.86
You save $32.44
More details
Rubber Seal
2
Yamaha Motors
Rubber Seal69J-15761-00-00
Required: 1
SEAL, RUBBER 1
Cross Ship
Leaves in 2-5 days
$43.55
$37.02
You save $6.53
More details
BOLT, HEXAGON W/W DE
3
Yamaha Motors
BOLT, HEXAGON W/W DE97E75-08560-00
Required: 10
BOLT, WITH WASHER
Supersedes: 97575-08560-00
Cross Ship
Leaves in 2-5 days
$7.15
$6.08
You save $1.07
More details
BOLT, HEXAGON W/W DE
4
Yamaha Motors
BOLT, HEXAGON W/W DE97E75-08535-00
Required: 2
BOLT, WITH WASHER
Supersedes: 97575-08535-00
Cross Ship
Leaves in 2-5 days
$3.75
$3.19
You save $0.56
More details
Oil Strainer
8
Yamaha Motors
Oil Strainer69J-13411-00-00
Required: 1
STRAINER, OIL
Cross Ship
Leaves in 2-5 days
$60.25
$51.21
You save $9.04
More details
Flange Bolt
11
Yamaha Motors
Flange Bolt95812-06025-00
Required: 3
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$0.75
$0.64
You save $0.11
More details
Inlet Valve Guide
20
Yamaha Motors
Inlet Valve Guide6P2-15377-10-00
Required: 1
GUIDE, INLET
Cross Ship
Leaves in 2-5 days
$79.65
$67.70
You save $11.95
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
