All diagrams for this model

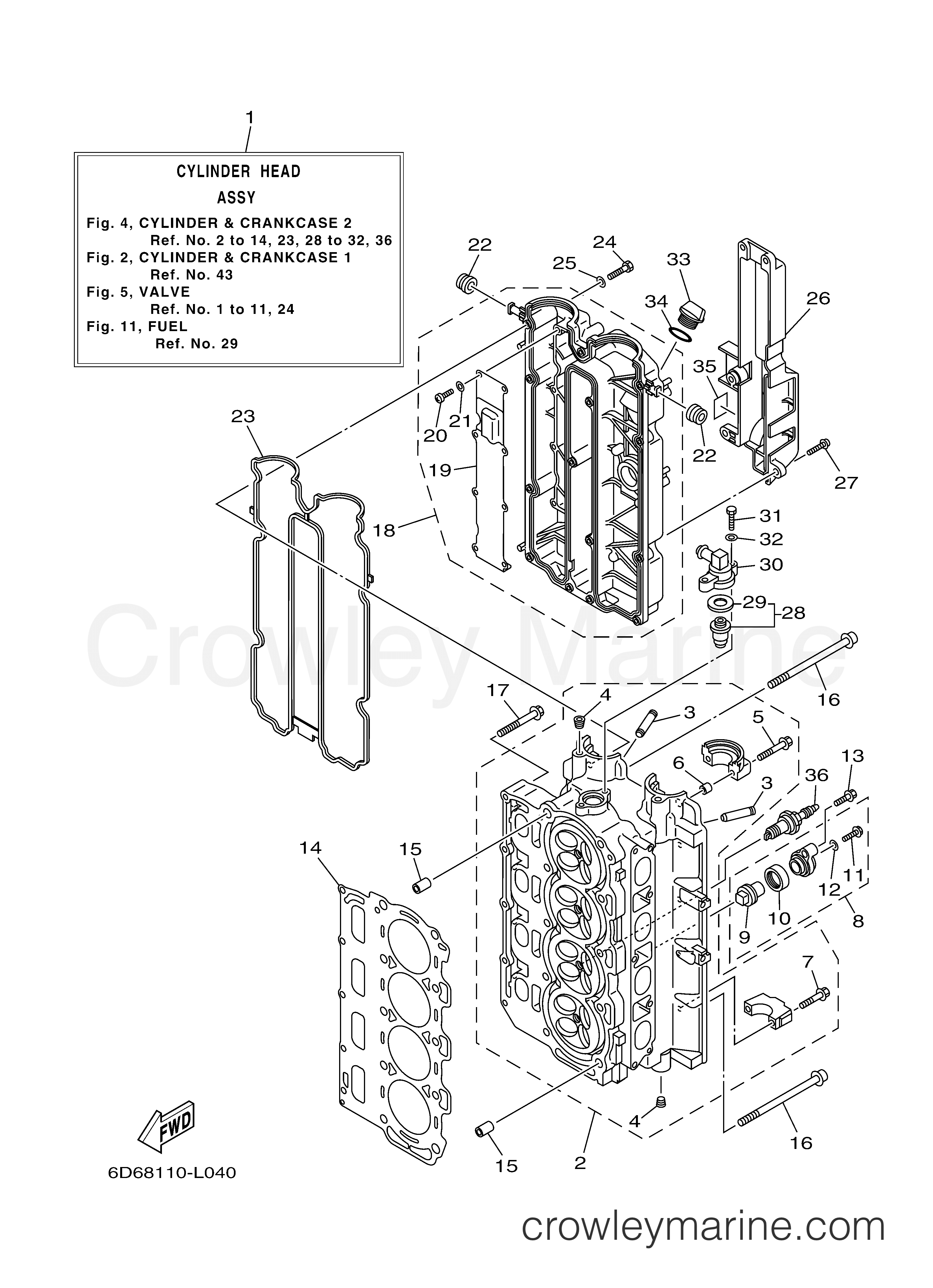

2011 Outboard 75hp - F75TLR CYLINDER CRANKCASE 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors F75TLR - CYLINDER CRANKCASE 2
Change View:
Cylinder Head
2
Yamaha Motors
Cylinder Head99999-04105-00
Required: 1
CYLINDER HEAD ASSY
Supersedes: 6D8-11110-13-9S
Cross Ship
Leaves in 2-5 days
$2294.35
$1950.20
You save $344.15
More details
Valve Guide
3
Yamaha Motors
Valve Guide67F-11133-10-00
Required: 16
.GUIDE, VALVE 1
Cross Ship
Leaves in 2-5 days
$127.60
$108.46
You save $19.14
More details
Washer-Cam Caps Bolt
5
Yamaha Motors
Washer-Cam Caps Bolt90119-07235-00
Required: 4
.BOLT/WASHER-CAM CAPS
Cross Ship
Leaves in 2-5 days
$3.65
$3.10
You save $0.55
More details
Dowel Pin
6
Yamaha Motors
Dowel Pin91809-08006-00
Required: 4
.PIN, DOWEL
Cross Ship
Leaves in 2-5 days
$5.55
$4.72
You save $0.83
More details
Bolt With Washer
7
Yamaha Motors
Bolt With Washer90119-07234-00
Required: 16
.BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details
Flat Fillister Screw
16
Yamaha Motors
Flat Fillister Screw90155-10005-00
Required: 10
SCREW, FLAT FILLISTER
Cross Ship
Leaves in 2-5 days
$10.70
$9.10
You save $1.61
More details
Cylinder Head Cover
18
Yamaha Motors
Cylinder Head Cover6D8-11191-01-9S
Required: 1
COVER, CYLINDER HEAD 1
Cross Ship
Leaves in 2-5 days
$296.90
$252.37
You save $44.54
More details
Breather Cover
19
Yamaha Motors
Breather Cover67F-11168-00-00
Required: 1
.COVER, BREATHER
Cross Ship
Leaves in 2-5 days
$47.70
$40.55
You save $7.16
More details
Pan Head Screw
20
Yamaha Motors
Pan Head Screw98507-04008-00
Required: 8
.SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$2.14
$1.82
You save $0.32
More details
Washer
21
Yamaha Motors
Washer92907-04600-00
Required: 8
.WASHER
Cross Ship
Leaves in 2-5 days
$1.85
$1.57
You save $0.28
More details
Cylinder Seal
23
Yamaha Motors
Cylinder Seal6D8-11356-01-00
Required: 1
.SEAL, CYLINDER 2
Cross Ship
Leaves in 2-5 days
$47.25
$40.16
You save $7.09
More details
BOLT
31
Yamaha Motors
BOLT97095-06025-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$3.35
$2.85
You save $0.50
More details
"O"-Ring
34
Yamaha Motors
"O"-Ring93210-25070-00
Required: 1
.O-RING
Supersedes: 93210-24M79-00
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
Mark
35
Yamaha Motors
Mark6D8-83626-00-00
Required: 1
MARK 6
Cross Ship
Leaves in 2-5 days
$4.60
$3.91
You save $0.69
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
