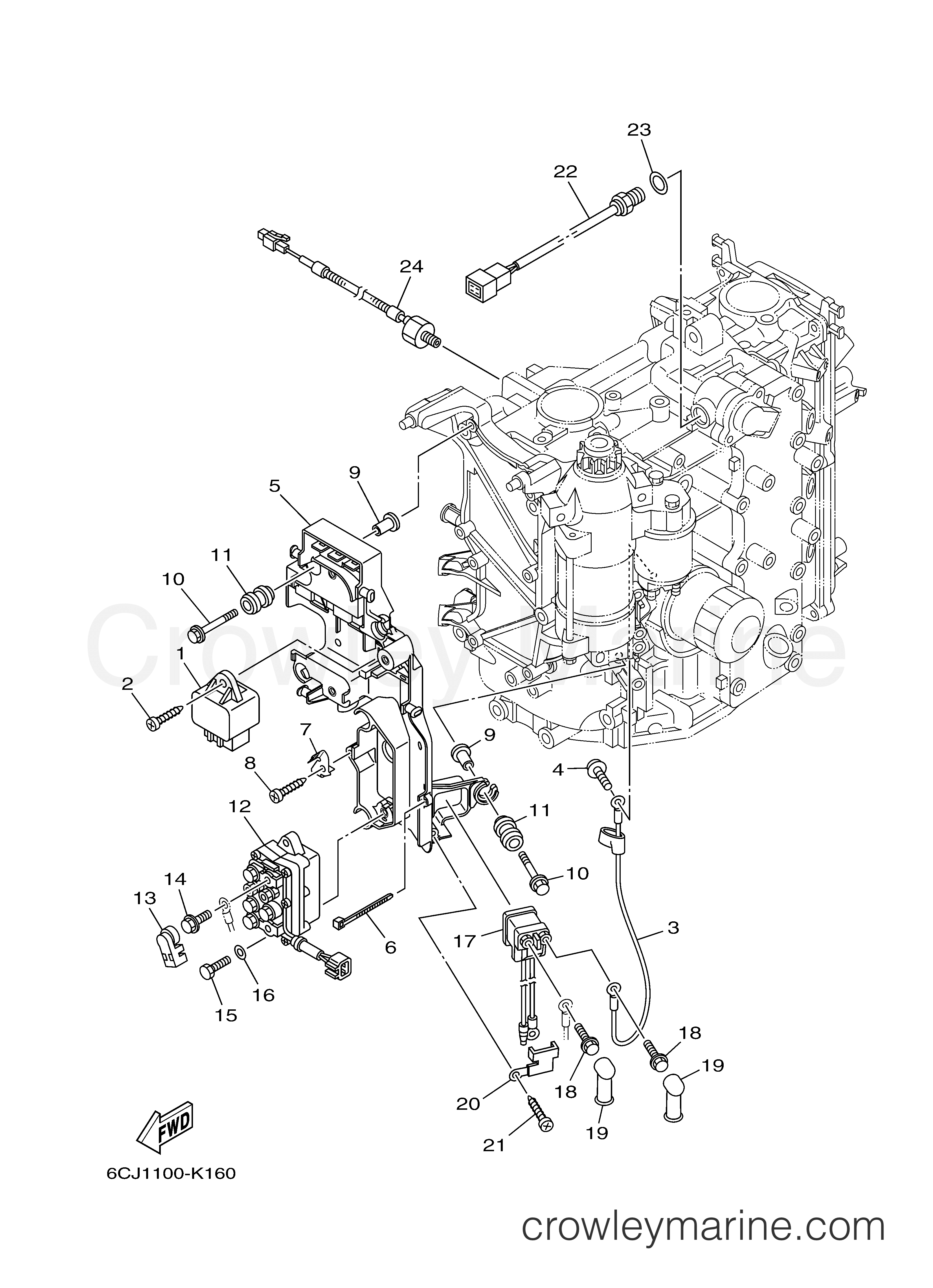

2010 Outboard 70hp - F70LA ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors F70LA - ELECTRICAL 2
Change View:
Relay Assembly
1
Yamaha Motors
Relay Assembly60E-81950-00-00
Required: 1
.RELAY ASSY
Cross Ship
Leaves in 2-5 days
$180.49
$153.42
You save $27.07
More details
Starter Motor Cord
3
Yamaha Motors
Starter Motor Cord6C5-81815-00-00
Required: 1
CORD, STARTER MOTOR
Cross Ship
Leaves in 2-5 days
$17.70
$15.04
You save $2.66
More details
Screw With Washer
4
Yamaha Motors
Screw With Washer90159-04005-00
Required: 1
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details
Bracket
5
Yamaha Motors
Bracket6CJ-81948-01-00
Required: 1
BRACKET
Supersedes: 6CJ-81948-00-00
Cross Ship
Leaves in 2-5 days
$81.85
$69.57
You save $12.28
More details
Clamp
6
Yamaha Motors
Clamp90465-13M97-00
Required: 4
CLAMP
Cross Ship
Leaves in 2-5 days
$3.45
$2.93
You save $0.52
More details
Holder
7
Yamaha Motors
Holder6CJ-85548-00-00
Required: 1
HOLDER
Cross Ship
Leaves in 2-5 days
$7.20
$6.12
You save $1.08
More details
RELAY ASSY
12
Yamaha Motors
RELAY ASSY63P-W8195-00-00
Required: 1
RELAY ASSY
Supersedes: 63P-81950-00-00
Cross Ship
Leaves in 2-5 days
$479.70
$407.75
You save $71.95
More details
Terminal Cap
13
Yamaha Motors
Terminal Cap6P2-8183X-00-00
Required: 2
CAP, TERMINAL
Cross Ship
Leaves in 2-5 days
$6.70
$5.70
You save $1.00
More details
Relay Stay
20
Yamaha Motors
Relay Stay68F-81953-00-00
Required: 1
STAY, RELAY
Cross Ship
Leaves in 2-5 days
$15.50
$13.18
You save $2.33
More details
Thermosensor Assembly
22
Yamaha Motors
Thermosensor Assembly6CJ-85790-00-00
Required: 1
THERMOSENSOR ASSY
Cross Ship
Leaves in 2-5 days
$72.60
$61.71
You save $10.89
More details
SENSOR, KNOCK
24
Yamaha Motors
SENSOR, KNOCK6CJ-85780-02-00
Required: 1
SENSOR, KNOCK
Supersedes: 6CJ-85780-00-00
Cross Ship
Leaves in 2-5 days
$355.85
$302.47
You save $53.38
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
