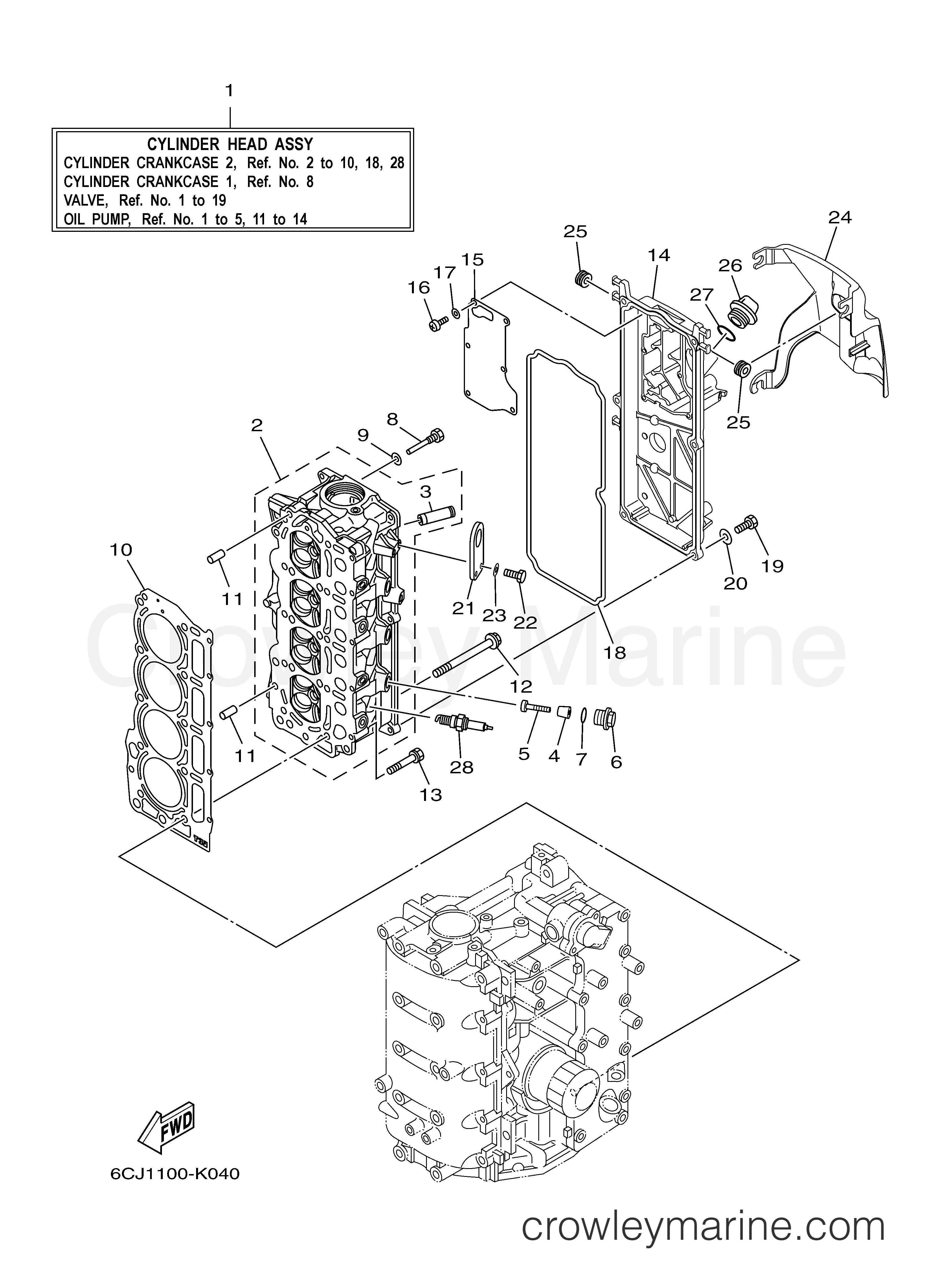

2010 Outboard 70hp - F70LA CYLINDER CRANKCASE 2 diagram
1
Yamaha Motors
CYLINDER HEAD COMPLETE6CJ-W009A-02-9S
Required: 1
CYLINDER HEAD COMPLETE
Supersedes: 6CJ-W009A-00-9S
$1413.13
You save $249.38
2
Yamaha Motors
Cylinder Head99999-04104-00
Required: 1
HEAD, CYLINDER 1
Supersedes: 6CJ-11111-00-9S
$1951.05
You save $344.30
3
Yamaha Motors
Valve Guide6AH-11133-10-00
Required: 16
.GUIDE, VALVE 1
$29.03
You save $5.12
In stock
5+ in stock
$3.06
You save $0.54
5
Yamaha Motors
Pan Head Screw98580-05525-00
Required: 3
.SCREW, PAN HEAD
Supersedes: 97880-05025-00
In stock
Only 5 remaining
$1.70
You save $0.30
6
Yamaha Motors
Blind Plug6G8-11197-A0-00
Required: 3
PLUG, BLIND
Supersedes: 6G8-11197-01-00
$11.56
You save $2.04
In stock
5+ in stock
$4.04
You save $0.71
$28.04
You save $4.95
In stock
Only 4 remaining
$7.31
You save $1.29
10
Yamaha Motors
Cylinder Head Gasket6CJ-11181-00-00
Required: 1
.GASKET, CYLINDER HEAD 1
$56.99
You save $10.06
In stock
Only 1 remaining
$5.61
You save $0.99
In stock
Only 1 remaining
$6.54
You save $1.16
13
Yamaha Motors
Bolt with Washer90119-06MA6-00
Required: 5
BOLT, WITH WASHER
In stock
Only 2 remaining
$3.91
You save $0.69
14
Yamaha Motors
Cylinder Head Cover6CJ-11191-00-9S
Required: 1
COVER, CYLINDER HEAD 1
$109.69
You save $19.36
15
Yamaha Motors
Breather Cover6C5-11168-00-00
Required: 1
COVER, BREATHER
$5.23
You save $0.92
16
Yamaha Motors
Pan Head Screw98507-04010-00
Required: 6
SCREW, PAN HEAD
$3.02
You save $0.53
$1.57
You save $0.28
18
Yamaha Motors
Cylinder Seal6CJ-11356-00-00
Required: 1
.SEAL, CYLINDER 2
In stock
Only 1 remaining
$17.21
You save $3.04
19
Yamaha Motors
Bolt97080-06020-00
Required: 6
BOLT
Supersedes: 97095-06020-00
In stock
5+ in stock
$3.82
You save $0.68
20
Yamaha Motors
Plate Washer92990-06600-00
Required: 6
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
21
Yamaha Motors
Engine Hanger6CJ-11119-00-00
Required: 1
HANGER, ENGINE
$12.15
You save $2.14
22
Yamaha Motors
Bolt97080-06020-00
Required: 2
BOLT
Supersedes: 97095-06020-00
In stock
5+ in stock
$3.82
You save $0.68
23
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
24
Yamaha Motors
Cylinder Head Cover6CJ-11192-00-00
Required: 1
COVER, CYLINDER HEAD 2
In stock
Only 1 remaining
$19.59
You save $3.46
25
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-12497-00
Required: 3
GROMMET
Supersedes: 90480-12314-00
In stock
Only 4 remaining
$2.72
You save $0.48
In stock
Only 2 remaining
$11.47
You save $2.03
27
Yamaha Motors
"O"-Ring93210-25070-00
Required: 1
.O-RING
Supersedes: 93210-24M79-00
$5.52
You save $0.97
28
Yamaha Motors
Spark Plug NGK LKR7ELKR-7E000-00-00
Required: 4
PLUG, SPARK (NGK LKR7E)
In stock
5+ in stock
$10.71
You save $1.89
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
