2009 Outboard 60hp - F60TLR OIL PAN diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

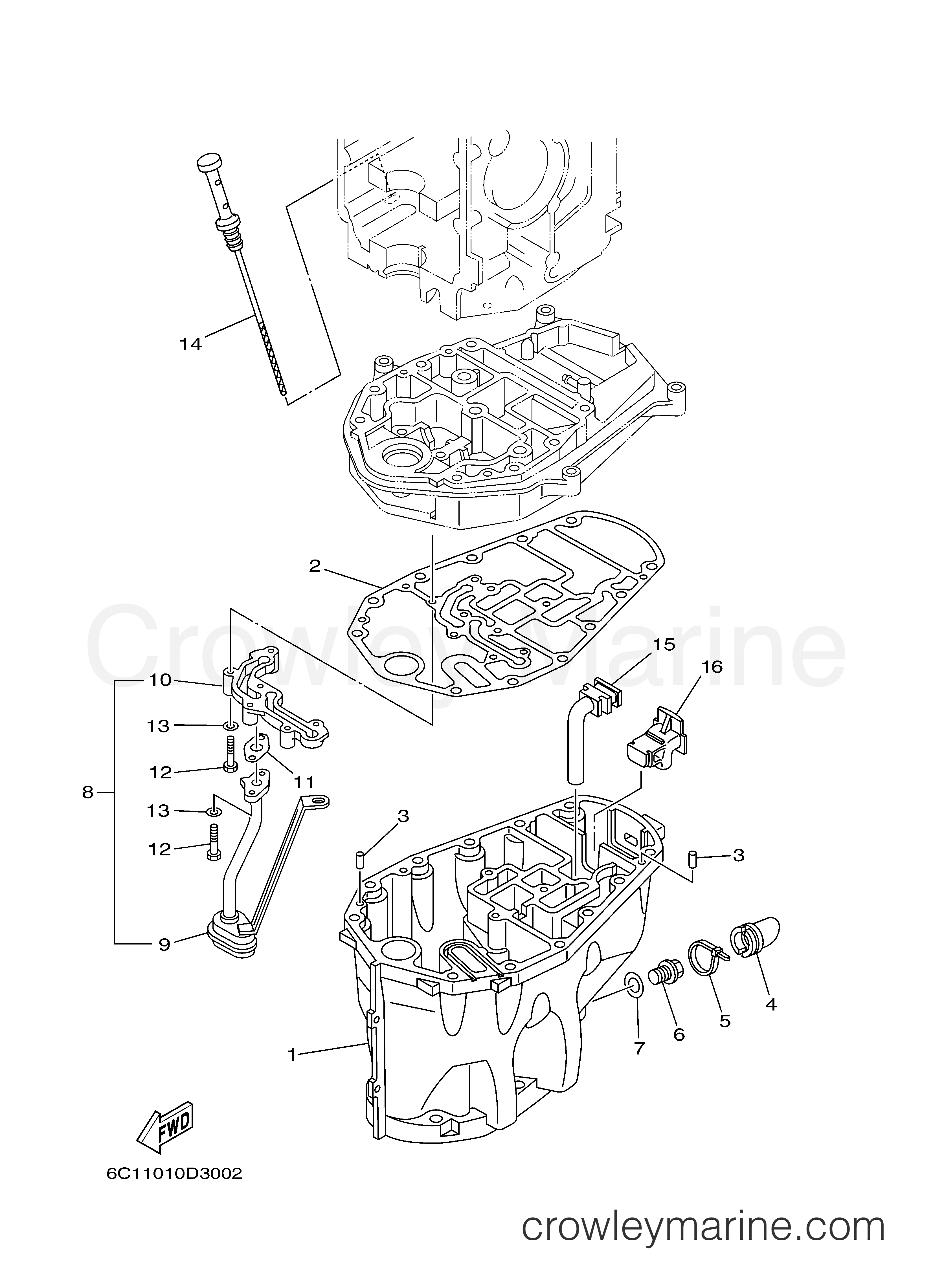

Yamaha Motors F60TLR - OIL PAN
Change View:
Oil Pan
1
Yamaha Motors
Oil Pan6C5-15311-02-00
Required: 1
OIL PAN
Supersedes: 6C5-15311-01-CA
Cross Ship
Leaves in 2-5 days
$617.10
$524.53
You save $92.57
More details
Damper
4
Yamaha Motors
Damper6CJ-15316-01-00
Required: 1
DAMPER 1
Supersedes: 6C5-15316-00-00
Cross Ship
Leaves in 2-5 days
$7.90
$6.71
You save $1.19
More details
Clamp
5
Yamaha Motors
Clamp90465-11M59-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$7.10
$6.03
You save $1.07
More details
Oil Strainer
9
Yamaha Motors
Oil Strainer6CJ-13411-00-00
Required: 1
STRAINER, OIL
Cross Ship
Leaves in 2-5 days
$90.70
$77.09
You save $13.61
More details
Cover
10
Yamaha Motors
Cover6CJ-15333-00-00
Required: 1
COVER
Cross Ship
Leaves in 2-5 days
$69.10
$58.73
You save $10.37
More details
Strainer Cover Gasket
11
Yamaha Motors
Strainer Cover Gasket6C5-13414-01-00
Required: 1
GASKET, STRAINER COVER
Supersedes: 6C5-13414-00-00
Cross Ship
Leaves in 2-5 days
$6.60
$5.61
You save $0.99
More details
Oil Level Plug
14
Yamaha Motors
Oil Level Plug6C5-15362-00-00
Required: 1
PLUG, OIL LEVEL
Cross Ship
Leaves in 2-5 days
$33.00
$28.05
You save $4.95
More details
Pipe
15
Yamaha Motors
Pipe6C5-45135-01-00
Required: 1
PIPE
Cross Ship
Leaves in 2-5 days
$121.85
$103.57
You save $18.28
More details
Pipe
16
Yamaha Motors
Pipe6C5-45136-10-00
Required: 1
PIPE
Supersedes: 6C5-45136-01-00
Cross Ship
Leaves in 2-5 days
$127.25
$108.16
You save $19.09
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
