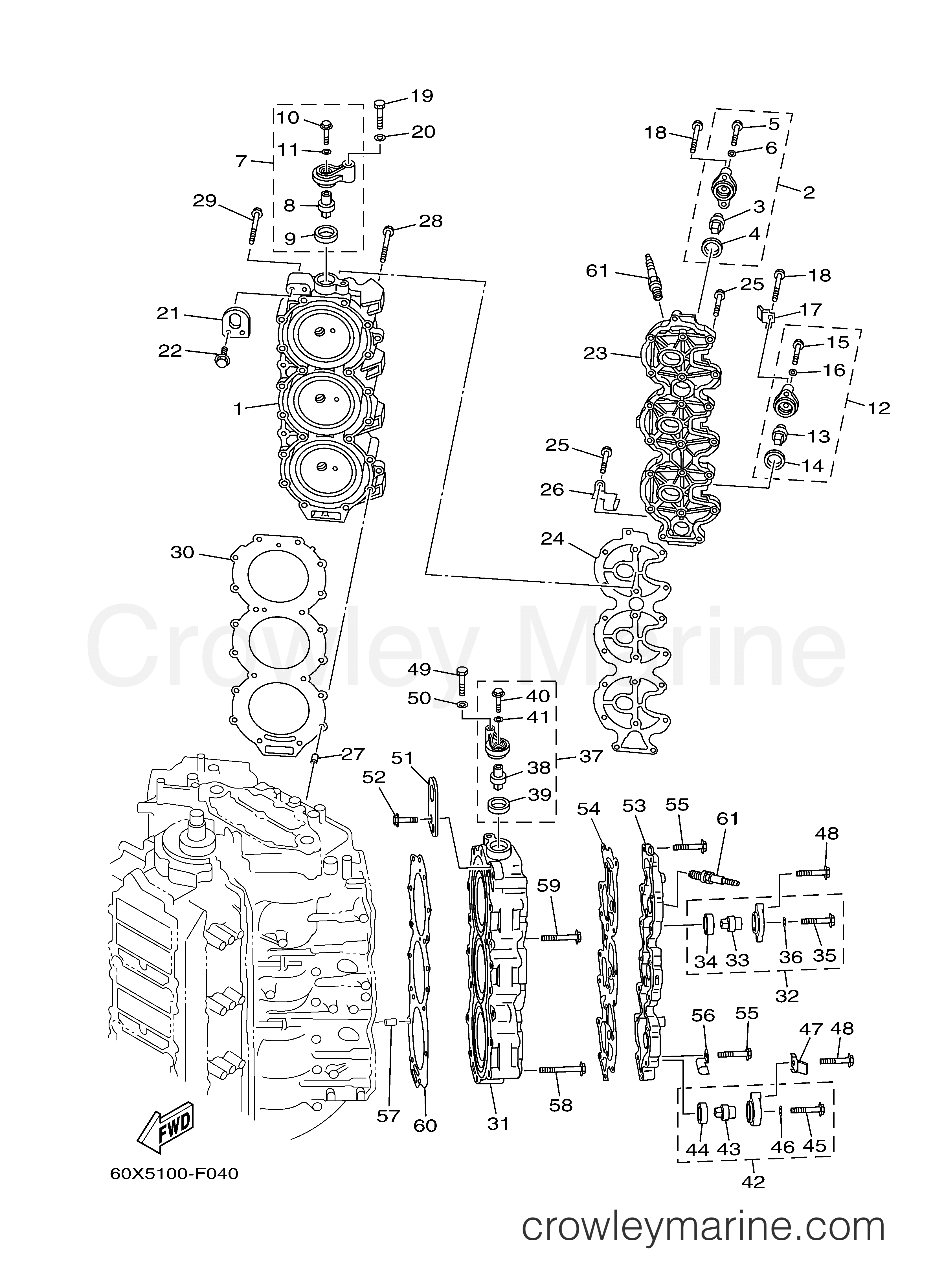

2008 Outboard 200hp - VZ200RTLR CYLINDER CRANKCASE 2 diagram
1
Yamaha Motors
Cylinder Head60V-11111-00-1S
Required: 1
HEAD, CYLINDER 1
$375.87
You save $66.33
-50%
2
Yamaha Motors
Anode Cover Assembly67F-11301-00-00
Required: 1
ANODE COVER ASSY
In stock
Only 1 remaining
$28.15
You save $28.15
3
Yamaha Motors
ANODE6ML-11325-00-00
Required: 1
.ANODE
Supersedes: 67F-11325-01-00
In stock
Only 3 remaining
$14.56
You save $3.64
4
Yamaha Motors
Anode Grommet67F-11328-01-00
Required: 1
.GROMMET, ANODE
Supersedes: 67F-11328-00-00
In stock
5+ in stock
$3.04
You save $0.76
5
Yamaha Motors
Flange Bolt90105-06M07-00
Required: 1
.BOLT, FLANGE
In stock
5+ in stock
$1.84
You save $0.46
In stock
Only 4 remaining
$2.92
You save $0.73
7
Yamaha Motors
ANODE COVER ASSY69J-11301-02-00
Required: 1
ANODE COVER ASSY
Supersedes: 69J-11301-00-00
In stock
Only 2 remaining
$36.28
You save $9.07
8
Yamaha Motors
ANODE6ML-11325-00-00
Required: 1
.ANODE
Supersedes: 67F-11325-01-00
In stock
Only 3 remaining
$14.56
You save $3.64
9
Yamaha Motors
Anode Grommet67F-11328-01-00
Required: 1
.GROMMET, ANODE
Supersedes: 67F-11328-00-00
In stock
5+ in stock
$3.04
You save $0.76
10
Yamaha Motors
Flange Bolt90105-06M07-00
Required: 1
.BOLT, FLANGE
In stock
5+ in stock
$1.84
You save $0.46
In stock
Only 4 remaining
$2.92
You save $0.73
-50%
12
Yamaha Motors
Anode Cover Assembly60V-11301-00-00
Required: 1
ANODE COVER ASSY
In stock
Only 1 remaining
$20.48
You save $20.48
13
Yamaha Motors
ANODE6ML-11325-00-00
Required: 1
.ANODE
Supersedes: 67F-11325-01-00
In stock
Only 3 remaining
$14.56
You save $3.64
14
Yamaha Motors
Anode Grommet67F-11328-01-00
Required: 1
.GROMMET, ANODE
Supersedes: 67F-11328-00-00
In stock
5+ in stock
$3.04
You save $0.76
15
Yamaha Motors
Flange Bolt90105-06M07-00
Required: 1
.BOLT, FLANGE
In stock
5+ in stock
$1.84
You save $0.46
In stock
Only 4 remaining
$2.92
You save $0.73
$4.08
You save $0.72
-50%
18
Yamaha Motors
Bolt with Washer97575-08550-00
Required: 3
BOLT, WITH WASHER
In stock
Only 2 remaining
$2.10
You save $2.10
19
Yamaha Motors
Bolt97095-08035-00
Required: 1
BOLT
Supersedes: 97075-08035-00
In stock
5+ in stock
$4.39
You save $1.10
20
Yamaha Motors
Plate Washer92990-08600-00
Required: 1
WASHER
Supersedes: 92995-08600-00
In stock
5+ in stock
$2.16
You save $0.54
21
Yamaha Motors
Engine Hanger63P-11119-10-00
Required: 1
HANGER, ENGINE
Supersedes: 68F-11119-00-00
In stock
Only 1 remaining
$9.82
You save $1.73
22
Yamaha Motors
Bolt with Washer90119-06MA2-00
Required: 2
BOLT, WITH WASHER
In stock
5+ in stock
$2.56
You save $0.64
23
Yamaha Motors
Cylinder Head Cover60V-11191-00-1S
Required: 1
COVER, CYLINDER HEAD 1
$134.30
You save $23.70
24
Yamaha Motors
Head Cover Gasket60V-11193-00-00
Required: 1
.GASKET, HEAD COVER 1
$38.59
You save $6.81
25
Yamaha Motors
Bolt with Washer90119-06MA4-00
Required: 18
BOLT, WITH WASHER
In stock
Only 1 remaining
$3.52
You save $0.88
26
Yamaha Motors
Harness Clamp68F-83919-00-00
Required: 1
CLAMP, HARNESS
$10.12
You save $1.79
$4.72
You save $0.83
28
Yamaha Motors
Bolt with Washer90119-08MA5-00
Required: 18
BOLT, WITH WASHER
$5.28
You save $1.32
29
Yamaha Motors
Bolt with Washer90119-08MA8-00
Required: 2
BOLT, WITH WASHER
In stock
5+ in stock
$3.92
You save $0.98
30
Yamaha Motors
Cylinder Head Gasket60V-11181-00-00
Required: 1
.GASKET, CYLINDER HEAD 1
$78.16
You save $13.79
31
Yamaha Motors
Cylinder Head60V-11121-00-1S
Required: 1
HEAD, CYLINDER 2
$439.62
You save $77.58
-50%
32
Yamaha Motors
Anode Cover Assembly67F-11301-00-00
Required: 1
ANODE COVER ASSY
In stock
Only 1 remaining
$28.15
You save $28.15
33
Yamaha Motors
ANODE6ML-11325-00-00
Required: 1
.ANODE
Supersedes: 67F-11325-01-00
In stock
Only 3 remaining
$14.56
You save $3.64
34
Yamaha Motors
Anode Grommet67F-11328-01-00
Required: 1
.GROMMET, ANODE
Supersedes: 67F-11328-00-00
In stock
5+ in stock
$3.04
You save $0.76
35
Yamaha Motors
Flange Bolt90105-06M07-00
Required: 1
.BOLT, FLANGE
In stock
5+ in stock
$1.84
You save $0.46
In stock
Only 4 remaining
$2.92
You save $0.73
37
Yamaha Motors
ANODE COVER ASSY69J-11301-02-00
Required: 1
ANODE COVER ASSY
Supersedes: 69J-11301-00-00
In stock
Only 2 remaining
$36.28
You save $9.07
38
Yamaha Motors
ANODE6ML-11325-00-00
Required: 1
.ANODE
Supersedes: 67F-11325-01-00
In stock
Only 3 remaining
$14.56
You save $3.64
39
Yamaha Motors
Anode Grommet67F-11328-01-00
Required: 1
.GROMMET, ANODE
Supersedes: 67F-11328-00-00
In stock
5+ in stock
$3.04
You save $0.76
40
Yamaha Motors
Flange Bolt90105-06M07-00
Required: 1
.BOLT, FLANGE
In stock
5+ in stock
$1.84
You save $0.46
In stock
Only 4 remaining
$2.92
You save $0.73
-50%
42
Yamaha Motors
Anode Cover Assembly60V-11301-00-00
Required: 1
ANODE COVER ASSY
In stock
Only 1 remaining
$20.48
You save $20.48
43
Yamaha Motors
ANODE6ML-11325-00-00
Required: 1
.ANODE
Supersedes: 67F-11325-01-00
In stock
Only 3 remaining
$14.56
You save $3.64
44
Yamaha Motors
Anode Grommet67F-11328-01-00
Required: 1
.GROMMET, ANODE
Supersedes: 67F-11328-00-00
In stock
5+ in stock
$3.04
You save $0.76
45
Yamaha Motors
Flange Bolt90105-06M07-00
Required: 1
.BOLT, FLANGE
In stock
5+ in stock
$1.84
You save $0.46
In stock
Only 4 remaining
$2.92
You save $0.73
$4.08
You save $0.72
-50%
48
Yamaha Motors
Bolt with Washer97575-08550-00
Required: 3
BOLT, WITH WASHER
In stock
Only 2 remaining
$2.10
You save $2.10
49
Yamaha Motors
Bolt97095-08035-00
Required: 1
BOLT
Supersedes: 97075-08035-00
In stock
5+ in stock
$4.39
You save $1.10
50
Yamaha Motors
Plate Washer92990-08600-00
Required: 1
WASHER
Supersedes: 92995-08600-00
In stock
5+ in stock
$2.16
You save $0.54
51
Yamaha Motors
Engine Hanger69J-1111E-00-00
Required: 1
HANGER, ENGINE 2
$25.24
You save $4.46
52
Yamaha Motors
Bolt with Washer90119-06MA2-00
Required: 2
BOLT, WITH WASHER
In stock
5+ in stock
$2.56
You save $0.64
53
Yamaha Motors
Cylinder Head Cover60V-11192-00-1S
Required: 1
COVER, CYLINDER HEAD 2
$145.35
You save $25.65
54
Yamaha Motors
Head Cover Gasket60V-11193-00-00
Required: 1
.GASKET, HEAD COVER 1
$38.59
You save $6.81
55
Yamaha Motors
Bolt with Washer90119-06MA4-00
Required: 18
BOLT, WITH WASHER
In stock
Only 1 remaining
$3.52
You save $0.88
56
Yamaha Motors
Harness Clamp68F-83919-00-00
Required: 1
CLAMP, HARNESS
$10.12
You save $1.79
$4.72
You save $0.83
58
Yamaha Motors
Bolt with Washer90119-08MA5-00
Required: 18
BOLT, WITH WASHER
$5.28
You save $1.32
59
Yamaha Motors
Bolt with Washer90119-08MA8-00
Required: 2
BOLT, WITH WASHER
In stock
5+ in stock
$3.92
You save $0.98
60
Yamaha Motors
Cylinder Head Gasket60V-11181-00-00
Required: 1
.GASKET, CYLINDER HEAD 1
$78.16
You save $13.79
61
Yamaha Motors
Spark Plug NGK BKR6EKUBKR-6EKU1-00-00
Required: 6
PLUG, SPARK (NGK BKR6EKU)
Supersedes: NGK-BKR6E-KU-10
In stock
Only 2 remaining
$10.56
You save $2.64
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
