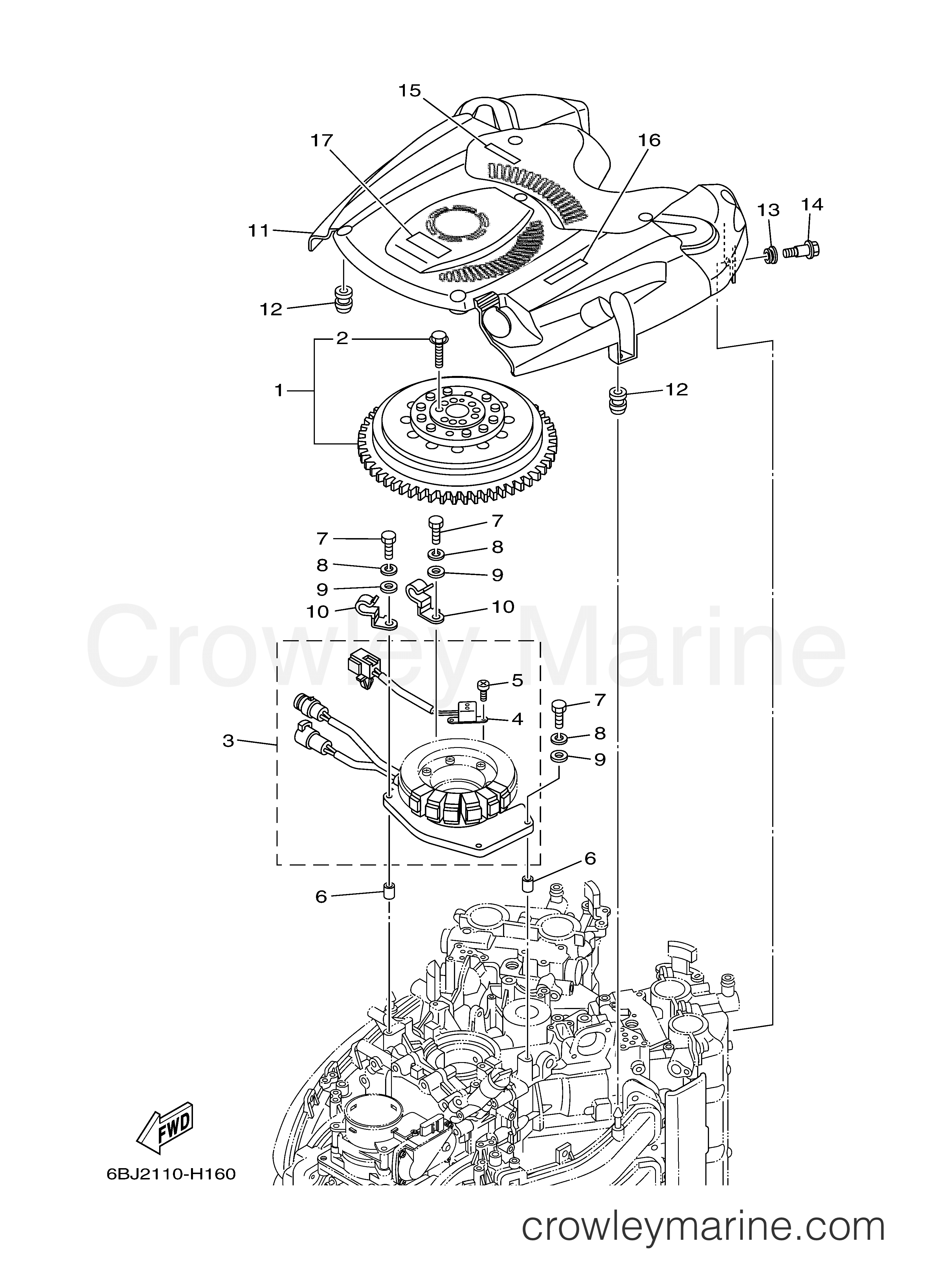

2008 Outboard 300hp - F300TXR GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors F300TXR - GENERATOR
Change View:
6AW-W8145-00-00
1
Yamaha Motors
6AW-W8145-00-006AW-81450-00-00
Required: 1
ROTOR ASSY WITH BOLTS
Supersedes: 6AW-W8145-00-00
Cross Ship
Leaves in 2-5 days
$264.60
$224.91
You save $39.69
More details
BOLT SET
2
Yamaha Motors
BOLT SET6EK-W9010-00-00
Required: 1
.BOLT SET (FOR ROTOR ASSY)
Supersedes: 6AW-W9011-00-00
Cross Ship
Leaves in 2-5 days
$79.90
$67.92
You save $11.98
More details
Base Assembly
3
Yamaha Motors
Base Assembly6AW-81460-00-00
Required: 1
BASE ASSY
Cross Ship
Leaves in 2-5 days
$1119.00
$951.15
You save $167.85
More details
Pulser Coil
4
Yamaha Motors
Pulser Coil6AW-85580-00-00
Required: 1
.COIL, PULSER
Cross Ship
Leaves in 2-5 days
$67.40
$57.29
You save $10.11
More details
Pan Head Screw
5
Yamaha Motors
Pan Head Screw98517-05012-00
Required: 2
.SCREW, WITH WASHER (M5X12)
Supersedes: 63D-81345-00-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
Clamp
10
Yamaha Motors
Clamp90462-10042-00
Required: 2
CLAMP
Cross Ship
Leaves in 2-5 days
$7.80
$6.63
You save $1.17
More details
Flywheel Cover
11
Yamaha Motors
Flywheel Cover6AW-81337-02-00
Required: 1
COVER, FLYWHEEL
Supersedes: 6AW-81337-01-00
Cross Ship
Leaves in 2-5 days
$167.90
$142.72
You save $25.19
More details
Bolt
14
Yamaha Motors
Bolt90109-06MA1-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$6.75
$5.74
You save $1.01
More details
Caution Mark
15
Yamaha Motors
Caution Mark67F-12138-40-00
Required: 1
MARK, CAUTION
Cross Ship
Leaves in 2-5 days
$4.85
$4.12
You save $0.73
More details
Caution Mark
16
Yamaha Motors
Caution Mark6AW-13437-41-00
Required: 1
MARK, CAUTION
Supersedes: 6AW-13437-40-00
Cross Ship
Leaves in 2-5 days
$6.15
$5.23
You save $0.92
More details
SAFETY LABEL
17
Yamaha Motors
SAFETY LABEL6EE-81994-40-00
Required: 1
LABEL, SAFETY
Supersedes: 6AH-81994-40-00
Cross Ship
Leaves in 2-5 days
$17.10
$14.53
You save $2.56
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
