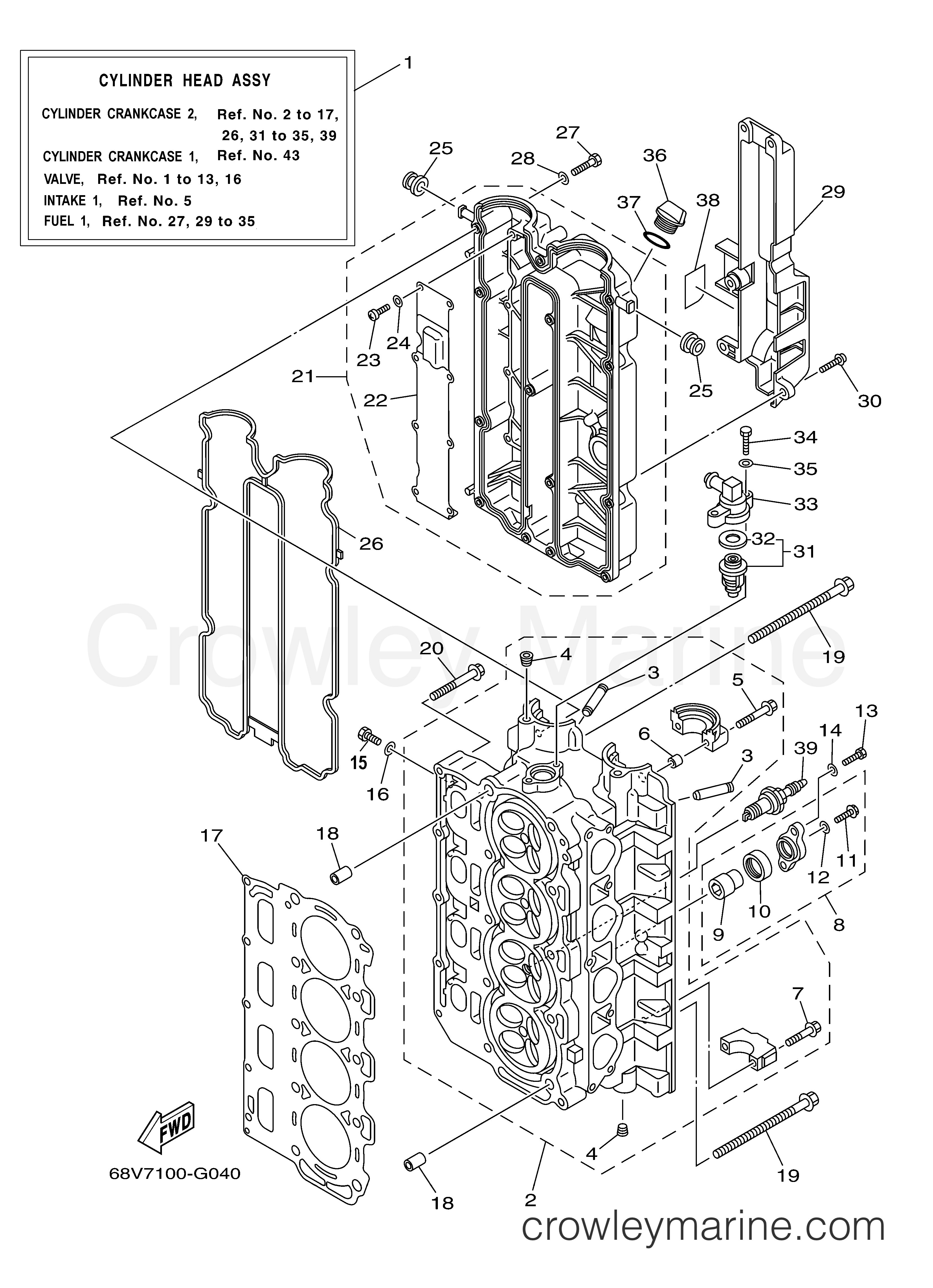

2007 Outboard 115hp - LF115TXR CYLINDER CRANKCASE 2 diagram
1
Yamaha Motors
Complete Cylinder Head68V-W009A-19-9S
Required: 1
CYLINDER HEAD COMPLETE
Supersedes: 68V-W009A-05-1S
In stock
Only 1 remaining
$2214.85
You save $390.86
2
Yamaha Motors
Cylinder Head99999-04110-00
Required: 1
CYLINDER HEAD ASSY
Supersedes: 68V-11110-03-94
$2532.83
You save $446.97
3
Yamaha Motors
Valve Guide67F-11133-10-00
Required: 16
.GUIDE, VALVE 1
$108.46
You save $19.14
4
Yamaha Motors
Taper Screw Plug90344-51008-00
Required: 4
.PLUG, TAPER SCREW
Supersedes: 90344-51019-00
In stock
Only 1 remaining
$2.59
You save $0.46
5
Yamaha Motors
Washer-Cam Caps Bolt90119-07235-00
Required: 4
.BOLT/WASHER-CAM CAPS
$3.10
You save $0.55
$4.72
You save $0.83
7
Yamaha Motors
Bolt With Washer90119-07234-00
Required: 16
.BOLT, WITH WASHER
$2.72
You save $0.48
8
Yamaha Motors
ANODE COVER ASSY67F-11301-11-00
Required: 2
ANODE COVER ASSY
Supersedes: 67F-11301-10-00
$46.37
You save $8.18
In stock
Only 4 remaining
$18.87
You save $3.33
10
Yamaha Motors
Anode Grommet67F-11328-01-00
Required: 1
.GROMMET, ANODE
Supersedes: 67F-11328-00-00
In stock
5+ in stock
$3.23
You save $0.57
11
Yamaha Motors
Flange Bolt90105-06M07-00
Required: 1
.BOLT, FLANGE
In stock
5+ in stock
$1.96
You save $0.35
In stock
Only 4 remaining
$3.10
You save $0.55
$5.06
You save $0.89
14
Yamaha Motors
Plate Washer92990-08600-00
Required: 4
WASHER
Supersedes: 92995-08600-00
In stock
5+ in stock
$2.29
You save $0.41
$0.94
You save $0.17
$2.85
You save $0.50
17
Yamaha Motors
Cylinder Head Gasket67F-11181-03-00
Required: 1
.GASKET, CYLINDER HEAD 1
In stock
Only 2 remaining
$123.17
You save $21.73
18
Yamaha Motors
Dowel Pin99530-14016-00
Required: 2
COLLAR
Supersedes: 90387-10M08-00
In stock
Only 4 remaining
$3.23
You save $0.57
$5.52
You save $0.98
20
Yamaha Motors
Bolt with Washer90119-08M91-00
Required: 5
BOLT, WITH WASHER
In stock
5+ in stock
$4.17
You save $0.74
21
Yamaha Motors
Cylinder Head Cover68V-11191-00-9S
Required: 1
COVER, CYLINDER HEAD 1
Supersedes: 68V-11191-00-1S
$272.09
You save $48.01
22
Yamaha Motors
Breather Cover67F-11168-00-00
Required: 1
.COVER, BREATHER
$40.55
You save $7.16
23
Yamaha Motors
Pan Head Screw98507-04008-00
Required: 8
.SCREW, PAN HEAD
$1.82
You save $0.32
$1.57
You save $0.28
In stock
5+ in stock
$8.07
You save $1.42
26
Yamaha Motors
Cylinder Seal6D8-11356-01-00
Required: 1
.SEAL, CYLINDER 2
$40.16
You save $7.09
27
Yamaha Motors
Bolt97080-06030-00
Required: 14
BOLT
Supersedes: 97095-06030-00
In stock
5+ in stock
$3.49
You save $0.62
28
Yamaha Motors
Plate Washer92990-06600-00
Required: 14
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
29
Yamaha Motors
COVER, CYLINDER HEAD 267F-11192-02-00
Required: 1
COVER, CYLINDER HEAD 2
Supersedes: 67F-11192-01-00
In stock
5+ in stock
$16.41
You save $2.89
30
Yamaha Motors
Screw With Washer90159-06M29-00
Required: 5
SCREW, WITH WASHER
In stock
5+ in stock
$2.72
You save $0.48
In stock
Only 4 remaining
$47.13
You save $8.32
32
Yamaha Motors
Thermostat Seal67F-12412-00-00
Required: 1
.SEAL, THERMOSTAT
In stock
5+ in stock
$6.97
You save $1.23
33
Yamaha Motors
Thermostat Cover68V-12413-00-9S
Required: 1
COVER, THERMOSTAT
Supersedes: 68V-12413-00-1S
In stock
Only 1 remaining
$16.83
You save $2.97
$2.85
You save $0.50
35
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
In stock
Only 2 remaining
$11.47
You save $2.03
37
Yamaha Motors
"O"-Ring93210-25070-00
Required: 1
.O-RING
Supersedes: 93210-24M79-00
$5.52
You save $0.97
$4.55
You save $0.80
39
Yamaha Motors
Spark Plug (NGK LFR6A-11)LFR-6A110-00-00
Required: 4
PLUG, SPARK (NGK LFR6A-11)
Supersedes: NGK-LFR6A-11-00
In stock
5+ in stock
$8.25
You save $1.46
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
