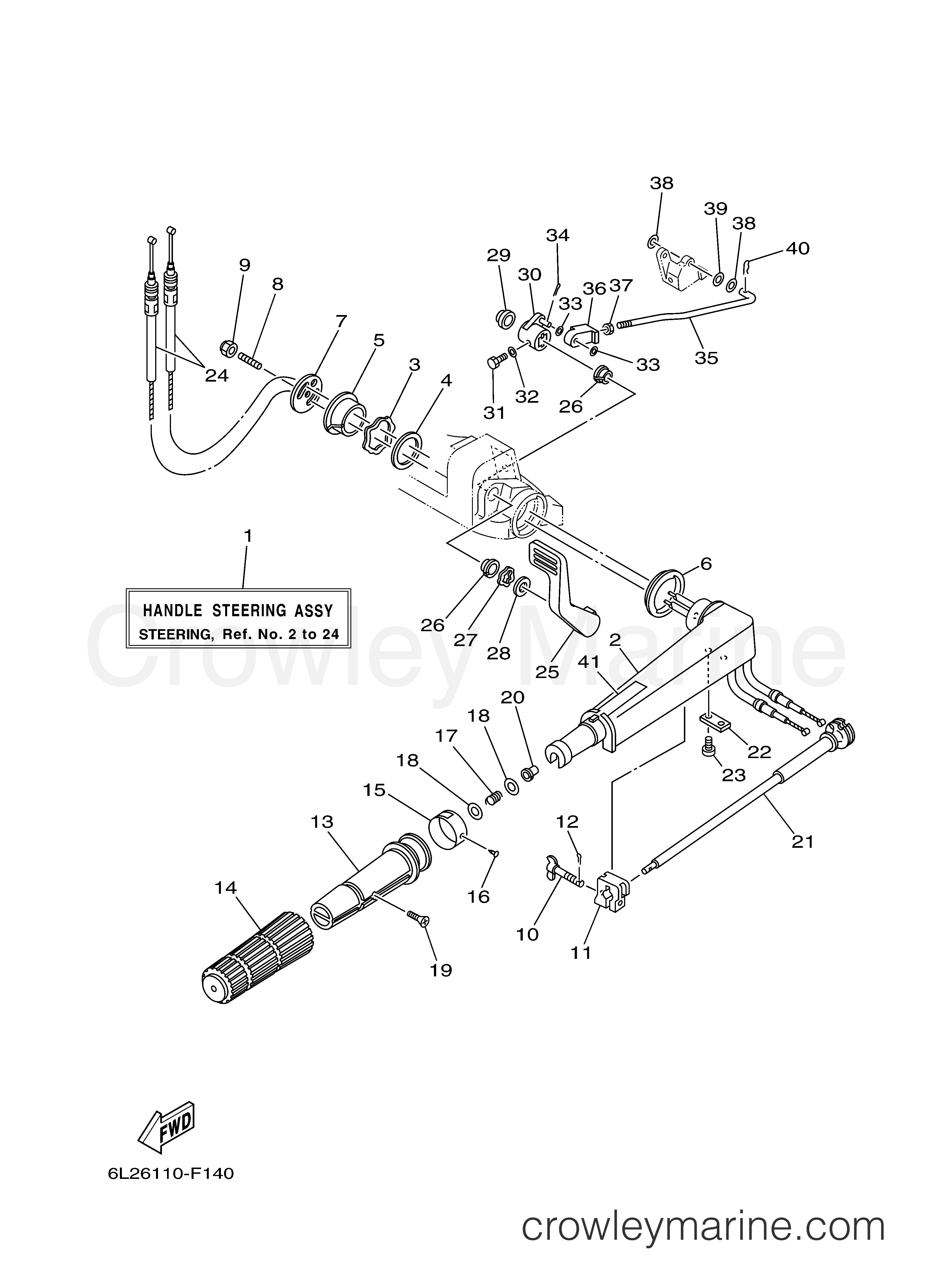

2006 Outboard 25hp - 25ESR STEERING diagram
1
Yamaha Motors
Handle Steering Assembly6L2-W0084-12-8D
Required: 1
HANDLE STEERING ASSY
Supersedes: 6L2-W0084-11-4D
$185.98
You save $32.82
2
Yamaha Motors
Steering Handle6G1-42111-12-8D
Required: 1
HANDLE, STEERING
Supersedes: 6G1-42111-12-4D
$146.75
You save $25.90
$8.03
You save $1.42
4
Yamaha Motors
Plate Washer90202-36M55-00
Required: 1
WASHER, PLATE
In stock
Only 1 remaining
$5.31
You save $0.94
In stock
Only 1 remaining
$5.44
You save $0.96
In stock
Only 2 remaining
$5.99
You save $1.06
7
Yamaha Motors
Handle Steering Cover6G1-42131-02-00
Required: 1
COVER, HANDLE STEERING
$12.54
You save $2.21
$6.71
You save $1.19
9
Yamaha Motors
Flange Nut95780-08300-00
Required: 1
NUT, SELF-LOCKING
Supersedes: 90185-08057-00
$10.03
You save $1.77
10
Yamaha Motors
Friction Adjusting Bolt6G1-42125-01-00
Required: 1
BOLT, FRICTION ADJUSTING
$33.19
You save $5.86
11
Yamaha Motors
Steering Handle Grip Friction6G1-42126-00-00
Required: 1
FRICTION, STEERING HANDLE GRIP
$12.15
You save $2.14
$2.29
You save $0.41
13
Yamaha Motors
Steering Handle Grip664-42119-00-00
Required: 1
GRIP, STEERING HANDLE
In stock
5+ in stock
$24.86
You save $4.39
14
Yamaha Motors
Rubber Handle6G1-42177-01-00
Required: 1
RUBBER, HANDLE
Supersedes: 6F6-42177-A0-00
In stock
5+ in stock
$14.58
You save $2.57
15
Yamaha Motors
Throttle Indicator6L2-42137-00-00
Required: 1
INDICATOR, THROTTLE
In stock
Only 2 remaining
$13.18
You save $2.33
In stock
5+ in stock
$4.72
You save $0.83
17
Yamaha Motors
Compression Spring90501-23215-00
Required: 1
SPRING, COMPRESSION
In stock
Only 4 remaining
$7.01
You save $1.24
18
Yamaha Motors
Plate Washer90201-10M02-00
Required: 2
WASHER, PLATE
In stock
Only 2 remaining
$3.91
You save $0.69
In stock
Only 5 remaining
$2.85
You save $0.50
In stock
5+ in stock
$4.72
You save $0.83
21
Yamaha Motors
Throttle Lever6G1-42138-01-00
Required: 1
LEVER, THROTTLE
In stock
Only 4 remaining
$33.11
You save $5.84
$6.08
You save $1.07
23
Yamaha Motors
Pan Head Screw97885-05012-00
Required: 2
SCREW, PAN HEAD
$2.59
You save $0.46
24
Yamaha Motors
Throttle Cable Assembly6L2-26301-01-00
Required: 2
THROTTLE CABLE ASSY
Supersedes: 6L2-26301-00-00
In stock
Only 1 remaining
$14.75
You save $2.60
25
Yamaha Motors
Gear Shift Handle6L2-44111-01-94
Required: 1
HANDLE, GEAR SHIFT
$38.97
You save $6.88
In stock
Only 4 remaining
$6.88
You save $1.21
In stock
Only 5 remaining
$5.06
You save $0.89
28
Yamaha Motors
Plate Washer90202-15M37-00
Required: 1
WASHER, PLATE
$5.44
You save $0.96
$7.31
You save $1.29
30
Yamaha Motors
Shift Rod Lever6L2-44125-00-94
Required: 1
LEVER, SHIFT ROD
In stock
Only 1 remaining
$24.27
You save $4.28
31
Yamaha Motors
Bolt97080-06020-00
Required: 1
BOLT
Supersedes: 97095-06020-00
In stock
5+ in stock
$3.82
You save $0.68
32
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
33
Yamaha Motors
Plate Washer90202-06009-00
Required: 2
WASHER, PLATE
$7.31
You save $1.29
In stock
Only 1 remaining
$1.69
You save $0.30
35
Yamaha Motors
Shift Rod Link6L2-44124-00-00
Required: 1
LINK, SHIFT ROD
$15.21
You save $2.69
In stock
Only 2 remaining
$9.69
You save $1.71
In stock
Only 4 remaining
$8.07
You save $1.42
38
Yamaha Motors
Plate Washer90202-05088-00
Required: 2
WASHER, PLATE
In stock
Only 2 remaining
$6.54
You save $1.16
39
Yamaha Motors
Plate Washer90202-05M38-00
Required: 1
WASHER, PLATE
In stock
Only 5 remaining
$3.02
You save $0.53
In stock
5+ in stock
$3.02
You save $0.53
41
Yamaha Motors
Caution Label6E0-83627-41-00
Required: 1
LABEL, CAUTION 7
$9.69
You save $1.71
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
