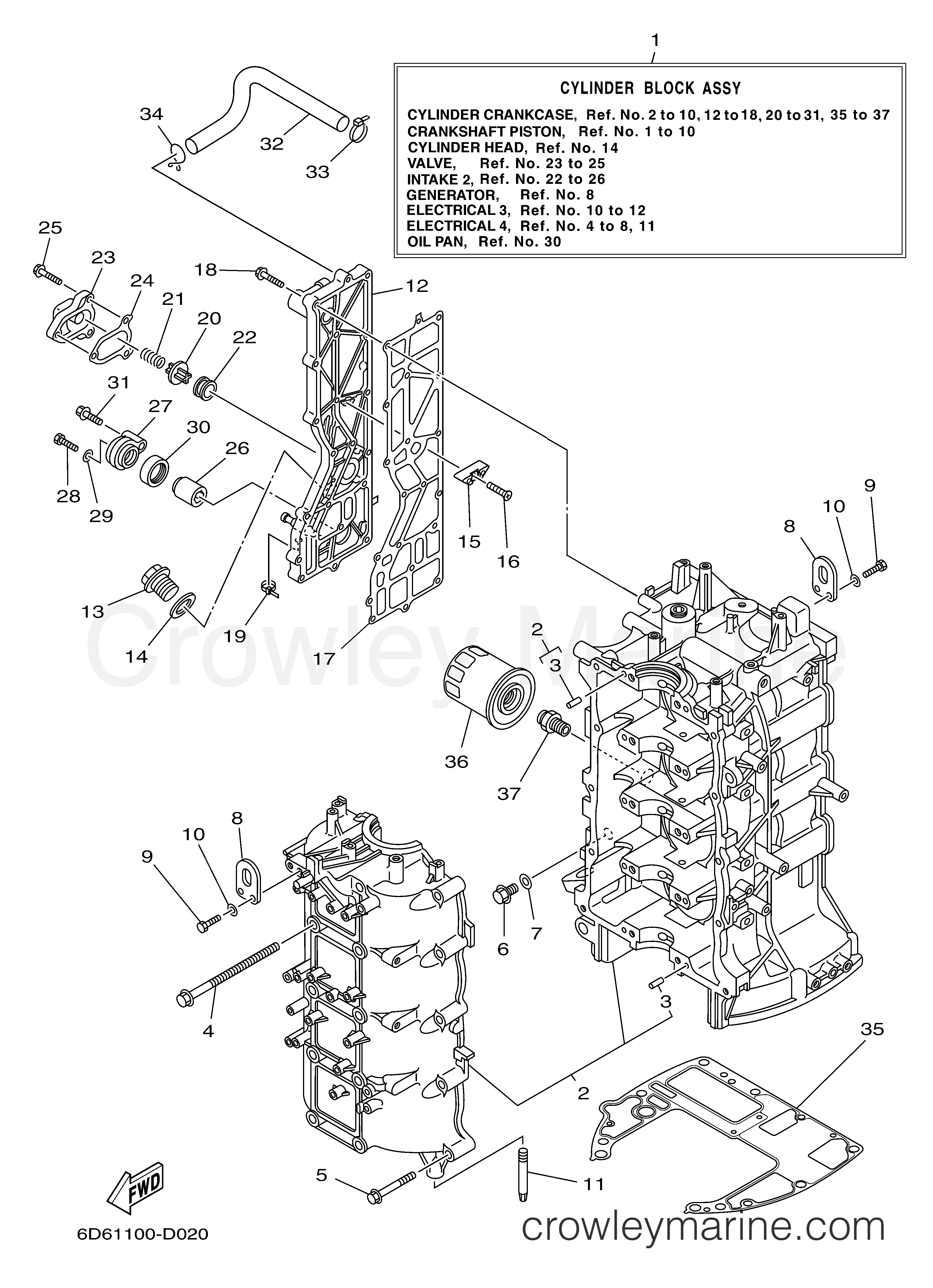

2005 Outboard 75hp - F75TLRD CYLINDER CRANKCASE 1 diagram
1
Yamaha Motors
Cylinder Block Assembly99999-04187-00
Required: 1
CYLINDER BLOCK ASSY
Supersedes: 6D8-W009B-00-1S
$4263.09
You save $752.31
2
Yamaha Motors
Crankcase Assembly6D8-15100-02-00
Required: 1
CRANKCASE ASSY
Supersedes: 6D8-15100-00-1S
$1692.01
You save $298.59
In stock
5+ in stock
$3.91
You save $0.69
4
Yamaha Motors
Bolt with Washer90119-10M88-00
Required: 10
BOLT, WITH WASHER
$10.84
You save $1.91
5
Yamaha Motors
Bolt w/ Washer90119-08M66-00
Required: 10
BOLT, WITH WASHER
In stock
Only 3 remaining
$3.10
You save $0.55
6
Yamaha Motors
Straight Screw Plug90340-14M06-00
Required: 1
PLUG, STRAIGHT SCREW
In stock
5+ in stock
$12.07
You save $2.13
In stock
Only 2 remaining
$2.55
You save $0.45
8
Yamaha Motors
Engine Hanger62Y-11119-00-00
Required: 2
HANGER, ENGINE
$11.26
You save $1.99
9
Yamaha Motors
Bolt97080-06020-00
Required: 4
BOLT
Supersedes: 97095-06020-00
In stock
5+ in stock
$3.82
You save $0.68
10
Yamaha Motors
Plate Washer92990-06600-00
Required: 4
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
$23.93
You save $4.22
12
Yamaha Motors
Obsolete Yamaha Part68V-WS41D-02-9S
Required: 1
OUTER COVER, EXHAUST
Supersedes: 6D8-41113-00-1S
$218.28
You save $38.52
13
Yamaha Motors
Straight Screw Plug90340-18M09-00
Required: 1
.PLUG, STRAIGHT SCREW
$23.89
You save $4.21
$8.07
You save $1.42
In stock
5+ in stock
$4.68
You save $0.83
16
Yamaha Motors
Flat Head Screw98780-04016-00
Required: 3
SCREW, FLAT HEAD
In stock
5+ in stock
$1.27
You save $0.22
17
Yamaha Motors
Exhaust Outer Cover Gasket67F-41114-A2-00
Required: 1
GASKET, EXHAUST OUTER COVER
Supersedes: 67F-41114-A1-00
In stock
Only 1 remaining
$15.77
You save $2.78
18
Yamaha Motors
Bolt with Washer90119-06MA4-00
Required: 18
BOLT, WITH WASHER
In stock
Only 1 remaining
$3.74
You save $0.66
19
Yamaha Motors
Clamp90465-10098-00
Required: 1
CLAMP
Supersedes: 90465-11M10-00
In stock
5+ in stock
$2.29
You save $0.41
20
Yamaha Motors
PRESSURE CONTROL VALVE6G5-12416-00-00
Required: 1
VALVE, PRESSURE CONTROL
In stock
Only 5 remaining
$11.69
You save $2.06
21
Yamaha Motors
Compression Spring90501-16M11-00
Required: 1
SPRING, COMPRESSION
In stock
5+ in stock
$6.46
You save $1.14
In stock
5+ in stock
$3.74
You save $0.66
23
Yamaha Motors
Cover67F-1246A-A0-9S
Required: 1
COVER 1
Supersedes: 67F-1246A-00-1S
$21.68
You save $3.82
In stock
Only 3 remaining
$5.74
You save $1.01
25
Yamaha Motors
Bolt with Washer90119-06MA2-00
Required: 3
BOLT, WITH WASHER
In stock
5+ in stock
$2.72
You save $0.48
In stock
5+ in stock
$23.04
You save $4.07
27
Yamaha Motors
ANODE COVER ASSY69J-11301-11-00
Required: 1
COVER, ANODE
Supersedes: 69J-11327-00-94
In stock
5+ in stock
$15.29
You save $2.70
28
Yamaha Motors
BOLT97095-06020-00
Required: 1
BOLT
Supersedes: 97075-06020-00
$3.82
You save $0.68
29
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
30
Yamaha Motors
Anode Grommet67F-11328-01-00
Required: 1
.GROMMET, ANODE
Supersedes: 67F-11328-00-00
In stock
5+ in stock
$3.23
You save $0.57
31
Yamaha Motors
BOLT, HEXAGON W/W DE97E75-08540-00
Required: 1
BOLT, WITH WASHER
Supersedes: 97575-08540-00
In stock
Only 5 remaining
$4.55
You save $0.80
$25.67
You save $4.53
33
Yamaha Motors
Clamp90465-10098-00
Required: 1
CLAMP
Supersedes: 90465-11M10-00
In stock
5+ in stock
$2.29
You save $0.41
$5.74
You save $1.01
35
Yamaha Motors
Cylinder Gasket68V-11351-00-00
Required: 1
.GASKET, CYLINDER
In stock
5+ in stock
$68.38
You save $12.07
36
Yamaha Motors
ELEMENT ASSY, OIL CLEANER5GH-13440-72-00
Required: 1
ELEMENT ASSY, OIL CLEANER
Supersedes: 5GH-13440-00-00
In stock
Only 2 remaining
$14.24
You save $2.51
37
Yamaha Motors
Union Bolt90401-20007-00
Required: 1
BOLT, UNION
Supersedes: 90401-20145-00
In stock
Only 1 remaining
$17.25
You save $3.05
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
