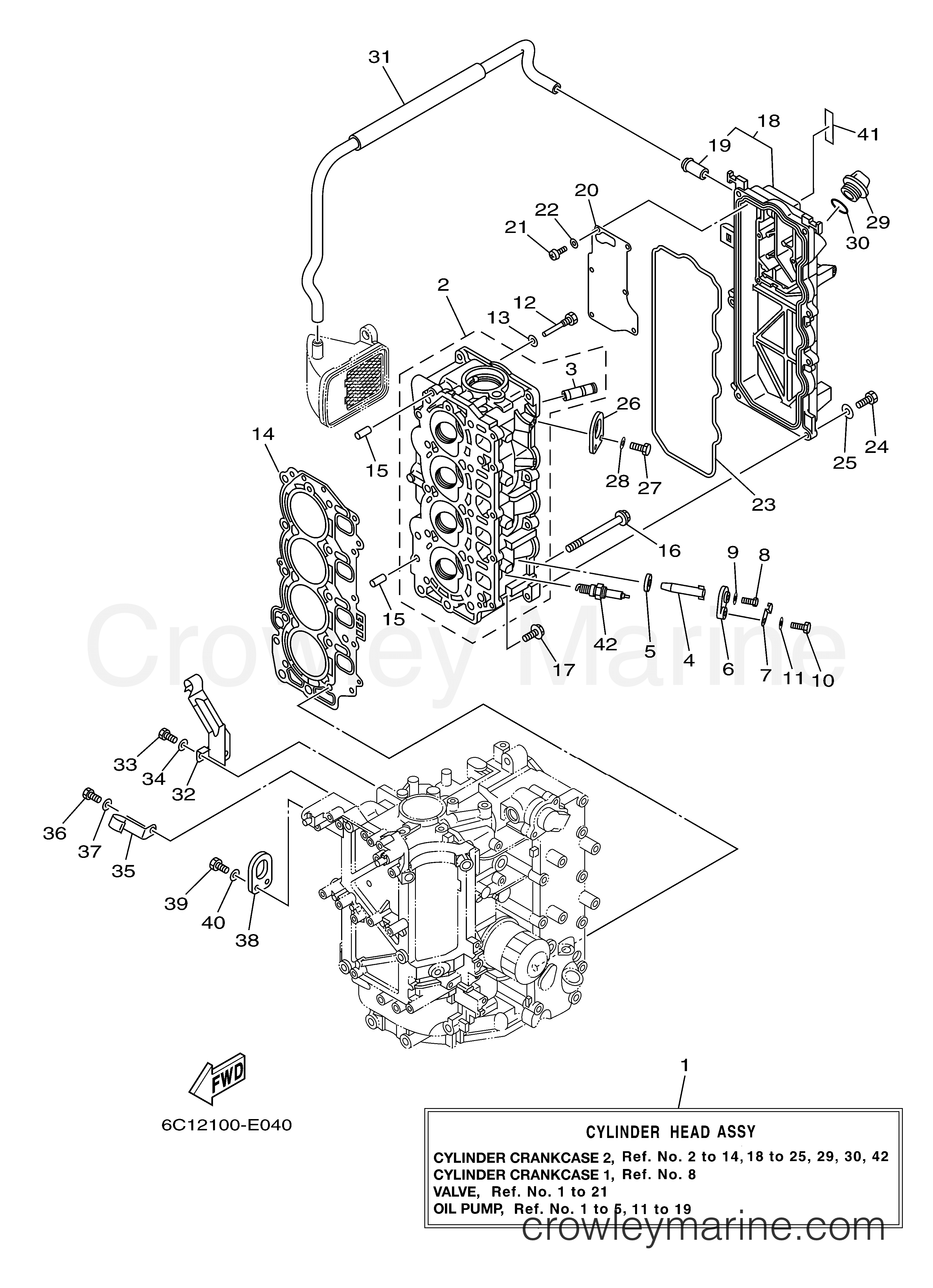

2005 Outboard 60hp - F60TLR CYLINDER CRANKCASE 2 diagram
1
Yamaha Motors
Cylinder Head Complete6C5-W009A-13-9S
Required: 1
CYLINDER HEAD COMPLETE
Supersedes: 6C5-W009A-01-1S
$2530.37
You save $446.53
2
Yamaha Motors
Cylinder Head99999-04131-00
Required: 1
HEAD, CYLINDER 1
Supersedes: 6C5-11111-00-1S
$1263.23
You save $222.92
3
Yamaha Motors
Valve Guide62Y-11133-31-00
Required: 8
.GUIDE, VALVE 1
Supersedes: 62Y-11133-30-00
$36.34
You save $6.41
In stock
5+ in stock
$9.69
You save $1.71
5
Yamaha Motors
Anode Grommet66M-11328-01-00
Required: 4
GROMMET, ANODE
Supersedes: 66M-11328-00-00
In stock
5+ in stock
$1.15
You save $0.20
In stock
Only 2 remaining
$9.10
You save $1.61
In stock
Only 3 remaining
$5.31
You save $0.94
In stock
Only 1 remaining
$1.49
You save $0.26
9
Yamaha Motors
Plate Washer92990-05600-00
Required: 4
WASHER
Supersedes: 92995-05600-00
In stock
Only 4 remaining
$0.68
You save $0.12
10
Yamaha Motors
Bolt97080-06020-00
Required: 4
BOLT
Supersedes: 97095-06020-00
In stock
5+ in stock
$3.82
You save $0.68
11
Yamaha Motors
Plate Washer92990-06600-00
Required: 4
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
$28.04
You save $4.95
In stock
Only 4 remaining
$7.31
You save $1.29
14
Yamaha Motors
Cylinder Head Gasket6C5-11181-01-00
Required: 1
.GASKET, CYLINDER HEAD 1
In stock
Only 2 remaining
$57.80
You save $10.20
In stock
Only 1 remaining
$5.61
You save $0.99
$7.31
You save $1.29
17
Yamaha Motors
Bolt with Washer90119-06MA3-00
Required: 5
BOLT, WITH WASHER
In stock
5+ in stock
$2.72
You save $0.48
18
Yamaha Motors
Cylinder Head Cover6C5-11191-02-9S
Required: 1
COVER, CYLINDER HEAD 1
Supersedes: 6C5-11191-01-1S
$105.44
You save $18.61
$14.11
You save $2.49
20
Yamaha Motors
Breather Cover6C5-11168-00-00
Required: 1
COVER, BREATHER
$5.23
You save $0.92
21
Yamaha Motors
Pan Head Screw98507-04010-00
Required: 6
SCREW, PAN HEAD
$3.02
You save $0.53
$1.57
You save $0.28
23
Yamaha Motors
Cylinder Seal62Y-11356-00-00
Required: 1
.SEAL, CYLINDER 2
In stock
Only 4 remaining
$15.94
You save $2.81
24
Yamaha Motors
Bolt97080-06020-00
Required: 7
BOLT
Supersedes: 97095-06020-00
In stock
5+ in stock
$3.82
You save $0.68
25
Yamaha Motors
Plate Washer92990-06600-00
Required: 7
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
26
Yamaha Motors
Engine Hanger62Y-11119-00-00
Required: 1
HANGER, ENGINE
$11.26
You save $1.99
27
Yamaha Motors
Bolt97080-06020-00
Required: 2
BOLT
Supersedes: 97095-06020-00
In stock
5+ in stock
$3.82
You save $0.68
28
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
In stock
Only 2 remaining
$11.47
You save $2.03
30
Yamaha Motors
"O"-Ring93210-25070-00
Required: 1
.O-RING
Supersedes: 93210-24M79-00
$5.52
You save $0.97
31
Yamaha Motors
Breather Hose6C5-1531A-01-00
Required: 1
HOSE, BREATHER 1
$59.20
You save $10.45
$21.04
You save $3.71
In stock
5+ in stock
$1.32
You save $0.23
34
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
$11.13
You save $1.96
In stock
5+ in stock
$1.32
You save $0.23
37
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
38
Yamaha Motors
Engine Hanger62Y-11119-00-00
Required: 1
HANGER, ENGINE
$11.26
You save $1.99
39
Yamaha Motors
Bolt97080-06020-00
Required: 2
BOLT
Supersedes: 97095-06020-00
In stock
5+ in stock
$3.82
You save $0.68
40
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
In stock
Only 1 remaining
$4.89
You save $0.86
42
Yamaha Motors
Spark Plug, NGK DPR6EBDPR-6EB90-00-00
Required: 4
PLUG, SPARK (NGK DPR6EB)
Supersedes: NGK-DPR6E-B9-00
In stock
5+ in stock
$4.00
You save $0.71
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
