All diagrams for this model

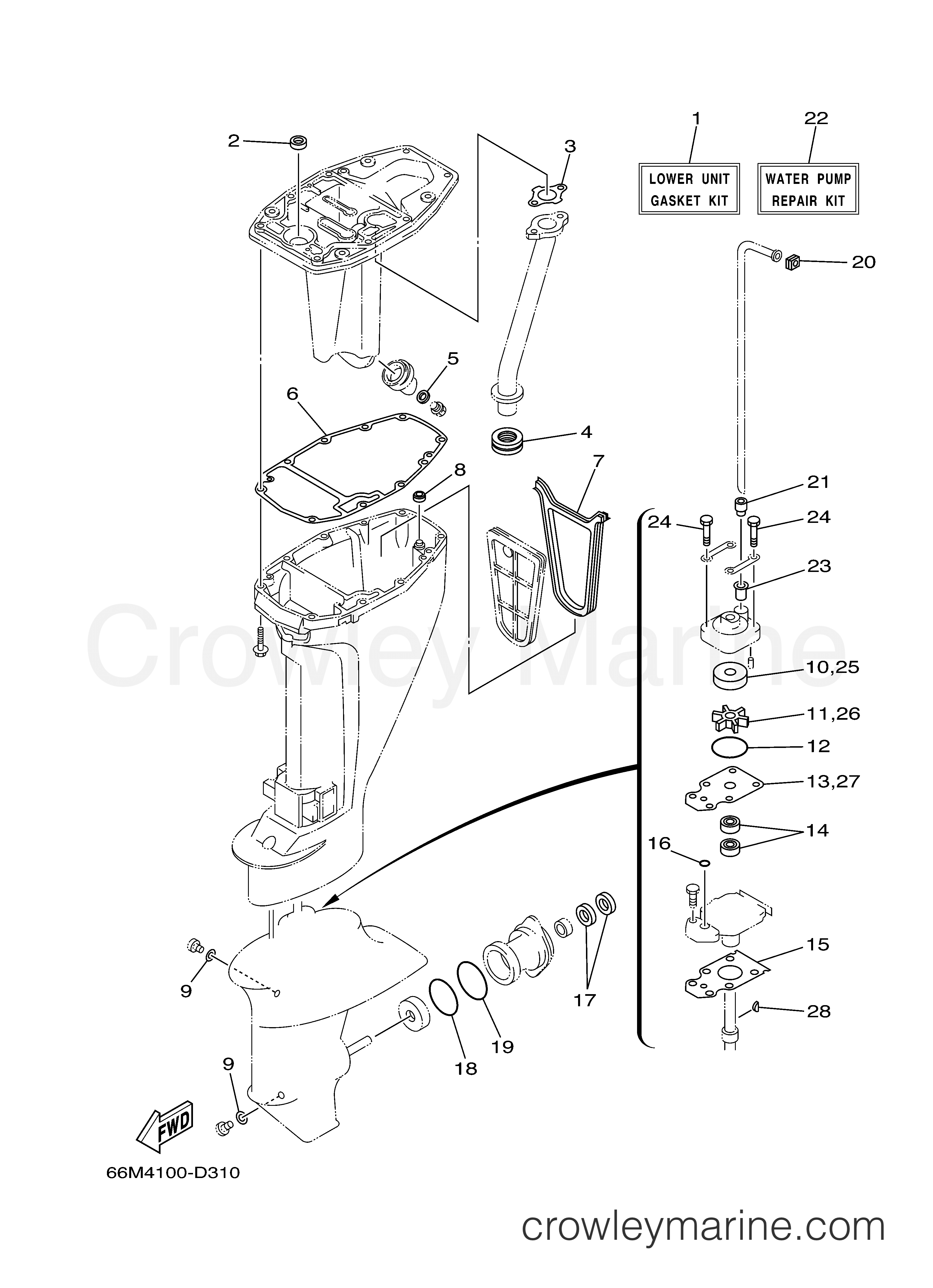

2005 Outboard 15hp - F15PLRD REPAIR KIT 3 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors F15PLRD - REPAIR KIT 3
Change View:
Lower Unit Gasket Kit
1
Yamaha Motors
Lower Unit Gasket Kit66M-W0001-21-00
Required: 1
LOWER UNIT GASKET KIT
Cross Ship
Leaves in 2-5 days
$177.20
$150.62
You save $26.58
More details
Exhaust Manifold Gasket
3
Yamaha Motors
Exhaust Manifold Gasket66M-41133-01-00
Required: 1
.GASKET, EXHAUST MANIFOLD 1
Cross Ship
Leaves in 2-5 days
$3.90
$3.32
You save $0.58
More details
Seal Ext
4
Yamaha Motors
Seal Ext6D4-41138-00-00
Required: 1
.SEAL, EXT 1
Cross Ship
Leaves in 2-5 days
$19.55
$16.62
You save $2.93
More details
Upper Casing Gasket
6
Yamaha Motors
Upper Casing Gasket66M-45113-00-00
Required: 1
.GASKET, UPPER CASING
Cross Ship
Leaves in 2-5 days
$15.20
$12.92
You save $2.28
More details
Upper Casing Gasket
7
Yamaha Motors
Upper Casing Gasket66M-45115-00-00
Required: 1
.GASKET, UPPER CASING
Cross Ship
Leaves in 2-5 days
$20.20
$17.17
You save $3.03
More details
Seal
8
Yamaha Motors
Seal66M-45128-00-00
Required: 1
.SEAL 2
Cross Ship
Leaves in 2-5 days
$6.15
$5.23
You save $0.92
More details
Lower Casing Packing
15
Yamaha Motors
Lower Casing Packing63V-45315-A0-00
Required: 1
.PACKING, LOWER CASING
Cross Ship
Leaves in 2-5 days
$15.65
$13.30
You save $2.35
More details
Bolt
24
Yamaha Motors
Bolt97080-08045-00
Required: 4
.BOLT
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
