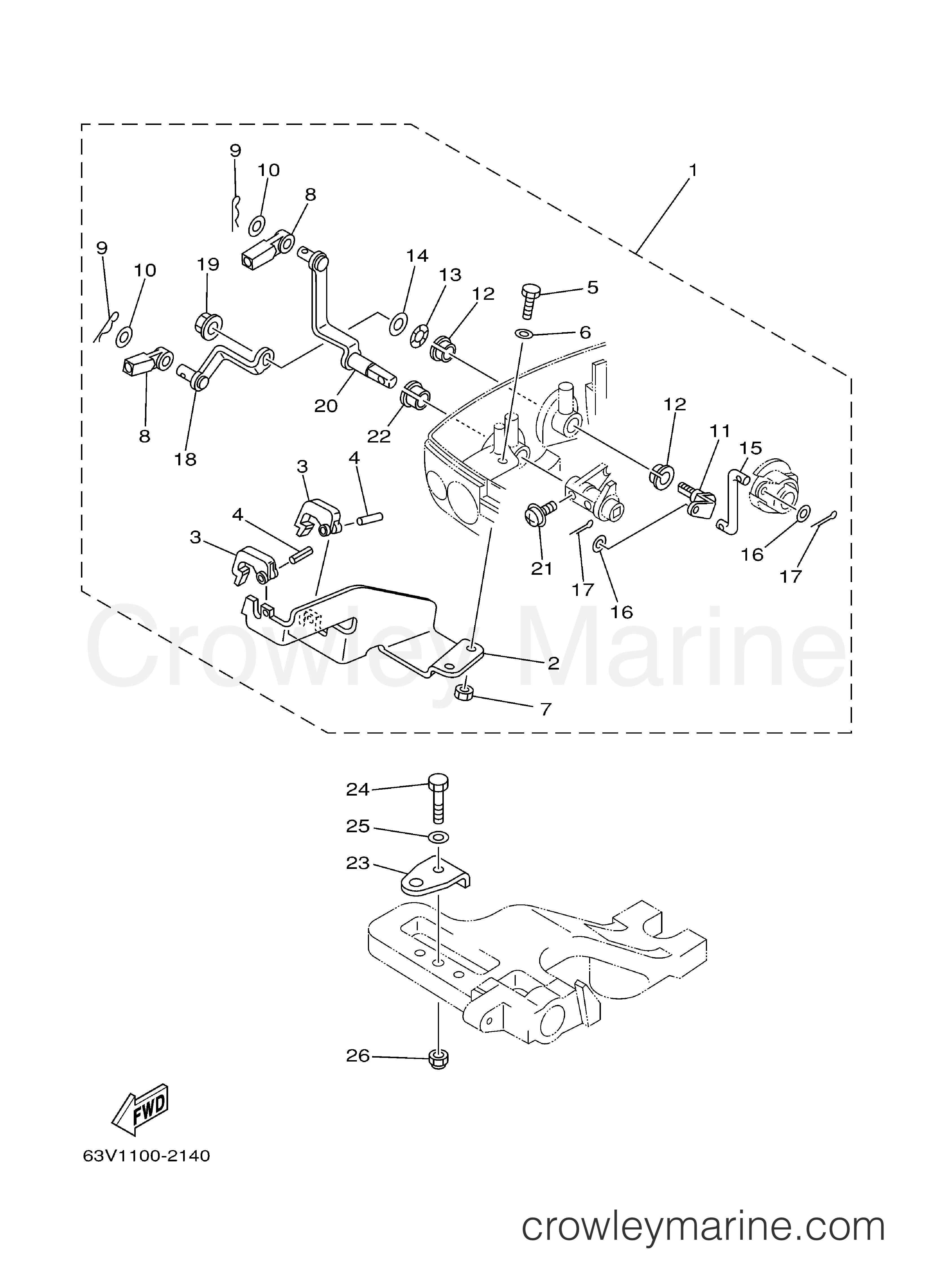

2005 Outboard 15hp - 15MSH REMO CON ATTACHMENT diagram
1
Yamaha Motors
Remote Control Attachment Assembly63V-48501-00-00
Required: 1
REMOTE CONT. ATTACHMENT ASSY.
$93.42
You save $16.48
2
Yamaha Motors
Remote Control Bracket63V-48531-00-00
Required: 1
.BRACKET, REMOTE CONTROL 1
$67.53
You save $11.92
3
Yamaha Motors
Cable Clamp682-48538-50-00
Required: 2
.CLAMP, CABLE 1
$12.54
You save $2.21
In stock
Only 1 remaining
$4.72
You save $0.83
$2.35
You save $0.41
6
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
.WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
7
Yamaha Motors
Hexagon Nut95380-06600-00
Required: 2
.NUT, HEXAGON
In stock
5+ in stock
$4.08
You save $0.72
8
Yamaha Motors
Remote Control Cable End6FM-48344-00-00
Required: 2
.CABLE END, REMOTE CONTROL
Supersedes: 663-48344-00-00
In stock
5+ in stock
$18.40
You save $3.25
In stock
5+ in stock
$1.32
You save $0.23
10
Yamaha Motors
Plate Washer90201-08M12-00
Required: 2
.WASHER, PLATE
$4.55
You save $0.80
11
Yamaha Motors
Throttle Control Lever63V-42154-00-00
Required: 1
.LEVER, THROTTLE CONTROL
$30.13
You save $5.32
In stock
Only 4 remaining
$10.67
You save $1.88
13
Yamaha Motors
Wave Washer90206-10M04-00
Required: 1
.WASHER, WAVE
In stock
Only 5 remaining
$6.29
You save $1.11
14
Yamaha Motors
Plate Washer90201-10M02-00
Required: 1
.WASHER, PLATE
In stock
Only 2 remaining
$3.91
You save $0.69
$7.14
You save $1.26
16
Yamaha Motors
Plate Washer90201-044H9-00
Required: 2
.WASHER, PLATE
Supersedes: 90201-04M06-00
$8.07
You save $1.42
In stock
Only 1 remaining
$1.69
You save $0.30
18
Yamaha Motors
Control Throttle Lever63V-48534-00-00
Required: 1
.THROTTLE LEVER, CONTROL
$22.06
You save $3.89
$10.03
You save $1.77
20
Yamaha Motors
Shiftcontrol Lever63V-48544-00-00
Required: 1
..LEVER, SHIFTCONTROL
$54.40
You save $9.60
21
Yamaha Motors
Screw With Washer97985-05212-00
Required: 1
.SCREW, WITH WASHER
Supersedes: 90159-05M25-00
$3.65
You save $0.65
$11.47
You save $2.02
23
Yamaha Motors
Steering Hook63V-48511-01-00
Required: 1
HOOK, STEERING
$9.78
You save $1.72
24
Yamaha Motors
Bolt97095-08035-00
Required: 1
BOLT
Supersedes: 97075-08035-00
In stock
5+ in stock
$4.67
You save $0.82
25
Yamaha Motors
Plate Washer92990-08600-00
Required: 1
WASHER
Supersedes: 92995-08600-00
In stock
5+ in stock
$2.29
You save $0.41
26
Yamaha Motors
Flange Nut95780-08300-00
Required: 1
NUT, SELF-LOCKING
Supersedes: 90185-08057-00
$10.03
You save $1.77
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
