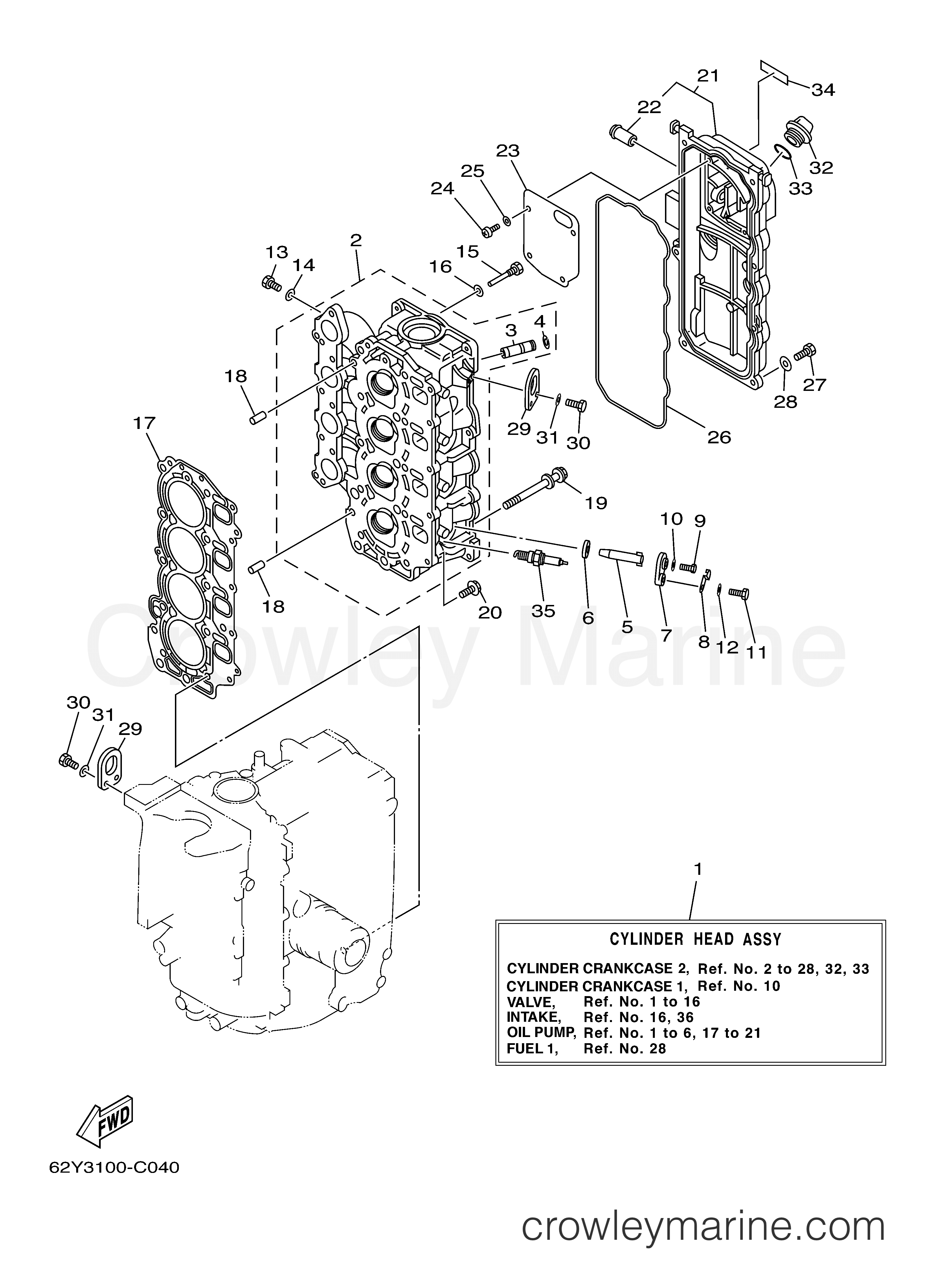

2004 Outboard 50hp - F50TLRC CYLINDER CRANKCASE 2 diagram
1
Yamaha Motors
Cylinder Head Assembly64J-W009A-04-9S
Required: 1
CYLINDER HEAD COMPLETE
Supersedes: 64J-W009A-01-1S
$2495.94
You save $440.46
2
Yamaha Motors
HEAD,CYLINDER 199999-03903-00
Required: 1
HEAD, CYLINDER 1
Supersedes: 62Y-11111-20-1S
$1465.14
You save $258.56
3
Yamaha Motors
Valve Guide62Y-11133-31-00
Required: 8
.GUIDE, VALVE 1
Supersedes: 62Y-11133-30-00
$36.34
You save $6.41
In stock
Only 2 remaining
$0.98
You save $0.17
In stock
5+ in stock
$9.69
You save $1.71
6
Yamaha Motors
Anode Grommet66M-11328-01-00
Required: 4
GROMMET, ANODE
Supersedes: 66M-11328-00-00
In stock
5+ in stock
$1.15
You save $0.20
In stock
Only 2 remaining
$9.10
You save $1.61
In stock
Only 3 remaining
$5.31
You save $0.94
In stock
Only 1 remaining
$1.49
You save $0.26
10
Yamaha Motors
Plate Washer92990-05600-00
Required: 4
WASHER
Supersedes: 92995-05600-00
In stock
Only 4 remaining
$0.68
You save $0.12
11
Yamaha Motors
Bolt97080-06020-00
Required: 4
BOLT
Supersedes: 97095-06020-00
In stock
5+ in stock
$3.82
You save $0.68
12
Yamaha Motors
Plate Washer92990-06600-00
Required: 4
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
$5.09
You save $0.90
In stock
Only 4 remaining
$7.31
You save $1.29
$28.04
You save $4.95
In stock
Only 4 remaining
$7.31
You save $1.29
17
Yamaha Motors
Cylinder Head Gasket62Y-11181-00-00
Required: 1
GASKET, CYLINDER HEAD 1
In stock
5+ in stock
$50.83
You save $8.97
In stock
Only 1 remaining
$5.61
You save $0.99
19
Yamaha Motors
Bolt with Washer90119-09M00-00
Required: 10
BOLT, WITH WASHER
In stock
Only 1 remaining
$15.72
You save $2.77
20
Yamaha Motors
Bolt with Washer90119-06MA3-00
Required: 5
BOLT, WITH WASHER
In stock
5+ in stock
$2.72
You save $0.48
21
Yamaha Motors
Cylinder Head Cover62Y-11191-02-9S
Required: 1
COVER, CYLINDER HEAD 1
Supersedes: 62Y-11191-01-1S
$105.10
You save $18.55
$14.11
You save $2.49
23
Yamaha Motors
Breather Cover62Y-11168-00-00
Required: 1
COVER, BREATHER
$4.80
You save $0.85
24
Yamaha Motors
Pan Head Screw98507-04010-00
Required: 4
SCREW, PAN HEAD
$3.02
You save $0.53
$1.57
You save $0.28
26
Yamaha Motors
Cylinder Seal62Y-11356-00-00
Required: 1
.SEAL, CYLINDER 2
In stock
Only 4 remaining
$15.94
You save $2.81
27
Yamaha Motors
Bolt97080-06020-00
Required: 7
BOLT
Supersedes: 97095-06020-00
In stock
5+ in stock
$3.82
You save $0.68
28
Yamaha Motors
Plate Washer92990-06600-00
Required: 7
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
29
Yamaha Motors
Engine Hanger62Y-11119-00-00
Required: 2
HANGER, ENGINE
$11.26
You save $1.99
30
Yamaha Motors
Bolt97080-06020-00
Required: 4
BOLT
Supersedes: 97095-06020-00
In stock
5+ in stock
$3.82
You save $0.68
31
Yamaha Motors
Plate Washer92990-06600-00
Required: 4
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
In stock
Only 2 remaining
$11.47
You save $2.03
33
Yamaha Motors
"O"-Ring93210-25070-00
Required: 1
.O-RING
Supersedes: 93210-24M79-00
$5.52
You save $0.97
In stock
Only 1 remaining
$4.89
You save $0.86
35
Yamaha Motors
NGK Spark Plug DPR6EA9DPR-6EA90-00-00
Required: 4
PLUG, SPARK (NGK DPR6EA-9)
Supersedes: 94701-00375-00
In stock
5+ in stock
$4.00
You save $0.71
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
