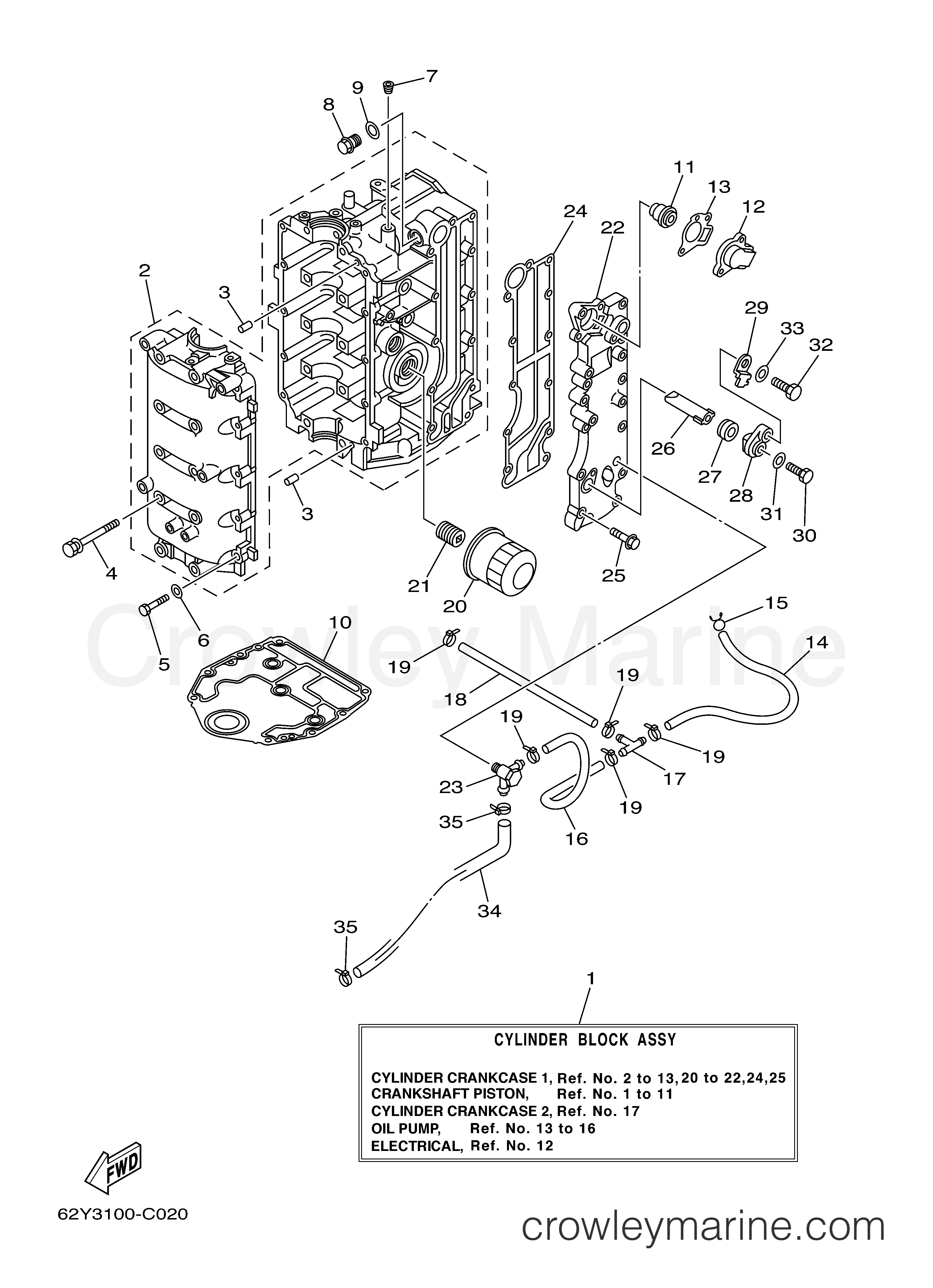

2004 Outboard 50hp - F50TLRC CYLINDER CRANKCASE 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors F50TLRC - CYLINDER CRANKCASE 1
Change View:
Cylinder Block Assembly
1
Yamaha Motors
Cylinder Block Assembly64J-W009B-02-1S
Required: 1
CYLINDER BLOCK ASSY
Cross Ship
Leaves in 2-5 days
$3017.25
$2564.66
You save $452.59
More details
CRANKCASE ASSY
2
Yamaha Motors
CRANKCASE ASSY62Y-1510A-00-00
Required: 1
CRANKCASE ASSY
Supersedes: 62Y-15100-20-1S
Cross Ship
Leaves in 2-5 days
$2386.20
$2028.27
You save $357.93
More details
PLUG, TAPER SCREW
7
Yamaha Motors
PLUG, TAPER SCREW90344-51007-00
Required: 1
PLUG, TAPER SCREW
Supersedes: 90344-51003-00
Cross Ship
Leaves in 2-5 days
$6.75
$5.74
You save $1.01
More details
Thermostat
11
Yamaha Motors
Thermostat6G8-12411-03-00
Required: 1
THERMOSTAT
Supersedes: 6G8-12411-02-00
Cross Ship
Leaves in 2-5 days
$45.60
$38.76
You save $6.84
More details
Clip
15
Yamaha Motors
Clip90467-08M18-00
Required: 1
CLIP
Cross Ship
Leaves in 2-5 days
$4.05
$3.44
You save $0.61
More details
Hose (L110)
16
Yamaha Motors
Hose (L110)90445-09068-00
Required: 1
HOSE (L110)
Cross Ship
Leaves in 2-5 days
$6.30
$5.35
You save $0.95
More details
Hose (L215)
18
Yamaha Motors
Hose (L215)90445-09095-00
Required: 1
HOSE (L215)
Cross Ship
Leaves in 2-5 days
$5.55
$4.72
You save $0.83
More details
Union Bolt
21
Yamaha Motors
Union Bolt90401-20M00-00
Required: 1
BOLT, UNION
Cross Ship
Leaves in 2-5 days
$15.80
$13.43
You save $2.37
More details
Exhaust Outer Cover
22
Yamaha Motors
Exhaust Outer Cover62Y-41113-20-1S
Required: 1
OUTER COVER, EXHAUST
Cross Ship
Leaves in 2-5 days
$185.60
$157.76
You save $27.84
More details
Exhaust Outer Cover Gasket
24
Yamaha Motors
Exhaust Outer Cover Gasket6C5-41114-00-00
Required: 1
GASKET, EXHAUST OUTER COVER
Supersedes: 62Y-41114-00-00
Cross Ship
Leaves in 2-5 days
$34.95
$29.71
You save $5.24
More details
Pipe
34
Yamaha Motors
Pipe62Y-24312-10-00
Required: 1
PIPE 2
Cross Ship
Leaves in 2-5 days
$19.05
$16.19
You save $2.86
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
