All diagrams for this model

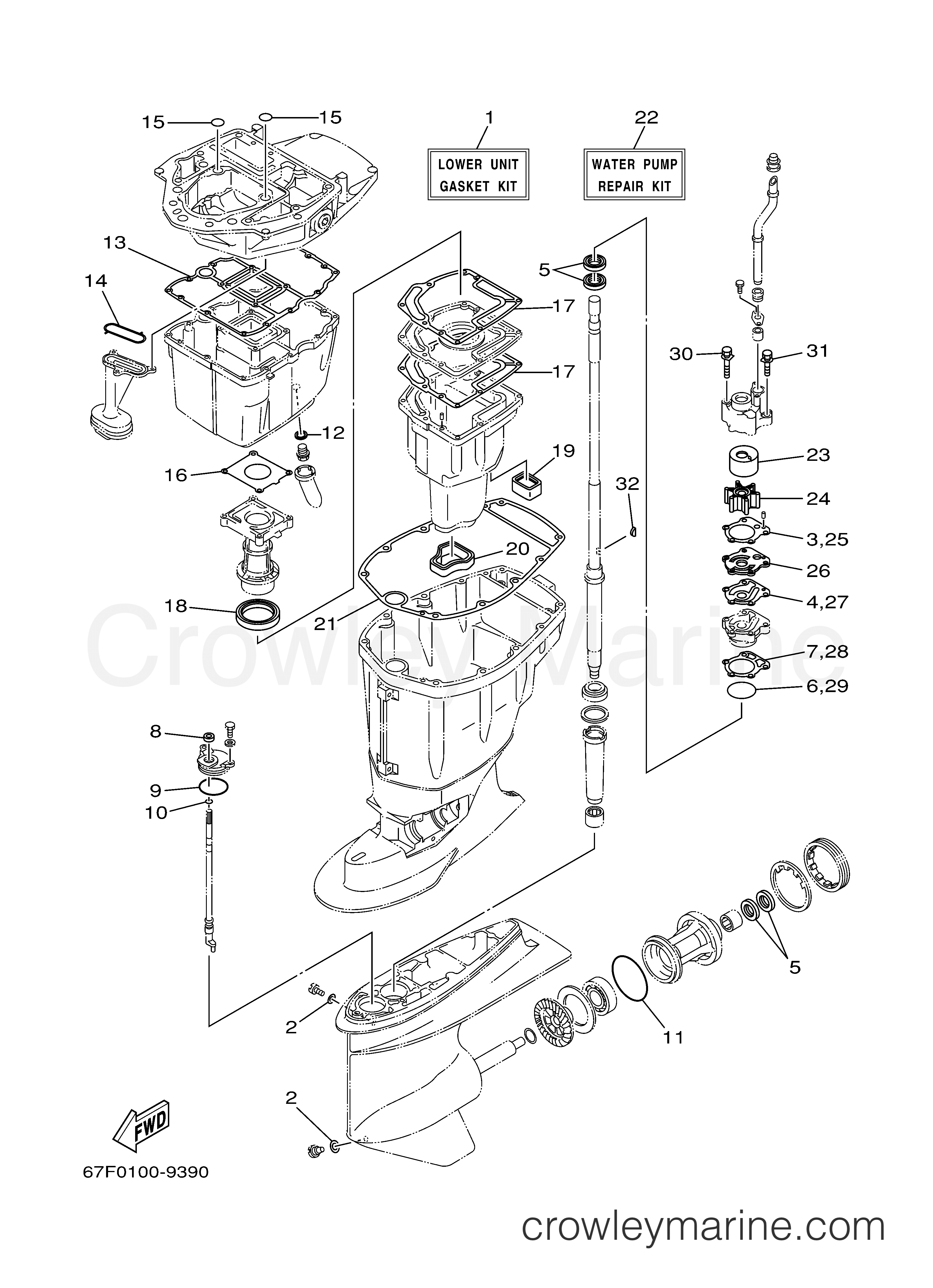

2003 Outboard 90hp - F90TLRB REPAIR KIT 3 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors F90TLRB - REPAIR KIT 3
Change View:
Oil Strainer Seal
14
Yamaha Motors
Oil Strainer Seal67F-13415-00-00
Required: 1
.SEAL, OIL STRAINER
Cross Ship
Leaves in 2-5 days
$10.65
$8.52
You save $2.13
More details
Exhaust Manifold Gasket
16
Yamaha Motors
Exhaust Manifold Gasket67F-41133-A1-00
Required: 1
.GASKET, EXHAUST MANIFOLD 1
Supersedes: 67F-41133-A0-00
Cross Ship
Leaves in 2-5 days
$11.90
$10.12
You save $1.79
More details
Exhaust Manifold Gasket
17
Yamaha Motors
Exhaust Manifold Gasket67F-41134-A0-00
Required: 2
.GASKET, EXHAUST MANIFOLD
Cross Ship
Leaves in 2-5 days
$15.95
$12.76
You save $3.19
More details
Seal Ext
18
Yamaha Motors
Seal Ext67F-41138-00-00
Required: 1
.SEAL, EXT 1
Cross Ship
Leaves in 2-5 days
$15.65
$13.30
You save $2.35
More details
Seal
19
Yamaha Motors
Seal67F-45127-00-00
Required: 1
.SEAL
Cross Ship
Leaves in 2-5 days
$7.90
$6.32
You save $1.58
More details
Muffler Gasket
20
Yamaha Motors
Muffler Gasket67F-45123-00-00
Required: 1
.GASKET, MUFFLER
Cross Ship
Leaves in 2-5 days
$23.05
$19.59
You save $3.46
More details
Upper Casing Gasket
21
Yamaha Motors
Upper Casing Gasket67F-45113-00-00
Required: 1
.GASKET, UPPER CASING
Cross Ship
Leaves in 2-5 days
$61.55
$49.24
You save $12.31
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
