All diagrams for this model

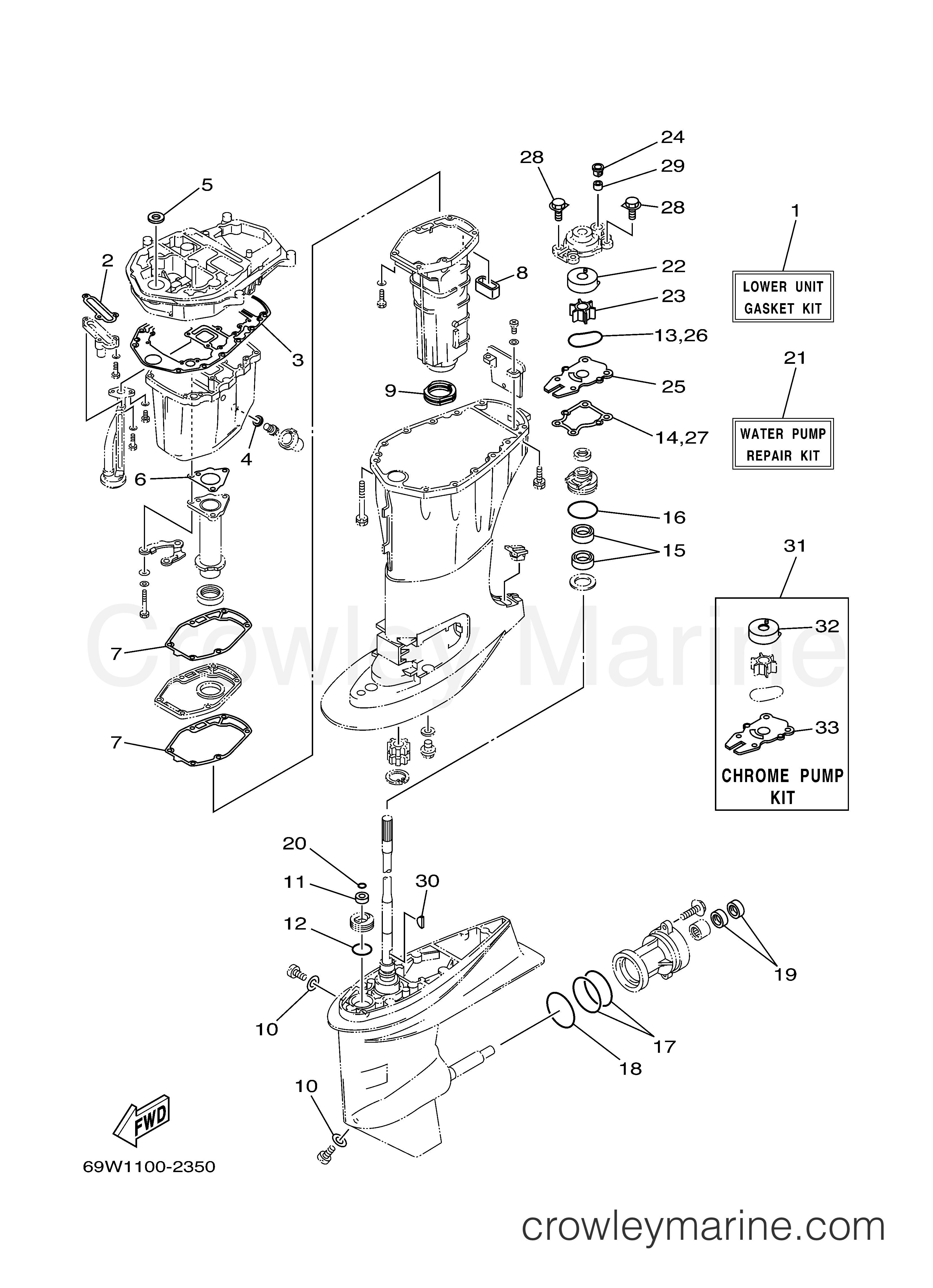

2003 Outboard 60hp - F60TLRB REPAIR KIT 3 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors F60TLRB - REPAIR KIT 3
Change View:
Lower Unit Gasket Kit
1
Yamaha Motors
Lower Unit Gasket Kit69W-W0001-20-00
Required: 1
LOWER UNIT GASKET KIT
Cross Ship
Leaves in 2-5 days
$186.40
$158.44
You save $27.96
More details
Oil Pan Gasket
3
Yamaha Motors
Oil Pan Gasket69W-15312-01-00
Required: 1
.GASKET, OIL PAN
Supersedes: 69W-15312-00-00
Cross Ship
Leaves in 2-5 days
$47.30
$40.21
You save $7.09
More details
Exhaust Manifold Gasket
6
Yamaha Motors
Exhaust Manifold Gasket64J-41133-10-00
Required: 1
.GASKET, EXHAUST MANIFOLD 1
Cross Ship
Leaves in 2-5 days
$9.10
$7.73
You save $1.37
More details
Shift Bracket Seal
8
Yamaha Motors
Shift Bracket Seal62Y-45127-01-00
Required: 1
.SEAL
Supersedes: 62Y-45127-00-00
Cross Ship
Leaves in 2-5 days
$2.85
$2.42
You save $0.43
More details
Muffler Gasket
9
Yamaha Motors
Muffler Gasket67C-45123-00-00
Required: 1
.GASKET, MUFFLER
Cross Ship
Leaves in 2-5 days
$15.55
$13.22
You save $2.33
More details
Water Pump Housing Cover
24
Yamaha Motors
Water Pump Housing Cover63D-44312-00-00
Required: 1
.COVER, WATER PUMP HOUSING
Cross Ship
Leaves in 2-5 days
$4.70
$4.00
You save $0.71
More details
Bolt With Washer
28
Yamaha Motors
Bolt With Washer90119-08M15-00
Required: 4
.BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$4.56
$3.88
You save $0.68
More details
Cartridge Insert
32
Yamaha Motors
Cartridge Insert63D-44322-40-00
Required: 1
.INSERT, CARTRIDGE
Cross Ship
Leaves in 2-5 days
$85.40
$72.59
You save $12.81
More details
Cartridge Outer Plate
33
Yamaha Motors
Cartridge Outer Plate63D-44323-40-00
Required: 1
.OUTER PLATE, CARTRIDGE
Cross Ship
Leaves in 2-5 days
$84.65
$71.95
You save $12.70
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
