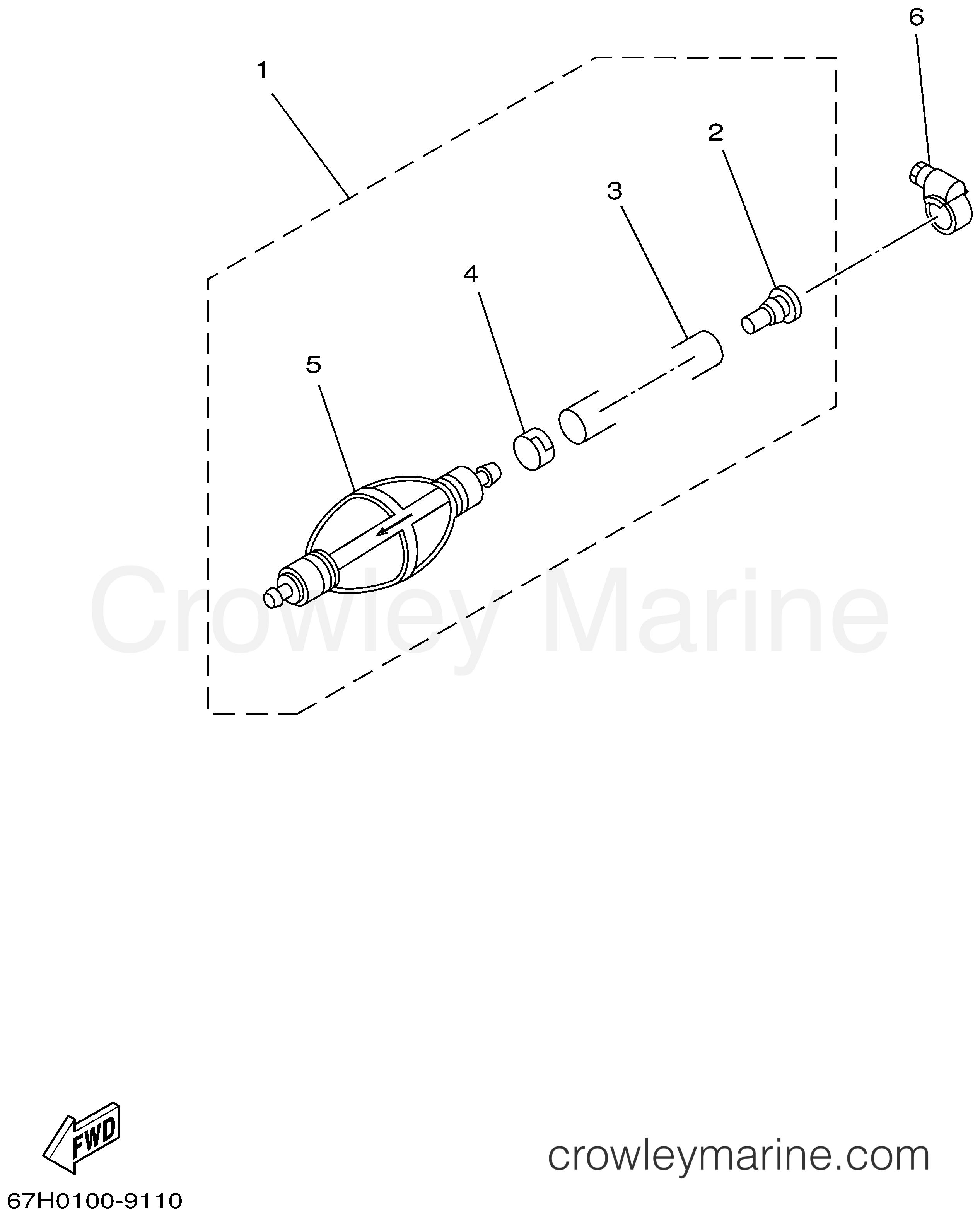

2002 Outboard 200hp - VX200TLRA FUEL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors VX200TLRA - FUEL 2
Change View:
Grommet
2
Yamaha Motors
Grommet90480-06M19-00
Required: 1
.GROMMET
Cross Ship
Leaves in 2-5 days
$5.35
$4.55
You save $0.80
More details
.HOSE (L2050)
3
Yamaha Motors
.HOSE (L2050)90445-13M01-00
Required: 1
.HOSE (L2050)
Cross Ship
Leaves in 2-5 days
$28.65
$24.35
You save $4.30
More details
Band
4
Yamaha Motors
Band6E5-24351-51-00
Required: 1
.BAND 1
Cross Ship
Leaves in 2-5 days
$10.40
$8.32
You save $2.08
More details
