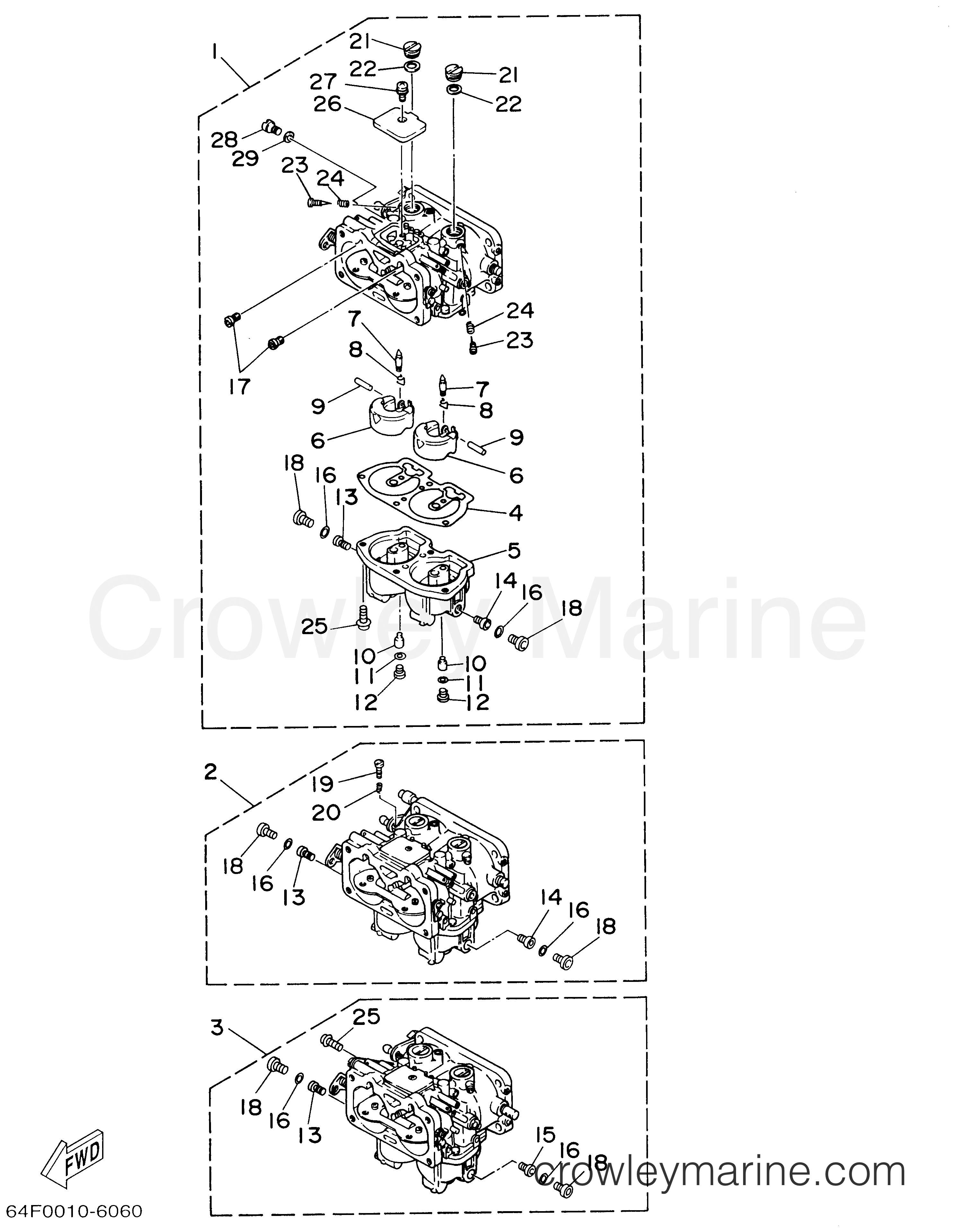

2002 Outboard 150hp - 150TXRA CARBURETOR diagram
1
Yamaha Motors
Obsolete Yamaha Part64C-14301-S2-00
Required: 1
CARBURETOR ASSY 1
Supersedes: 64C-14301-S1-00
$523.60
You save $92.40
2
Yamaha Motors
Carburetor Assembly64C-14302-S2-00
Required: 1
CARBURETOR ASSY 2
Supersedes: 64C-14302-S1-00
$515.19
You save $90.91
3
Yamaha Motors
CARBURETOR Assembly 364C-14303-S1-00
Required: 1
CARBURETOR ASSY 3
$544.47
You save $96.08
4
Yamaha Motors
Float Chamber Gasket64D-14384-01-00
Required: 3
.GASKET, FLOAT CHAMBER
In stock
5+ in stock
$66.22
You save $11.69
5
Yamaha Motors
Float Chamber Body64D-14381-10-00
Required: 3
.BODY, FLOAT CHAMBER
$152.11
You save $26.84
In stock
5+ in stock
$30.47
You save $5.38
7
Yamaha Motors
Needle Valve6E5-14546-00-00
Required: 6
.VALVE, NEEDLE
In stock
5+ in stock
$17.17
You save $3.03
$10.84
You save $1.91
In stock
Only 5 remaining
$7.69
You save $1.36
10
Yamaha Motors
Air Slow (#84) Jet64D-1492F-42-00
Required: 6
.JET, AIR SLOW (#84)
$28.77
You save $5.08
In stock
Only 5 remaining
$6.71
You save $1.19
12
Yamaha Motors
Drain Valve64D-14394-00-00
Required: 6
.VALVE, DRAIN
In stock
Only 2 remaining
$19.55
You save $3.45
13
Yamaha Motors
Main (#142) Jet64D-1492E-71-00
Required: 3
.JET, MAIN (#142)
In stock
5+ in stock
$33.70
You save $5.95
14
Yamaha Motors
Main (#142) Jet64D-1492E-71-00
Required: 2
.JET, MAIN (#142)
In stock
5+ in stock
$33.70
You save $5.95
15
Yamaha Motors
Main (#142) Jet64D-1492E-71-00
Required: 1
.JET, MAIN (#142)
In stock
5+ in stock
$33.70
You save $5.95
In stock
Only 2 remaining
$5.44
You save $0.96
17
Yamaha Motors
Slow Air Bleed Jet (#60)61A-1492H-12-00
Required: 6
.JET, SLOW AIR BLEED (#60)
$27.29
You save $4.82
18
Yamaha Motors
Drain Screw61A-14383-01-00
Required: 6
.SCREW, DRAIN
$9.69
You save $1.71
19
Yamaha Motors
Throttle Screw6E5-14321-00-00
Required: 1
.SCREW, THROTTLE
In stock
Only 1 remaining
$35.79
You save $6.31
20
Yamaha Motors
Throttle Spring6J8-14334-00-00
Required: 1
.SPRING, THROTTLE
In stock
Only 1 remaining
$6.54
You save $1.16
In stock
Only 4 remaining
$12.15
You save $2.14
In stock
Only 1 remaining
$4.93
You save $0.87
23
Yamaha Motors
Air Adjusting Screw6E5-14323-03-00
Required: 6
.SCREW, AIR ADJUSTING
In stock
Only 2 remaining
$20.82
You save $3.68
24
Yamaha Motors
Air Adjusting Spring6E5-14223-00-00
Required: 6
.SPRING, AIR ADJUSTING
In stock
Only 2 remaining
$7.69
You save $1.36
25
Yamaha Motors
Screw With Washer97980-05116-00
Required: 12
.SCREW, WITH WASHER
$4.29
You save $0.76
$14.96
You save $2.64
27
Yamaha Motors
Screw With Washer97980-05108-00
Required: 3
.SCREW, WITH WASHER
$4.08
You save $0.72
28
Yamaha Motors
Flat Head Screw6E5-14324-00-00
Required: 3
.SCREW, FLAT HEAD
$9.69
You save $1.71
29
Yamaha Motors
Gasket6J8-14995-00-00
Required: 3
.GASKET
Supersedes: 6J8-14959-00-00
In stock
5+ in stock
$3.02
You save $0.53
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
