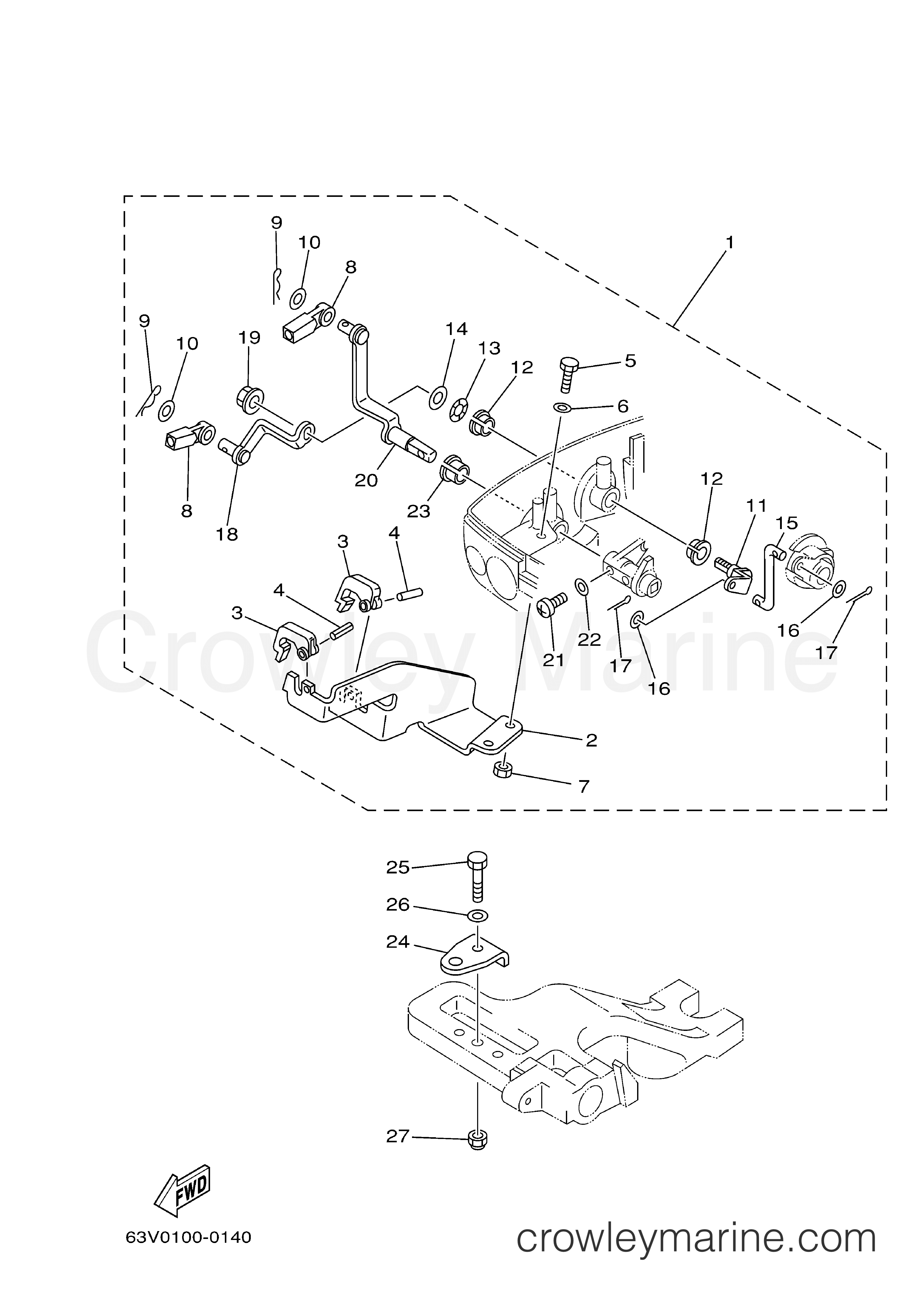

2000 Outboard 15hp - 15MLHY REMO CON ATTACHMENT diagram
1
Yamaha Motors
Remote Control Attachment Assembly63V-48501-00-00
Required: 1
REMOTE CONT. ATTACHMENT ASSY.
$93.42
You save $16.48
2
Yamaha Motors
Remote Control Bracket63V-48531-00-00
Required: 1
.BRACKET, REMOTE CONTROL 1
$67.53
You save $11.92
3
Yamaha Motors
Cable Clamp682-48538-50-00
Required: 2
.CLAMP, CABLE 1
$12.54
You save $2.21
4
Yamaha Motors
Spring Pin91690-30012-00
Required: 2
.PIN, CLEVIS
Supersedes: 91590-30012-00
In stock
Only 1 remaining
$4.44
You save $1.11
$2.21
You save $0.55
6
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
.WASHER, PLATE
In stock
5+ in stock
$2.28
You save $0.57
7
Yamaha Motors
Hexagon Nut95380-06600-00
Required: 2
.NUT, HEXAGON
In stock
5+ in stock
$3.84
You save $0.96
8
Yamaha Motors
Remote Control Cable End6FM-48344-00-00
Required: 2
.CABLE END, REMOTE CONTROL
Supersedes: 663-48344-00-00
In stock
5+ in stock
$17.32
You save $4.33
In stock
5+ in stock
$1.24
You save $0.31
10
Yamaha Motors
Plate Washer90201-08M12-00
Required: 2
.WASHER, PLATE
$4.55
You save $0.80
11
Yamaha Motors
Throttle Control Lever63V-42154-00-00
Required: 1
.LEVER, THROTTLE CONTROL
$30.13
You save $5.32
-50%
In stock
Only 4 remaining
$6.28
You save $6.28
13
Yamaha Motors
Wave Washer90206-10M04-00
Required: 1
.WASHER, WAVE
In stock
Only 5 remaining
$5.92
You save $1.48
14
Yamaha Motors
Plate Washer90201-10M02-00
Required: 1
.WASHER, PLATE
In stock
Only 2 remaining
$3.68
You save $0.92
$7.14
You save $1.26
16
Yamaha Motors
Plate Washer90201-044H9-00
Required: 2
.WASHER, PLATE
Supersedes: 90201-04M06-00
$8.07
You save $1.42
In stock
Only 1 remaining
$1.69
You save $0.30
18
Yamaha Motors
Control Throttle Lever63V-48534-00-00
Required: 1
.THROTTLE LEVER, CONTROL
$22.06
You save $3.89
$9.44
You save $2.36
20
Yamaha Motors
Shiftcontrol Lever63V-48544-00-00
Required: 1
.LEVER, SHIFTCONTROL
$54.40
You save $9.60
21
Yamaha Motors
Pan Head Screw97885-05012-00
Required: 1
.SCREW, PAN HEAD
$2.44
You save $0.61
22
Yamaha Motors
Plate Washer92990-05600-00
Required: 1
.WASHER, PLATE
In stock
Only 3 remaining
$0.64
You save $0.16
$11.47
You save $2.02
24
Yamaha Motors
Steering Hook63V-48511-01-00
Required: 1
HOOK, STEERING
$9.78
You save $1.72
25
Yamaha Motors
Bolt97095-08035-00
Required: 1
BOLT
Supersedes: 97075-08035-00
In stock
5+ in stock
$4.39
You save $1.10
26
Yamaha Motors
Plate Washer92990-08600-00
Required: 1
WASHER
Supersedes: 92995-08600-00
In stock
5+ in stock
$2.16
You save $0.54
27
Yamaha Motors
Flange Nut95780-08300-00
Required: 1
NUT, SELF-LOCKING
Supersedes: 90185-08057-00
$9.44
You save $2.36
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
