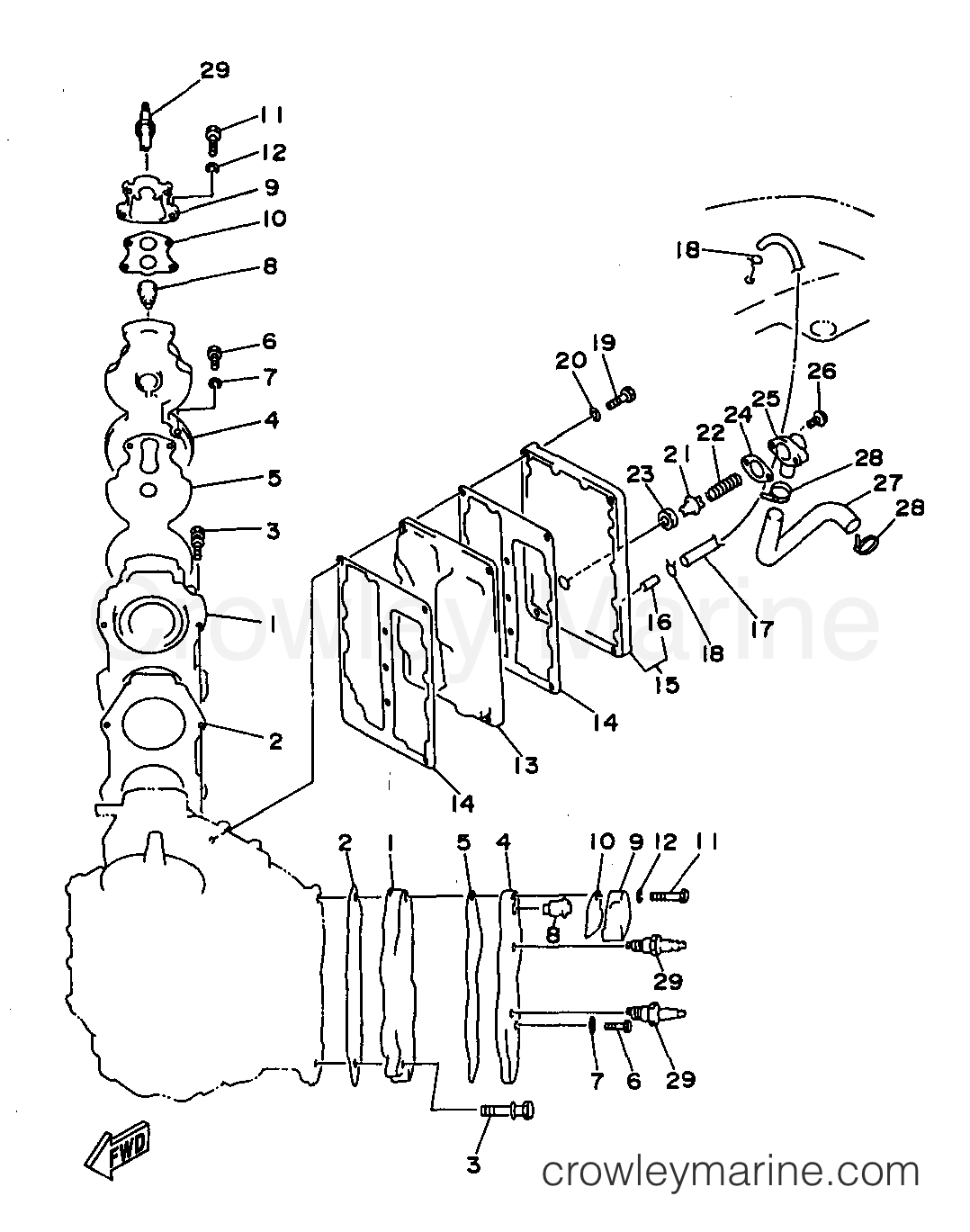

1997 Outboard 130hp - L130TXRV CYLINDER CRANKCASE 2 diagram
1
Yamaha Motors
Cylinder Head6E5-11111-10-1S
Required: 2
HEAD, CYLINDER 1
Supersedes: 6E5-11111-10-94
In stock
Only 3 remaining
$171.49
You save $30.26
1
Yamaha Motors
Cylinder Head6L1-11111-00-1S
Required: 2
HEAD, CYLINDER 1
Supersedes: 6L1-11111-00-94
$91.93
You save $16.22
2
Yamaha Motors
Cylinder Head Gasket6E5-11181-A2-00
Required: 2
.GASKET, CYLINDER HEAD 1
Supersedes: 6E5-11181-A1-00
In stock
5+ in stock
$40.80
You save $7.20
3
Yamaha Motors
Bolt with Washer90119-08M07-00
Required: 20
BOLT, WITH WASHER
Supersedes: 90119-08M21-00
In stock
5+ in stock
$4.67
You save $0.82
4
Yamaha Motors
Cylinder Head Cover6E5-11191-01-1S
Required: 2
COVER, CYLINDER HEAD 1
Supersedes: 6E5-11191-01-9M
$42.37
You save $7.48
5
Yamaha Motors
Head Cover Gasket6E5-11193-A0-00
Required: 2
.GASKET, HEAD COVER 1
In stock
5+ in stock
$36.21
You save $6.39
6
Yamaha Motors
Bolt97080-06030-00
Required: 24
BOLT
Supersedes: 97095-06030-00
In stock
5+ in stock
$3.49
You save $0.62
7
Yamaha Motors
Plate Washer92990-06600-00
Required: 24
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
8
Yamaha Motors
Thermostat6E5-12411-30-00
Required: 2
THERMOSTAT
Supersedes: 6E5-12411-20-00
In stock
5+ in stock
$27.50
You save $4.85
9
Yamaha Motors
Thermostat Cover6G5-12413-00-1S
Required: 2
COVER, THERMOSTAT
Supersedes: 6G5-12413-00-9M
In stock
5+ in stock
$16.11
You save $2.84
10
Yamaha Motors
Cover Gasket688-12414-A1-00
Required: 2
.GASKET, COVER
In stock
5+ in stock
$4.97
You save $0.88
In stock
5+ in stock
$2.38
You save $0.42
12
Yamaha Motors
Plate Washer92990-06600-00
Required: 8
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
13
Yamaha Motors
Exhaust Inner Cover6E5-41111-00-1S
Required: 1
INNER COVER, EXHAUST
Supersedes: 6E5-41111-00-9M
$76.46
You save $13.49
13
Yamaha Motors
Exhaust Inner Cover6L1-41111-00-1S
Required: 1
INNER COVER, EXHAUST
Supersedes: 6L1-41111-00-9M
$47.60
You save $8.40
14
Yamaha Motors
Exhaust Inner Cover Gasket6E5-41112-A1-00
Required: 2
GASKET, EXHAUST INNER COVER
In stock
5+ in stock
$21.89
You save $3.86
15
Yamaha Motors
Exhaust Outer Cover6N7-41113-00-1S
Required: 1
OUTER COVER, EXHAUST
Supersedes: 6N7-41113-00-9M
$79.69
You save $14.06
16
Yamaha Motors
Joint Pipe652-24461-00-00
Required: 1
.PIPE, JOINT 4
In stock
Only 1 remaining
$4.93
You save $0.87
In stock
5+ in stock
$11.43
You save $2.02
In stock
5+ in stock
$8.07
You save $1.42
In stock
5+ in stock
$2.25
You save $0.40
In stock
5+ in stock
$2.42
You save $0.43
21
Yamaha Motors
PRESSURE CONTROL VALVE6G5-12416-00-00
Required: 1
VALVE, PRESSURE CONTROL
In stock
Only 5 remaining
$11.69
You save $2.06
22
Yamaha Motors
Compression Spring90501-16M11-00
Required: 1
SPRING, COMPRESSION
In stock
5+ in stock
$6.46
You save $1.14
In stock
5+ in stock
$3.74
You save $0.66
In stock
5+ in stock
$4.80
You save $0.85
25
Yamaha Motors
Bypass Cover6G5-11372-00-1S
Required: 1
NIPPLE, HOSE (6G5-11372-00-9M)
Supersedes: 6G5-11372-00-5B
In stock
5+ in stock
$16.06
You save $2.84
26
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06520-00
Required: 2
BOLT, WITH WASHER
Supersedes: 97595-06520-00
In stock
Only 2 remaining
$2.59
You save $0.46
In stock
Only 5 remaining
$19.80
You save $3.50
28
Yamaha Motors
Clamp90465-13M39-00
Required: 2
CLAMP
Supersedes: 90465-13M36-00
In stock
Only 3 remaining
$4.68
You save $0.83
29
Yamaha Motors
Spark Plug NGK BR8HS-10BR8-HS100-00-00
Required: 4
PLUG, SPARK (NGK BR8HS-10)
Supersedes: NGK-BR8HS-10-00
In stock
5+ in stock
$4.00
You save $0.71
29
Yamaha Motors
BR9HS-10 NGK 4551BR9-HS100-00-00
Required: 4
PLUG, SPARK (NGK BR9HS-10)
Supersedes: NGK-BR9HS-10-00
In stock
5+ in stock
$4.00
You save $0.71
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
