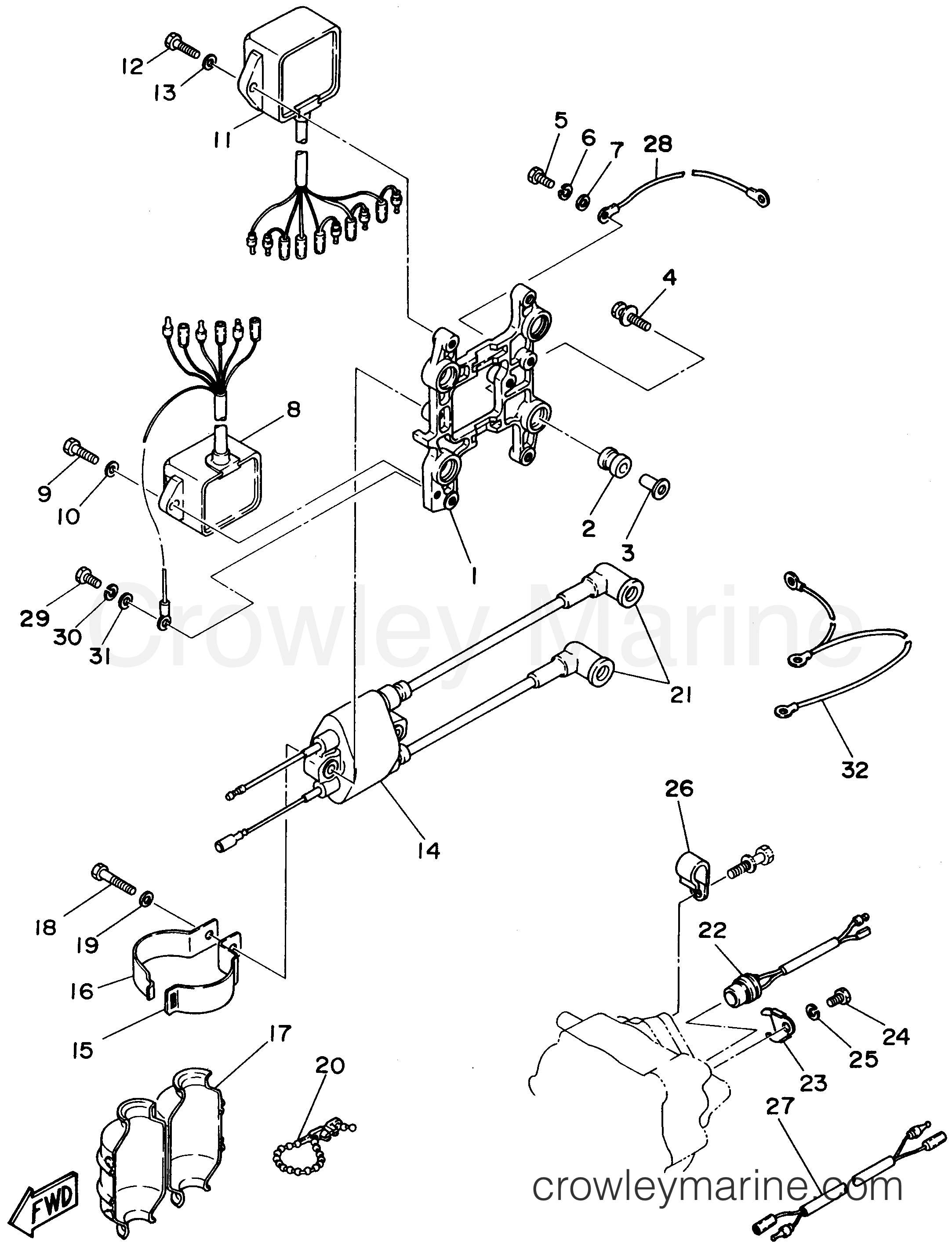

1996 Outboard 48hp - E48MLHU ELECTRICAL 1 diagram
$59.37
You save $10.48
2
Yamaha Motors
DAMPER, IGNITION C6A0-82317-01-00
Required: 4
DAMPER, IGNITION COIL
Supersedes: 6A0-82317-00-00
In stock
Only 5 remaining
$5.68
You save $1.42
3
Yamaha Motors
Collar90387-06119-00
Required: 4
PIPE
Supersedes: 624-42542-00-00
In stock
5+ in stock
$3.84
You save $0.96
4
Yamaha Motors
Bolt with Washer90119-06289-00
Required: 4
BOLT, WITH WASHER
Supersedes: 90119-06M90-00
In stock
Only 2 remaining
$2.92
You save $0.73
5
Yamaha Motors
.BOLT97313-06012-00
Required: 1
BOLT
Supersedes: 97013-06012-00
In stock
Only 2 remaining
$1.68
You save $0.42
6
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, SPRING
In stock
5+ in stock
$2.76
You save $0.69
7
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.28
You save $0.57
8
Yamaha Motors
C.D.I. UNIT ASSY696-85540-11-00
Required: 1
C.D.I. UNIT ASSY
$215.73
You save $38.07
9
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06520-00
Required: 2
BOLT, WITH WASHER
Supersedes: 97595-06520-00
In stock
Only 2 remaining
$2.44
You save $0.61
10
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.28
You save $0.57
11
Yamaha Motors
Control Unit Assembly696-85590-10-00
Required: 1
CONTROL UNIT ASSY
$242.12
You save $42.73
12
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06520-00
Required: 2
BOLT, WITH WASHER
Supersedes: 97595-06520-00
In stock
Only 2 remaining
$2.44
You save $0.61
13
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.28
You save $0.57
14
Yamaha Motors
Obsolete Yamaha Part680-85570-09-00
Required: 1
IGNITION COIL ASSEMBLY
Supersedes: 6E7-85570-19-00
$237.87
You save $41.98
15
Yamaha Motors
Lead Clamp696-81443-00-00
Required: 1
CLAMP, LEAD 1
$15.21
You save $2.69
16
Yamaha Motors
Lead Clamp696-81444-00-00
Required: 1
CLAMP, LEAD 2
$15.21
You save $2.69
17
Yamaha Motors
Terminal Cover696-81916-00-00
Required: 1
COVER, TERMINAL
$14.19
You save $2.51
18
Yamaha Motors
Bolt97080-06030-00
Required: 2
BOLT
Supersedes: 97095-06030-00
In stock
5+ in stock
$3.28
You save $0.82
19
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.28
You save $0.57
20
Yamaha Motors
Clamp90464-20031-00
Required: 1
CLAMP
Supersedes: 90464-20M04-00
$2.17
You save $0.38
In stock
5+ in stock
$12.52
You save $3.13
22
Yamaha Motors
Thermo Switch Assembly688-82560-00-00
Required: 1
THERMO SWITCH ASSY
$41.52
You save $7.33
$8.20
You save $1.45
24
Yamaha Motors
Bolt97085-06010-00
Required: 1
BOLT, HEXAGON
Supersedes: 97313-06010-00
In stock
Only 5 remaining
$1.19
You save $0.30
25
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, SPRING
In stock
5+ in stock
$2.76
You save $0.69
$6.37
You save $1.12
27
Yamaha Motors
Wire Lead Extension6H4-82553-00-00
Required: 1
WIRE, LEAD
Supersedes: 696-82531-00-00
$13.30
You save $2.35
28
Yamaha Motors
Earth Lead Wire662-82519-00-00
Required: 1
WIRE, EARTH LEAD
$13.18
You save $2.33
29
Yamaha Motors
.BOLT97313-06012-00
Required: 1
BOLT
Supersedes: 97013-06012-00
In stock
Only 2 remaining
$1.68
You save $0.42
30
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, SPRING
In stock
5+ in stock
$2.76
You save $0.69
31
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.28
You save $0.57
32
Yamaha Motors
Earth Lead Wire697-82519-00-00
Required: 1
WIRE, EARTH LEAD
$12.07
You save $2.13
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
