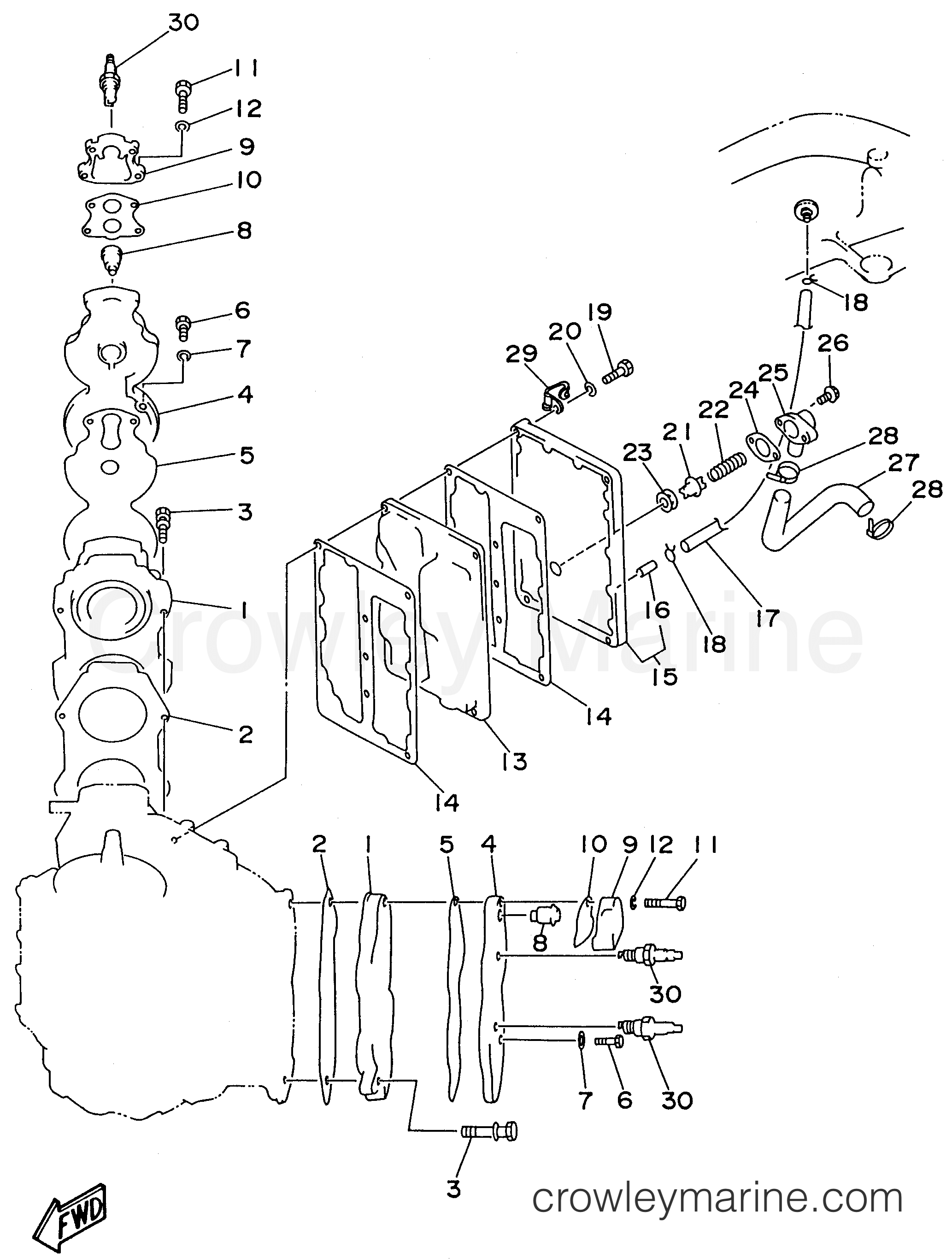

1996 Outboard 115hp - C115TXRU CYLINDER CRANKCASE 2 diagram
1
Yamaha Motors
Cylinder Head6E5-11111-10-1S
Required: 2
HEAD, CYLINDER 1
Supersedes: 6E5-11111-10-94
In stock
Only 3 remaining
$160.95
You save $40.80
2
Yamaha Motors
Cylinder Head Gasket6E5-11181-A2-00
Required: 2
GASKET, CYLINDER HEAD 1
Supersedes: 6E5-11181-A0-00
In stock
5+ in stock
$38.40
You save $9.60
3
Yamaha Motors
Bolt with Washer90119-08M07-00
Required: 20
BOLT, WITH WASHER
Supersedes: 90119-08M21-00
In stock
5+ in stock
$4.39
You save $1.10
4
Yamaha Motors
Cylinder Head Cover6E5-11191-01-1S
Required: 2
COVER, CYLINDER HEAD 1
Supersedes: 6E5-11191-01-9M
$39.88
You save $9.97
5
Yamaha Motors
Head Cover Gasket6E5-11193-A0-00
Required: 2
.GASKET, HEAD COVER 1
In stock
5+ in stock
$34.08
You save $8.52
6
Yamaha Motors
Bolt97080-06030-00
Required: 24
BOLT
Supersedes: 97095-06030-00
In stock
5+ in stock
$3.28
You save $0.82
7
Yamaha Motors
Plate Washer92990-06600-00
Required: 24
WASHER, PLATE
In stock
5+ in stock
$2.28
You save $0.57
8
Yamaha Motors
Thermostat6E5-12411-30-00
Required: 2
THERMOSTAT
Supersedes: 6E5-12411-20-00
In stock
5+ in stock
$25.88
You save $6.47
9
Yamaha Motors
Thermostat Cover6G5-12413-00-1S
Required: 2
COVER, THERMOSTAT
Supersedes: 6G5-12413-00-9M
In stock
5+ in stock
$15.16
You save $3.79
10
Yamaha Motors
Cover Gasket688-12414-A1-00
Required: 2
.GASKET, COVER
In stock
5+ in stock
$4.68
You save $1.17
11
Yamaha Motors
Bolt97095-06040-00
Required: 8
BOLT, HEXAGON
Supersedes: 97313-06040-00
In stock
5+ in stock
$2.24
You save $0.56
12
Yamaha Motors
Plate Washer92990-06600-00
Required: 8
WASHER, PLATE
In stock
5+ in stock
$2.28
You save $0.57
13
Yamaha Motors
Exhaust Inner Cover6E5-41111-00-1S
Required: 1
INNER COVER, EXHAUST
Supersedes: 6E5-41111-00-9M
$71.96
You save $17.99
14
Yamaha Motors
Exhaust Inner Cover Gasket6E5-41112-A1-00
Required: 2
GASKET, EXHAUST INNER COVER
In stock
5+ in stock
$20.60
You save $5.15
15
Yamaha Motors
Exhaust Outer Cover6N7-41113-00-1S
Required: 1
OUTER COVER, EXHAUST
Supersedes: 6N7-41113-00-9M
$75.00
You save $18.75
16
Yamaha Motors
Joint Pipe652-24461-00-00
Required: 1
.PIPE, JOINT 4
In stock
Only 1 remaining
$4.64
You save $1.16
In stock
5+ in stock
$10.76
You save $2.69
In stock
5+ in stock
$7.59
You save $1.90
In stock
5+ in stock
$2.12
You save $0.53
In stock
5+ in stock
$2.28
You save $0.57
21
Yamaha Motors
PRESSURE CONTROL VALVE6G5-12416-00-00
Required: 1
VALVE, PRESSURE CONTROL
In stock
Only 5 remaining
$11.00
You save $2.75
22
Yamaha Motors
Compression Spring90501-16M11-00
Required: 1
SPRING, COMPRESSION
In stock
5+ in stock
$6.08
You save $1.52
In stock
5+ in stock
$3.52
You save $0.88
In stock
5+ in stock
$4.52
You save $1.13
25
Yamaha Motors
Bypass Cover6G5-11372-00-1S
Required: 1
NIPPLE, HOSE (6G5-11372-00-9M)
Supersedes: 6G5-11372-00-5B
In stock
5+ in stock
$15.12
You save $3.78
26
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06520-00
Required: 2
BOLT, WITH WASHER
Supersedes: 97595-06520-00
In stock
Only 2 remaining
$2.44
You save $0.61
In stock
Only 5 remaining
$18.64
You save $4.66
28
Yamaha Motors
Clamp90465-13M39-00
Required: 2
CLAMP
Supersedes: 90465-13M36-00
In stock
Only 3 remaining
$4.40
You save $1.10
$10.29
You save $1.81
30
Yamaha Motors
NGK B8HS-10 SCREW TOP SPARK PLUGB8H-S1000-00-00
Required: 4
PLUG, SPARK (NGK B8HS-10)
Supersedes: NGK-B8HS1-00-00
In stock
5+ in stock
$3.76
You save $0.94
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
